Serie PF
NETZWERK-KUNSTSTOFFGEHÄUSE
- Schutzart: IP40
- Betriebstemperatur: -10°C ~ +60°C
- Insgesamt 41 verschiedene Größen zur Auswahl verfügbar.
- Flach gestaltetes Kunststoffgehäuse mit abnehmbaren Platten.
- Hergestellt aus flammhemmendem ABS UL94V-0 und erhältlich in den Farben Cremeweiß und Dunkelgrau.
- Ausgestattet mit integrierten Befestigungsdomen für die Leiterplattenmontage.
- Geeignet für WLAN-Access-Points, Messgeräte, Steuerungen und verschiedene andere Anwendungen.
Flach gestaltetes Kunststoffgehäuse mit abnehmbaren Platten. Ausgestattet mit integrierten Befestigungsdomen für die Leiterplattenmontage.
Geeignet für WLAN-Access-Points, Messgeräte, Steuerungen und verschiedene andere Anwendungen.
41 verschiedene Größen in den Farben Cremeweiß und Dunkelgrau sind verfügbar.

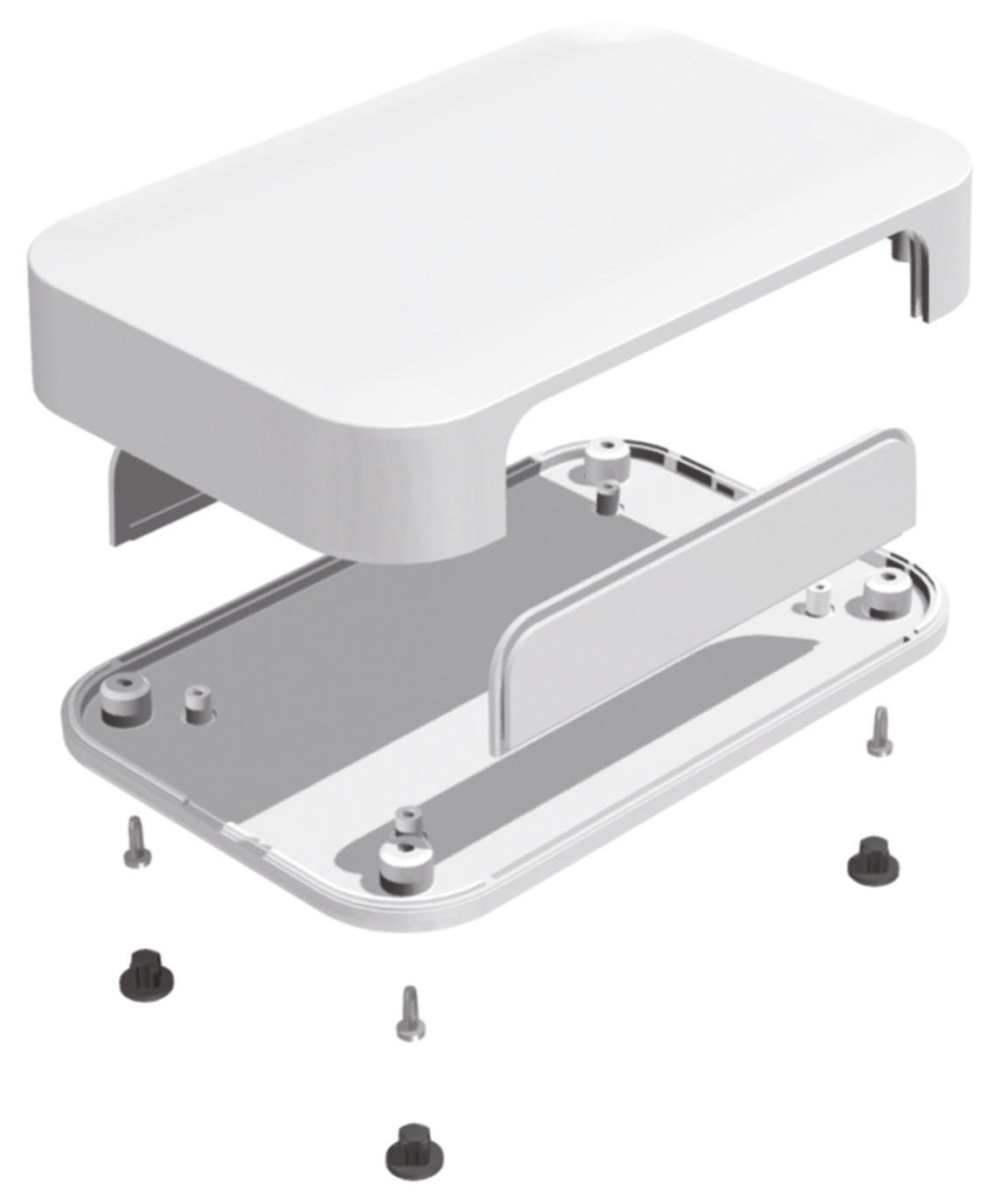

Komponenten
| No. | Part name | Pcs | Material | Color / Finish |
|---|---|---|---|---|
| 1 | Top cover | 1 | ABS UL94V-0 | Off-white • Dark gray |
| 2 | Bottom cover | 1 | ABS UL94V-0 | Off-white • Dark gray |
| 3 | Panel | 2 | ABS UL94V-0 | Off-white • Dark gray |
| 4 | Self-tapping screw | 4 | Steel | Nickel plated |
| 5 | Rubber feet* | 4 | Elastomer UL94HB | Dark gray |
- Gummifüße sind bei den Modellen PF8-□-5, PF8-□-8, PF8-3-13 nicht enthalten.
Abmessungen
Art.-Nr. / Abmessungen
| Product no. | External dimensions | Internal dimensions | Color / Similar matching | Weight (g) | ||||
|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||
| PF8-2-5D | 80 | 22.5 | 50 | 55.5 | 13.5 | 42.8 | Dark gray / Munsell N3 | 36.2 |
| PF8-2-5W | 80 | 22.5 | 50 | 55.5 | 13.5 | 42.8 | Off-white / Munsell N8.75 | 36.2 |
| PF8-2-8D | 80 | 22.5 | 80 | 55.5 | 13.5 | 72.8 | Dark gray / Munsell N3 | 53.3 |
| PF8-2-8W | 80 | 22.5 | 80 | 55.5 | 13.5 | 72.8 | Off-white / Munsell N8.75 | 53.3 |
| PF8-3-5D | 80 | 30 | 50 | 55.5 | 21 | 42.3 | Dark gray / Munsell N3 | 41.6 |
| PF8-3-5W | 80 | 30 | 50 | 55.5 | 21 | 42.3 | Off-white / Munsell N8.75 | 41.6 |
| PF8-3-8D | 80 | 30 | 80 | 55.5 | 21 | 72.3 | Dark gray / Munsell N3 | 60.1 |
| PF8-3-8W | 80 | 30 | 80 | 55.5 | 21 | 72.3 | Off-white / Munsell N8.75 | 60.1 |
| PF8-3-13D | 80 | 30 | 125 | 55.5 | 21 | 117.3 | Dark gray / Munsell N3 | 87.3 |
| PF8-3-13W | 80 | 30 | 125 | 55.5 | 21 | 117.3 | Off-white / Munsell N8.75 | 87.3 |
| PF10-2-7D | 100 | 22.5 | 67 | 67.4 | 11.1 | 58.4 | Dark gray / Munsell N3 | 60 |
| PF10-2-7W | 100 | 22.5 | 67 | 67.4 | 11.1 | 58.4 | Off-white / Munsell N8.75 | 60 |
| PF10-2-10D | 100 | 22.5 | 100 | 67.4 | 11.1 | 91.4 | Dark gray / Munsell N3 | 82.9 |
| PF10-2-10W | 100 | 22.5 | 100 | 67.4 | 11.1 | 91.4 | Off-white / Munsell N8.75 | 82.9 |
| PF10-2-15D | 100 | 22.5 | 150 | 67.4 | 11.1 | 141.4 | Dark gray / Munsell N3 | 120.2 |
| PF10-2-15W | 100 | 22.5 | 150 | 67.4 | 11.1 | 141.4 | Off-white / Munsell N8.75 | 120.2 |
| PF10-4-7D | 100 | 35 | 67 | 67.4 | 23.6 | 57.5 | Dark gray / Munsell N3 | 65 |
| PF10-4-7W | 100 | 35 | 67 | 67.4 | 23.6 | 57.5 | Off-white / Munsell N8.75 | 65 |
| PF10-4-10D | 100 | 35 | 100 | 67.4 | 23.6 | 90.5 | Dark gray / Munsell N3 | 97.1 |
| PF10-4-10W | 100 | 35 | 100 | 67.4 | 23.6 | 90.5 | Off-white / Munsell N8.75 | 97.1 |
| PF10-4-15D | 100 | 35 | 150 | 67.4 | 23.6 | 140.5 | Dark gray / Munsell N3 | 132.6 |
| PF10-4-15W | 100 | 35 | 150 | 67.4 | 23.6 | 140.5 | Off-white / Munsell N8.75 | 132.6 |
| PF10-6-15D | 100 | 55 | 150 | 67.4 | 43.6 | 139.1 | Dark gray / Munsell N3 | 169.1 |
| PF10-6-15W | 100 | 55 | 150 | 67.4 | 43.6 | 139.1 | Off-white / Munsell N8.75 | 169.1 |
| PF13-3-9D | 125 | 25 | 85 | 92.4 | 13.5 | 76.2 | Dark gray / Munsell N3 | 90.8 |
| PF13-3-9W | 125 | 25 | 85 | 92.4 | 13.5 | 76.2 | Off-white / Munsell N8.75 | 90.8 |
| PF13-3-13D | 125 | 25 | 125 | 92.4 | 13.5 | 116.2 | Dark gray / Munsell N3 | 127.5 |
| PF13-3-13W | 125 | 25 | 125 | 92.4 | 13.5 | 116.2 | Off-white / Munsell N8.75 | 127.5 |
| PF13-3-19D | 125 | 25 | 190 | 92.4 | 13.5 | 181.2 | Dark gray / Munsell N3 | 186.8 |
| PF13-3-19W | 125 | 25 | 190 | 92.4 | 13.5 | 181.2 | Off-white / Munsell N8.75 | 186.8 |
| PF13-4-9D | 125 | 40 | 85 | 92.4 | 28.5 | 75.2 | Dark gray / Munsell N3 | 108.4 |
| PF13-4-9W | 125 | 40 | 85 | 92.4 | 28.5 | 75.2 | Off-white / Munsell N8.75 | 108.4 |
| PF13-4-13D | 125 | 40 | 125 | 92.4 | 28.5 | 115.2 | Dark gray / Munsell N3 | 151.4 |
| PF13-4-13W | 125 | 40 | 125 | 92.4 | 28.5 | 115.2 | Off-white / Munsell N8.75 | 151.4 |
| PF13-4-19D | 125 | 40 | 190 | 92.4 | 28.5 | 180.2 | Dark gray / Munsell N3 | 214.9 |
| PF13-4-19W | 125 | 40 | 190 | 92.4 | 28.5 | 180.2 | Off-white / Munsell N8.75 | 214.9 |
| PF13-6-19D | 125 | 60 | 190 | 92.4 | 48.5 | 178.8 | Dark gray / Munsell N3 | 250.4 |
| PF13-6-19W | 125 | 60 | 190 | 92.4 | 48.5 | 178.8 | Off-white / Munsell N8.75 | 250.4 |
| PF15-3-10D | 150 | 30 | 100 | 112.4 | 17.8 | 90 | Dark gray / Munsell N3 | 145.5 |
| PF15-3-10W | 150 | 30 | 100 | 112.4 | 17.8 | 90 | Off-white / Munsell N8.75 | 145.5 |
| PF15-3-15D | 150 | 30 | 150 | 112.4 | 17.8 | 140 | Dark gray / Munsell N3 | 207.5 |
| PF15-3-15W | 150 | 30 | 150 | 112.4 | 17.8 | 140 | Off-white / Munsell N8.75 | 207.5 |
| PF15-5-10D | 150 | 45 | 100 | 112.4 | 32.8 | 88.9 | Dark gray / Munsell N3 | 166 |
| PF15-5-10W | 150 | 45 | 100 | 112.4 | 32.8 | 88.9 | Off-white / Munsell N8.75 | 166 |
| PF15-5-15D | 150 | 45 | 150 | 112.4 | 32.8 | 138.9 | Dark gray / Munsell N3 | 233.5 |
| PF15-5-15W | 150 | 45 | 150 | 112.4 | 32.8 | 138.9 | Off-white / Munsell N8.75 | 233.5 |
| PF18-4-12D | 175 | 35 | 120 | 132.4 | 22.4 | 110.3 | Dark gray / Munsell N3 | 188.7 |
| PF18-4-12W | 175 | 35 | 120 | 132.4 | 22.4 | 110.3 | Off-white / Munsell N8.75 | 188.7 |
| PF18-4-18D | 175 | 35 | 175 | 132.4 | 22.4 | 165.3 | Dark gray / Munsell N3 | 266.8 |
| PF18-4-18W | 175 | 35 | 175 | 132.4 | 22.4 | 165.3 | Off-white / Munsell N8.75 | 266.8 |
| PF18-5-12D | 175 | 50 | 120 | 132.4 | 37.4 | 109.3 | Dark gray / Munsell N3 | 213.6 |
| PF18-5-12W | 175 | 50 | 120 | 132.4 | 37.4 | 109.3 | Off-white / Munsell N8.75 | 213.6 |
| PF18-5-18D | 175 | 50 | 175 | 132.4 | 37.4 | 164.3 | Dark gray / Munsell N3 | 302.1 |
| PF18-5-18W | 175 | 50 | 175 | 132.4 | 37.4 | 164.3 | Off-white / Munsell N8.75 | 302.1 |
| PF20-4-13D | 200 | 40 | 135 | 151.6 | 27.3 | 124.4 | Dark gray / Munsell N3 | 264 |
| PF20-4-13W | 200 | 40 | 135 | 151.6 | 27.3 | 124.4 | Off-white / Munsell N8.75 | 264 |
| PF20-4-20D | 200 | 40 | 200 | 151.6 | 27.3 | 189.4 | Dark gray / Munsell N3 | 368.5 |
| PF20-4-20W | 200 | 40 | 200 | 151.6 | 27.3 | 189.4 | Off-white / Munsell N8.75 | 368.5 |
| PF20-6-13D | 200 | 60 | 135 | 151.6 | 47.3 | 123 | Dark gray / Munsell N3 | 302.5 |
| PF20-6-13W | 200 | 60 | 135 | 151.6 | 47.3 | 123 | Off-white / Munsell N8.75 | 302.5 |
| PF20-6-20D | 200 | 60 | 200 | 151.6 | 47.3 | 188 | Dark gray / Munsell N3 | 417 |
| PF20-6-20W | 200 | 60 | 200 | 151.6 | 47.3 | 188 | Off-white / Munsell N8.75 | 417 |
| PF24-4-17D | 240 | 42.5 | 165 | 187.6 | 29.5 | 154.5 | Dark gray / Munsell N3 | 370.4 |
| PF24-4-17W | 240 | 42.5 | 165 | 187.6 | 29.5 | 154.5 | Off-white / Munsell N8.75 | 370.4 |
| PF24-4-24D | 240 | 42.5 | 240 | 187.6 | 29.5 | 229.5 | Dark gray / Munsell N3 | 521.4 |
| PF24-4-24W | 240 | 42.5 | 240 | 187.6 | 29.5 | 229.5 | Off-white / Munsell N8.75 | 521.4 |
| PF24-6-17D | 240 | 60 | 165 | 187.6 | 47 | 153.2 | Dark gray / Munsell N3 | 408.8 |
| PF24-6-17W | 240 | 60 | 165 | 187.6 | 47 | 153.2 | Off-white / Munsell N8.75 | 408.8 |
| PF24-6-24D | 240 | 60 | 240 | 187.6 | 47 | 228.2 | Dark gray / Munsell N3 | 568.7 |
| PF24-6-24W | 240 | 60 | 240 | 187.6 | 47 | 228.2 | Off-white / Munsell N8.75 | 568.7 |
| PF28-5-20D | 280 | 45 | 200 | 223.6 | 31.4 | 189.3 | Dark gray / Munsell N3 | 564.1 |
| PF28-5-20W | 280 | 45 | 200 | 223.6 | 31.4 | 189.3 | Off-white / Munsell N8.75 | 564.1 |
| PF28-7-20D | 280 | 65 | 200 | 223.6 | 51.4 | 187.9 | Dark gray / Munsell N3 | 618.4 |
| PF28-7-20W | 280 | 65 | 200 | 223.6 | 51.4 | 187.9 | Off-white / Munsell N8.75 | 618.4 |
| PF28-9-20D | 280 | 90 | 200 | 223.6 | 76.4 | 186.2 | Dark gray / Munsell N3 | 709.2 |
| PF28-9-20W | 280 | 90 | 200 | 223.6 | 76.4 | 186.2 | Off-white / Munsell N8.75 | 709.2 |
| PF32-5-23D | 320 | 45 | 225 | 259.6 | 31.3 | 214.3 | Dark gray / Munsell N3 | 697.1 |
| PF32-5-23W | 320 | 45 | 225 | 259.6 | 31.3 | 214.3 | Off-white / Munsell N8.75 | 697.1 |
| PF32-7-23D | 320 | 70 | 225 | 259.6 | 56.3 | 212.6 | Dark gray / Munsell N3 | 782.1 |
| PF32-7-23W | 320 | 70 | 225 | 259.6 | 56.3 | 212.6 | Off-white / Munsell N8.75 | 782.1 |
| PF32-10-23D | 320 | 100 | 225 | 259.6 | 86.3 | 210.5 | Dark gray / Munsell N3 | 899.8 |
| PF32-10-23W | 320 | 100 | 225 | 259.6 | 86.3 | 210.5 | Off-white / Munsell N8.75 | 899.8 |
