Serie TW
MEHRZWECK-KUNSTSTOFFGEHÄUSE
- Schutzart: IP40
- Betriebstemperatur: -10°C ~ +60°C
- Universelles Kunststoffgehäuse mit Schraubbefestigung.
- 26 Größen sind in 2 Farben erhältlich: Schwarz (ABS UL94HB) und Off-White (ABS UL94V-0).
- Geeignet für Messinstrumente, Prüfgeräte, drahtlose Kommunikationsgeräte, medizinische Geräte und mehr.
Universelles Kunststoffgehäuse mit Schraubbefestigung.
26 Größen sind in 2 Farben erhältlich: Schwarz (ABS UL94HB) und Off-White (ABS UL94V-0).
Geeignet für Messinstrumente, Prüfgeräte, drahtlose Kommunikationsgeräte, medizinische Geräte und mehr.
Farbtyp
| Series | Code | Color | Screw |
|---|---|---|---|
| TW | B | Black | Black trivalent chromate |
| TWN | W | Off-white | Nickel plated |

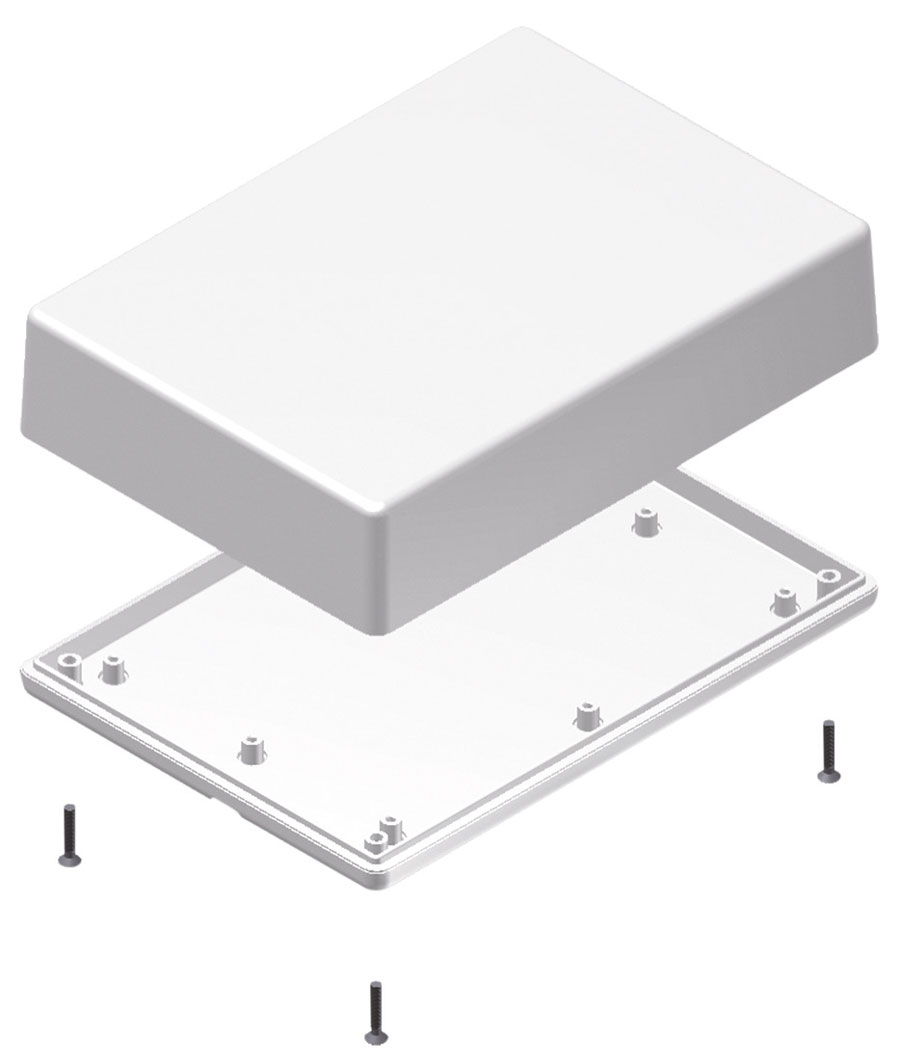

Komponenten
| No. | Part name | Pcs | Material : Color / Finish |
|---|---|---|---|
| 1 | Cover | 1 | TW : ABSUL94HB / Black |
| TWN : ABS UL94V-0 / Off-white | |||
| 2 | Bottom base | 1 | TW : ABSUL94HB / Black |
| TWN : ABS UL94V-0 / Off-white | |||
| 3 | Self-tapping screw | 2 or 4 | TW : Steel / Black trivalent chromate |
| TWN : Steel / Nickel plated |
Abmessungen
Art.-Nr. / Abmessungen
| Product no. | External dimensions | Internal dimensions | Material | Color | Weight (g) | Inventory status | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||||
| TW4-2-5B | 35 | 20 | 50 | 28.2 | 12 | 32.6 | ABS (UL94HB) | Black | 13.5 | |
| TW4-2-6B | 35 | 20 | 60 | 28.2 | 12 | 42.6 | ABS (UL94HB) | Black | 15.5 | |
| TW4-2-8B | 40.3 | 20 | 80.3 | 33.5 | 12 | 62.5 | ABS (UL94HB) | Black | 22 | |
| TW5-2-5B | 50 | 15 | 50 | 42.8 | 7 | 31.9 | ABS (UL94HB) | Black | 18 | |
| TW5-2-7B | 50 | 15 | 70 | 43.2 | 7 | 52.9 | ABS (UL94HB) | Black | 22 | |
| TW5-3-5B | 50 | 25 | 50 | 42.8 | 17 | 31.9 | ABS (UL94HB) | Black | 22 | |
| TW5-3-7B | 50 | 27.5 | 70 | 43.2 | 19.5 | 52.9 | ABS (UL94HB) | Black | 29 | |
| TW5-3-9B | 45 | 25 | 90 | 37.7 | 16 | 69.4 | ABS (UL94HB) | Black | 30.5 | |
| TW5-3-10B | 50 | 30 | 100 | 42.4 | 20.8 | 80.8 | ABS (UL94HB) | Black | 45.5 | |
| TW5-4-7B | 50 | 40 | 70 | 42.5 | 32 | 52.9 | ABS (UL94HB) | Black | 35 | |
| TW7-2-11B | 70 | 20 | 105 | 61.2 | 10.5 | 83 | ABS (UL94HB) | Black | 56.5 | |
| TW7-3-13B | 65 | 25.6 | 130 | 55.3 | 14.3 | 105 | ABS (UL94HB) | Black | 76 | |
| TW7-4-11B | 70 | 35 | 105 | 61.2 | 25.5 | 83 | ABS (UL94HB) | Black | 70 | |
| TW7-5-11B | 70 | 50 | 105 | 61.1 | 40.5 | 83 | ABS (UL94HB) | Black | 83 | |
| TW7-5-13B | 65 | 50.1 | 130 | 55.3 | 38.8 | 105 | ABS (UL94HB) | Black | 100 | |
| TW8-2-8B | 80 | 20 | 80 | 71.6 | 10.5 | 59 | ABS (UL94HB) | Black | 49 | |
| TW8-4-8B | 80 | 40 | 80 | 71.6 | 30.5 | 59 | ABS (UL94HB) | Black | 65 | |
| TW9-4-17B | 85.5 | 35.5 | 170 | 75.7 | 24 | 143 | ABS (UL94HB) | Black | 133 | |
| TW9-6-17B | 85.5 | 60.5 | 170 | 75.7 | 49 | 143 | ABS (UL94HB) | Black | 168 | |
| TW11-5-22B | 110 | 45.3 | 220 | 100.1 | 33.8 | 191 | ABS (UL94HB) | Black | 223 | |
| TW11-8-22B | 110 | 75.3 | 220 | 99.3 | 63.8 | 191 | ABS (UL94HB) | Black | 277 | |
| TW13-3-13B | 125 | 25 | 125 | 114.5 | 13.7 | 100 | ABS (UL94HB) | Black | 135 | |
| TW13-3-18B | 125 | 25 | 175 | 114.5 | 13.7 | 148 | ABS (UL94HB) | Black | 184.5 | |
| TW13-5-13B | 125 | 45 | 125 | 114.5 | 33.7 | 100 | ABS (UL94HB) | Black | 165.5 | |
| TW13-5-18B | 125 | 45 | 175 | 114.5 | 33.7 | 148 | ABS (UL94HB) | Black | 218 | |
| TW13-7-18B | 125 | 65 | 175 | 114.2 | 53.7 | 148 | ABS (UL94HB) | Black | 254 | |
| TWN4-2-5W | 35 | 20 | 50 | 28.2 | 12 | 32.6 | ABS (UL94V-0) | Off-white | 16.5 | |
| TWN4-2-6W | 35 | 20 | 60 | 28.2 | 12 | 42.6 | ABS (UL94V-0) | Off-white | 18 | |
| TWN4-2-8W | 40.3 | 20 | 80.3 | 33.5 | 12 | 62.5 | ABS (UL94V-0) | Off-white | 26 | |
| TWN5-2-5W | 50 | 15 | 50 | 42.8 | 7 | 31.9 | ABS (UL94V-0) | Off-white | 20 | |
| TWN5-2-7W | 50 | 15 | 70 | 43.2 | 7 | 52.9 | ABS (UL94V-0) | Off-white | 24.5 | |
| TWN5-3-5W | 50 | 25 | 50 | 42.8 | 17 | 31.9 | ABS (UL94V-0) | Off-white | 26 | |
| TWN5-3-7W | 50 | 27.5 | 70 | 43.2 | 19.5 | 52.9 | ABS (UL94V-0) | Off-white | 33 | |
| TWN5-3-9W | 45 | 25 | 90 | 37.7 | 16 | 69.4 | ABS (UL94V-0) | Off-white | 35 | |
| TWN5-3-10W | 50 | 30 | 100 | 42.4 | 20.8 | 80.8 | ABS (UL94V-0) | Off-white | 46.5 | |
| TWN5-4-7W | 50 | 40 | 70 | 42.5 | 32 | 52.9 | ABS (UL94V-0) | Off-white | 39.5 | |
| TWN7-2-11W | 70 | 20 | 105 | 61.2 | 10.5 | 83 | ABS (UL94V-0) | Off-white | 64.5 | |
| TWN7-3-13W | 65 | 25.6 | 130 | 55.3 | 14.3 | 105 | ABS (UL94V-0) | Off-white | 85 | |
| TWN7-4-11W | 70 | 35 | 105 | 61.2 | 25.5 | 83 | ABS (UL94V-0) | Off-white | 80 | |
| TWN7-5-11W | 70 | 50 | 105 | 61.1 | 40.5 | 83 | ABS (UL94V-0) | Off-white | 94.5 | |
| TWN7-5-13W | 65 | 50.1 | 130 | 55.3 | 38.8 | 105 | ABS (UL94V-0) | Off-white | 115.5 | |
| TWN8-2-8W | 80 | 20 | 80 | 71.6 | 10.5 | 59 | ABS (UL94V-0) | Off-white | 55.5 | |
| TWN8-4-8W | 80 | 40 | 80 | 71.6 | 30.5 | 59 | ABS (UL94V-0) | Off-white | 75 | |
| TWN9-4-17W | 85.5 | 35.5 | 170 | 75.7 | 24 | 143 | ABS (UL94V-0) | Off-white | 151 | |
| TWN9-6-17W | 85.5 | 60.5 | 170 | 75.7 | 49 | 143 | ABS (UL94V-0) | Off-white | 191 | |
| TWN11-5-22W | 110 | 45.3 | 220 | 100.1 | 33.8 | 191 | ABS (UL94V-0) | Off-white | 254 | |
| TWN11-8-22W | 110 | 75.3 | 220 | 99.3 | 63.8 | 191 | ABS (UL94V-0) | Off-white | 316 | |
| TWN13-3-13W | 125 | 25 | 125 | 114.5 | 13.7 | 100 | ABS (UL94V-0) | Off-white | 156.5 | |
| TWN13-3-18W | 125 | 25 | 175 | 114.5 | 13.7 | 148 | ABS (UL94V-0) | Off-white | 206.5 | |
| TWN13-5-13W | 125 | 45 | 125 | 114.5 | 33.7 | 100 | ABS (UL94V-0) | Off-white | 190 | |
| TWN13-5-18W | 125 | 45 | 175 | 114.5 | 33.7 | 148 | ABS (UL94V-0) | Off-white | 249 | |
| TWN13-7-18W | 125 | 65 | 175 | 114.2 | 53.7 | 148 | ABS (UL94V-0) | Off-white | 290.5 | |
| TW4-2-6G | 35 | 20 | 60 | 28.2 | 12 | 42.6 | ABS (UL94HB) | Light gray | 15.5 | Discontinued - Sold out. |
| TW5-2-7G | 50 | 15 | 70 | 43.2 | 7 | 52.9 | ABS (UL94HB) | Light gray | 22 | Discontinued - Sold out. |
| TW5-3-7G | 50 | 27.5 | 70 | 43.2 | 19.5 | 52.9 | ABS (UL94HB) | Light gray | 29 | Discontinued - Sold out. |
| TW5-3-9G | 45 | 25 | 90 | 37.7 | 16 | 69.4 | ABS (UL94HB) | Light gray | 30.5 | Discontinued - Sold out. |
| TW5-4-7G | 50 | 40 | 70 | 42.5 | 32 | 52.9 | ABS (UL94HB) | Light gray | 35 | Discontinued - Sold out. |
| TW7-2-11G | 70 | 20 | 105 | 61.2 | 10.5 | 83 | ABS (UL94HB) | Light gray | 56.5 | Discontinued - Sold out. |
| TW7-4-11G | 70 | 35 | 105 | 61.2 | 25.5 | 83 | ABS (UL94HB) | Light gray | 70 | Discontinued - Sold out. |
| TW7-5-11G | 70 | 50 | 105 | 61.1 | 40.5 | 83 | ABS (UL94HB) | Light gray | 83 | Discontinued - Sold out. |
| TW8-4-8G | 80 | 40 | 80 | 71.6 | 30.5 | 59 | ABS (UL94HB) | Light gray | 65 | Discontinued - Sold out. |
| TW13-3-13G | 125 | 25 | 125 | 114.5 | 13.7 | 100 | ABS (UL94HB) | Light gray | 135 | Discontinued - Sold out. |
| TW13-3-18G | 125 | 25 | 175 | 114.5 | 13.7 | 148 | ABS (UL94HB) | Light gray | 184.5 | Discontinued - Sold out. |
