Serie TWF
KUNSTSTOFFGEHÄUSE MIT BEFESTIGUNGSLASCHEN
- Schutzart: IP40
- Betriebstemperatur: -10°C ~ +60°C
- Mehrzweckgehäuse mit Befestigungslaschen, konzipiert für den Einsatz als Wandgerät oder Terminal.
- 23 verschiedene Größen in 2 Farben. Hergestellt aus ABS UL94V-0.
- Ausgestattet mit Montagenocken für Leiterplatten.
- Empfohlen für den Einsatz als Messinstrumente, drahtlose Kommunikationsgeräte, Steuerungsgeräte und mehr.
Mehrzweckgehäuse mit Befestigungslaschen, konzipiert für den Einsatz als Wandgerät / Terminal.
Hergestellt aus flammhemmendem ABS (UL94V-0).
Ausgestattet mit Montagenocken für Leiterplatten.
Empfohlen für den Einsatz als Messinstrumente, drahtlose Kommunikationsgeräte, Steuerungsgeräte und mehr.
23 verschiedene Größen in 2 Farben.
Farbtyp
| Code | Cover | Flanged base | Screw |
|---|---|---|---|
| W | Off-white | Off-white | Nickel plated |
| D | Dark gray | Dark gray | Black trivalent chromate |

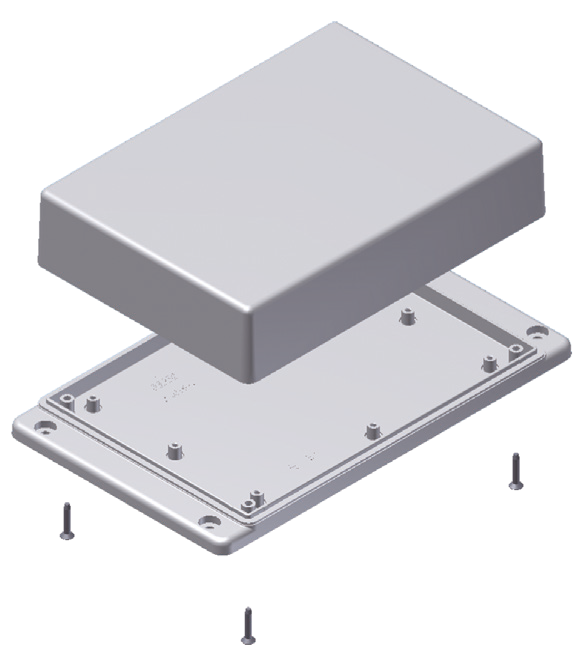

Komponenten
| No. | Part name | Pcs | Material | Color / Finish |
|---|---|---|---|---|
| 1 | Cover | 1 | ABS UL94V-0 | Off-white • Dark gray |
| 2 | Flanged base | 1 | ABS UL94V-0 | Off-white • Dark gray |
| 3 | Self-tapping screw | 2 / 4 | Steel | Nickel plated • Black trivalent chromate |
Abmessungen
Art.-Nr. / Abmessungen
| Product no. | External dimensions | Internal dimensions | Color / Similar matching | Weight (g) | ||||
|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||
| TWF4-2-5D | 35.4 | 22 | 70.4 | 27.2 | 13.2 | 32.4 | Dark gray / Munsell N3 | 19.7 |
| TWF4-2-5W | 35.4 | 22 | 70.4 | 27.2 | 13.2 | 32.4 | Off-White / Munsell N8.75 | 19.7 |
| TWF5-2-5D | 50.4 | 17 | 70.4 | 42.7 | 8 | 31.9 | Dark gray / Munsell N3 | 21.5 |
| TWF5-2-5W | 50.4 | 17 | 70.4 | 42.7 | 8 | 31.9 | Off-White / Munsell N8.75 | 21.5 |
| TWF5-2-7D | 50.4 | 17 | 90.4 | 43.1 | 8 | 52.9 | Dark gray / Munsell N3 | 29 |
| TWF5-2-7W | 50.4 | 17 | 90.4 | 43.1 | 8 | 52.9 | Off-White / Munsell N8.75 | 29 |
| TWF5-3-5D | 50.4 | 27 | 70.4 | 42.7 | 18 | 31.9 | Dark gray / Munsell N3 | 26.5 |
| TWF5-3-5W | 50.4 | 27 | 70.4 | 42.7 | 18 | 31.9 | Off-White / Munsell N8.75 | 26.5 |
| TWF5-3-7D | 50.4 | 29.5 | 90.4 | 43.1 | 20.5 | 52.9 | Dark gray / Munsell N3 | 36 |
| TWF5-3-7W | 50.4 | 29.5 | 90.4 | 43.1 | 20.5 | 52.9 | Off-White / Munsell N8.75 | 36 |
| TWF5-3-9D | 45.6 | 27.5 | 111 | 37.2 | 17.5 | 70.4 | Dark gray / Munsell N3 | 43 |
| TWF5-3-9W | 45.6 | 27.5 | 111 | 37.2 | 17.5 | 70.4 | Off-White / Munsell N8.75 | 43 |
| TWF5-4-7D | 50.4 | 42 | 90.4 | 42.5 | 33 | 52.9 | Dark gray / Munsell N3 | 43.5 |
| TWF5-4-7W | 50.4 | 42 | 90.4 | 42.5 | 33 | 52.9 | Off-White / Munsell N8.75 | 43.5 |
| TWF7-2-11D | 70.6 | 20.5 | 127 | 61.4 | 10.5 | 83 | Dark gray / Munsell N3 | 66.5 |
| TWF7-2-11W | 70.6 | 20.5 | 127 | 61.4 | 10.5 | 83 | Off-White / Munsell N8.75 | 66.5 |
| TWF7-3-13D | 65.5 | 25.5 | 150 | 57.7 | 14.2 | 105 | Dark gray / Munsell N3 | 87 |
| TWF7-3-13W | 65.5 | 25.5 | 150 | 57.7 | 14.2 | 105 | Off-White / Munsell N8.75 | 87 |
| TWF7-4-11D | 70.6 | 35.5 | 127 | 61.4 | 25.5 | 83 | Dark gray / Munsell N3 | 82 |
| TWF7-4-11W | 70.6 | 35.5 | 127 | 61.4 | 25.5 | 83 | Off-White / Munsell N8.75 | 82 |
| TWF7-5-11D | 70.6 | 50.5 | 127 | 61.1 | 40.5 | 83 | Dark gray / Munsell N3 | 96.5 |
| TWF7-5-11W | 70.6 | 50.5 | 127 | 61.1 | 40.5 | 83 | Off-White / Munsell N8.75 | 96.5 |
| TWF7-5-13D | 65.5 | 50 | 150 | 55.9 | 38.7 | 105 | Dark gray / Munsell N3 | 114 |
| TWF7-5-13W | 65.5 | 50 | 150 | 55.9 | 38.7 | 105 | Off-White / Munsell N8.75 | 114 |
| TWF8-2-8D | 80.6 | 23.5 | 100.6 | 71.5 | 13.5 | 59 | Dark gray / Munsell N3 | 62 |
| TWF8-2-8W | 80.6 | 23.5 | 100.6 | 71.5 | 13.5 | 59 | Off-White / Munsell N8.75 | 62 |
| TWF8-4-8D | 80.6 | 43.5 | 100.6 | 71.5 | 33.5 | 59 | Dark gray / Munsell N3 | 82 |
| TWF8-4-8W | 80.6 | 43.5 | 100.6 | 71.5 | 33.5 | 59 | Off-White / Munsell N8.75 | 82 |
| TWF9-4-17D | 86 | 35 | 190 | 76.5 | 23.7 | 143 | Dark gray / Munsell N3 | 150 |
| TWF9-4-17W | 86 | 35 | 190 | 76.5 | 23.7 | 143 | Off-White / Munsell N8.75 | 150 |
| TWF9-6-17D | 86 | 60 | 190 | 75.7 | 48.7 | 143 | Dark gray / Munsell N3 | 184 |
| TWF9-6-17W | 86 | 60 | 190 | 75.7 | 48.7 | 143 | Off-White / Munsell N8.75 | 184 |
| TWF11-5-22D | 110.3 | 45 | 250.6 | 100.8 | 33.7 | 191 | Dark gray / Munsell N3 | 250 |
| TWF11-5-22W | 110.3 | 45 | 250.6 | 100.8 | 33.7 | 191 | Off-White / Munsell N8.75 | 250 |
| TWF11-8-22D | 110.3 | 75 | 250.6 | 99.3 | 63.7 | 191 | Dark gray / Munsell N3 | 303 |
| TWF11-8-22W | 110.3 | 75 | 250.6 | 99.3 | 63.7 | 191 | Off-White / Munsell N8.75 | 303 |
| TWF13-3-13D | 125.6 | 25 | 155.6 | 114.5 | 13.7 | 100 | Dark gray / Munsell N3 | 155 |
| TWF13-3-13W | 125.6 | 25 | 155.6 | 114.5 | 13.7 | 100 | Off-White / Munsell N8.75 | 155 |
| TWF13-3-18D | 125.6 | 25 | 205.6 | 114.5 | 13.7 | 148 | Dark gray / Munsell N3 | 199 |
| TWF13-3-18W | 125.6 | 25 | 205.6 | 114.5 | 13.7 | 148 | Off-White / Munsell N8.75 | 199 |
| TWF13-5-13D | 125.6 | 45 | 155.6 | 114.5 | 33.7 | 100 | Dark gray / Munsell N3 | 189 |
| TWF13-5-13W | 125.6 | 45 | 155.6 | 114.5 | 33.7 | 100 | Off-White / Munsell N8.75 | 189 |
| TWF13-5-18D | 125.6 | 45 | 205.6 | 114.5 | 33.7 | 148 | Dark gray / Munsell N3 | 242 |
| TWF13-5-18W | 125.6 | 45 | 205.6 | 114.5 | 33.7 | 148 | Off-White / Munsell N8.75 | 242 |
| TWF13-7-18D | 125.6 | 65 | 205.6 | 114.2 | 53.7 | 148 | Dark gray / Munsell N3 | 281 |
| TWF13-7-18W | 125.6 | 65 | 205.6 | 114.2 | 53.7 | 148 | Off-White / Munsell N8.75 | 281 |
