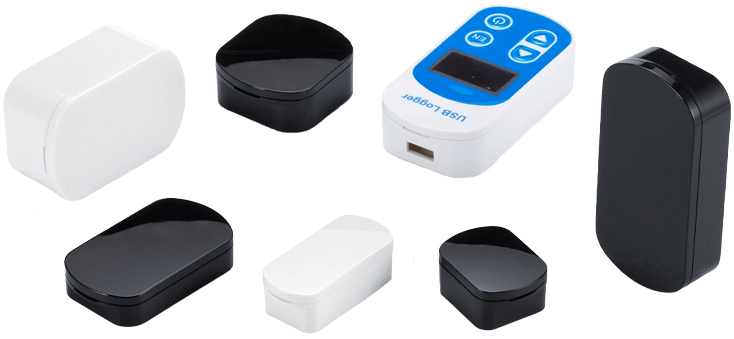

Series SIC
IoT SMALL PLASTIC CASE
- Protection class: IP40
- Operating temperature: -10°C ~ +60°C
- 8 new sizes added for a total of 19 different sizes available for selection.
- Small rounded design plastic case ideal for use as IoT devices.
- Easy and tool-less assembly snap-in case.
- While being small in size, there is ample internal space by utilization of the snap-in structure.
- The polished surface also provides a high-end finish and gives off a superior quality and feel while having superb cost performance.
- Off-white models are made of weather-resistant ASA material. Suitable for devices intended to be used under direct sunlight.
- Optional universal PCB, PCB32-53 is compatible with SIC5-7-2 and 5-7-3 models. See PCB series on our website for more details.
8 new sizes added for a total of 19 different sizes available for selection.
Small rounded plastic case ideal for use as IoT devices.
Easy assembly snap-fit construction.
Despite the small size, the screwless construction provides ample internal space.

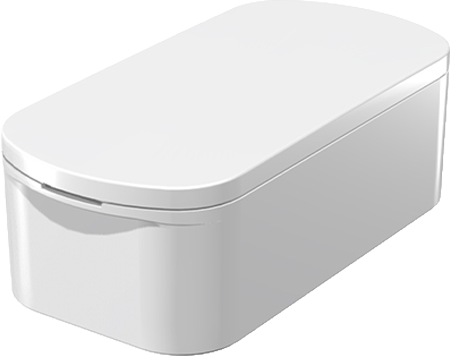

Off-white models are made of weather-resistant ASA material.
Suitable for devices intended to be used under direct sunlight.
Components
| No. | Part name | Pcs | Material | Color / Finish |
|---|---|---|---|---|

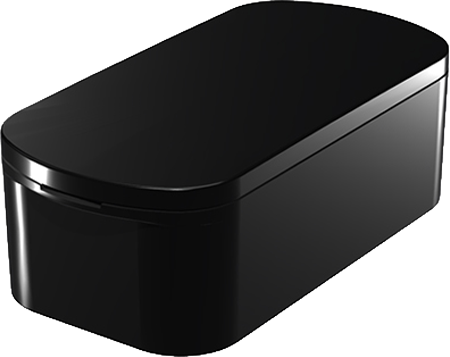

| 1 | Cover | 1 | ABS UL94HB | Black / Polished |
| Weather-resistant ASA UL94HB | Off-white / Polished | |||
| 2 | Base | 1 | ABS UL94HB | Black / Polished |
| Weather-resistant ASA UL94HB | Off-white / Polished |

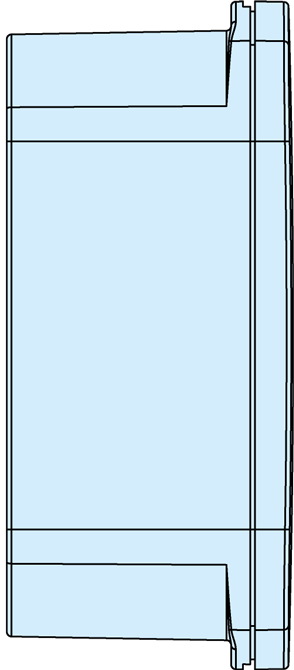

Dimensions
Product no. / Details
| Product no. | External dimensions | Internal dimensions | Weight (g) | Color / Similar matching | Material | ||||
|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | ||||
| SIC2-4-1B | 20 | 13 | 35 | 15.3 | 8.7 | 23.6 | 4.4 | Black / Munsell N1 | ABS |
| SIC2-4-1W | 20 | 13 | 35 | 15.3 | 8.7 | 23.6 | 4.4 | Off-white / Munsell N8.75 | ASA |
| SIC2-5-1B | 20 | 13 | 50 | 15.3 | 8.6 | 38.6 | 6.2 | Black / Munsell N1 | ABS |
| SIC2-5-1W | 20 | 13 | 50 | 15.3 | 8.6 | 38.6 | 6.2 | Off-white / Munsell N8.75 | ASA |
| SIC3-4-2B | 30 | 18 | 40 | 25.1 | 11.1 | 28.6 | 7.8 | Black / Munsell N1 | ABS |
| SIC3-4-2W | 30 | 18 | 40 | 25.1 | 11.1 | 28.6 | 7.8 | Off-white / Munsell N8.75 | ASA |
| SIC3-5-2B | 25 | 18 | 54 | 20.1 | 11.1 | 42.6 | 9.2 | Black / Munsell N1 | ABS |
| SIC3-5-2W | 25 | 18 | 54 | 20.1 | 11.1 | 42.6 | 9.2 | Off-white / Munsell N8.75 | ASA |
| SIC3-6-2B | 32 | 20 | 63 | 27.1 | 13 | 51.6 | 13.2 | Black / Munsell N1 | ABS |
| SIC3-6-2W | 32 | 20 | 63 | 27.1 | 13 | 51.6 | 13.2 | Off-white / Munsell N8.75 | ASA |
| SIC4-7-1B | 38 | 14 | 65 | 32.7 | 6.4 | 53.3 | 14.8 | Black / Munsell N1 | ABS |
| SIC4-7-1W | 38 | 14 | 65 | 32.7 | 6.4 | 53.3 | 14.8 | Off-white / Munsell N8.75 | ASA |
| SIC4-7-2B | 38 | 22 | 65 | 32.4 | 14.4 | 53 | 17.7 | Black / Munsell N1 | ABS |
| SIC4-7-2W | 38 | 22 | 65 | 32.4 | 14.4 | 53 | 17.7 | Off-white / Munsell N8.75 | ASA |
| SIC5-5-2B | 45 | 20 | 50 | 39.5 | 10.9 | 38.5 | 14.9 | Black / Munsell N1 | ABS |
| SIC5-5-2W | 45 | 20 | 50 | 39.5 | 10.9 | 38.5 | 14.9 | Off-white / Munsell N8.75 | ASA |
| SIC5-5-3B | 45 | 30 | 50 | 39.1 | 20.9 | 38.1 | 18.1 | Black / Munsell N1 | ABS |
| SIC5-5-3W | 45 | 30 | 50 | 39.1 | 20.9 | 38.1 | 18.1 | Off-white / Munsell N8.75 | ASA |
| SIC5-7-2B | 45 | 20 | 70 | 39.5 | 10.9 | 58.5 | 20.1 | Black / Munsell N1 | ABS |
| SIC5-7-2W | 45 | 20 | 70 | 39.5 | 10.9 | 58.5 | 20.1 | Off-white / Munsell N8.75 | ASA |
| SIC5-7-3B | 45 | 30 | 70 | 39.1 | 20.9 | 58.1 | 24.1 | Black / Munsell N1 | ABS |
| SIC5-7-3W | 45 | 30 | 70 | 39.1 | 20.9 | 58.1 | 24.1 | Off-white / Munsell N8.75 | ASA |
| SIC5-9-2B | 45 | 20 | 90 | 39.5 | 10.9 | 78.5 | 24.9 | Black / Munsell N1 | ABS |
| SIC5-9-2W | 45 | 20 | 90 | 39.5 | 10.9 | 78.5 | 24.9 | Off-white / Munsell N8.75 | ASA |
| SIC5-9-3B | 45 | 30 | 90 | 39.1 | 20.9 | 78.1 | 29.4 | Black / Munsell N1 | ABS |
| SIC5-9-3W | 45 | 30 | 90 | 39.1 | 20.9 | 78.1 | 29.4 | Off-white / Munsell N8.75 | ASA |
| SIC6-7-3B | 60 | 25 | 65 | 54.3 | 15.9 | 53.6 | 26.8 | Black / Munsell N1 | ABS |
| SIC6-7-3W | 60 | 25 | 65 | 54.3 | 15.9 | 53.6 | 26.8 | Off-white / Munsell N8.75 | ASA |
| SIC6-7-4B | 60 | 38 | 65 | 53.9 | 28.9 | 53.1 | 32.6 | Black / Munsell N1 | ABS |
| SIC6-7-4W | 60 | 38 | 65 | 53.9 | 28.9 | 53.1 | 32.6 | Off-white / Munsell N8.75 | ASA |
| SIC6-9-3B | 60 | 25 | 90 | 54.3 | 15.9 | 78.6 | 36.3 | Black / Munsell N1 | ABS |
| SIC6-9-3W | 60 | 25 | 90 | 54.3 | 15.9 | 78.6 | 36.3 | Off-white / Munsell N8.75 | ASA |
| SIC6-9-4B | 60 | 38 | 90 | 53.9 | 28.9 | 78.1 | 43.6 | Black / Munsell N1 | ABS |
| SIC6-9-4W | 60 | 38 | 90 | 53.9 | 28.9 | 78.1 | 43.6 | Off-white / Munsell N8.75 | ASA |
| SIC6-12-3B | 60 | 25 | 120 | 54.3 | 15.9 | 108.6 | 46.9 | Black / Munsell N1 | ABS |
| SIC6-12-3W | 60 | 25 | 120 | 54.3 | 15.9 | 108.6 | 46.9 | Off-white / Munsell N8.75 | ASA |
| SIC6-12-4B | 60 | 38 | 120 | 53.9 | 28.9 | 108.1 | 55.9 | Black / Munsell N1 | ABS |
| SIC6-12-4W | 60 | 38 | 120 | 53.9 | 28.9 | 108.1 | 55.9 | Off-white / Munsell N8.75 | ASA |
