Series RPA
Raspberry Pi 4B ACRYLIC CASE
- Operating temperature: -30°C ~ +60°C
- Exclusively for use with Raspberry Pi models.
- 3 different types - Single desktop, Dual desktop, and Single flanged - are available.
- New size for Raspberry Pi 5 is now available.
- The panel power button part may easily bend when the board is not installed.
- Raspberry Pi board is not included.
- ※ Ethanol or other alcoholic solvents may cause the acrylic panel to crack. Use a neutral cleaner or specialized acrylic cleaning solvent for cleaning.
- ※ Included screws:
- RPA-4B • 5-1 Knurled thumb screw x 8
- RPA-4B • 5-2 Knurled thumb screw x 8
- RPA-4B • 5-1F Knurled thumb screw x 4
- M3-8 flat head, Trivalent chromate x 4

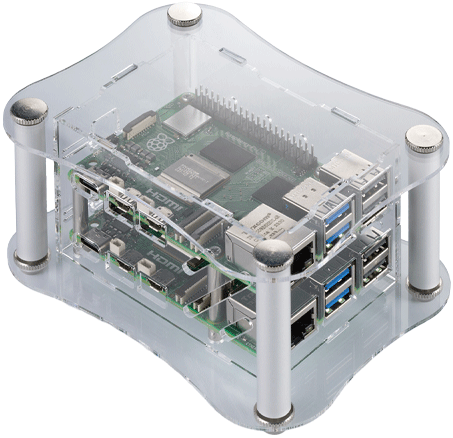

Curved transparent acrylic case with corner support columns, exclusively for use with Raspberry Pi 4B models.
Usable as a display enclosure for a unique and luxurious outlook.
3 models are available: Standard, Layered, and Flanged.
Flanged RPA-4B-1F model is compliant with VESA100 (100×100) mounting standards,
therefore can be attached onto the backside of display monitors, among others.
Screws and standoffs to install Raspberry Pi Board are included.
Raspberry Pi Board is not included.
Components
| No. | Part name | Pcs | Materials | Color / Finish |
|---|---|---|---|---|
| 1 | Top cover | 1 | Acrylic t=2.0 | Transparent |
| 2 | Bottom cover | 1 | Acrylic t=2.0 | Transparent |
| 3 | Panel | 4 | Acrylic t=2.0 | Transparent |
| 4 | Pillar | 4 | Extruded aluminium A6063S-T5 | Silver / Anodized with clear coating |
| 5 | 5 Knurled thumb screw (M3-8)※ | 4 / 8 | Brass | Nickel plated |
| 6 | Standoff (for board) | 4 | Brass | Nickel plated |
| 7 | Screw for Board (M2.5-4 pan head) | 4 | Steel | Trivalent chromate |
| 8 | Screw for Standoffs (M2.5-5 flat head) | 4 | Steel | Trivalent chromate |
Dimensions
Product no. / Details
| Product no. | External dimensions | Type | Weight (g) | ||
|---|---|---|---|---|---|
| W | H | D | |||
| RPA-4B-1 | 95 | 34 | 125 | Single board type | 118 |

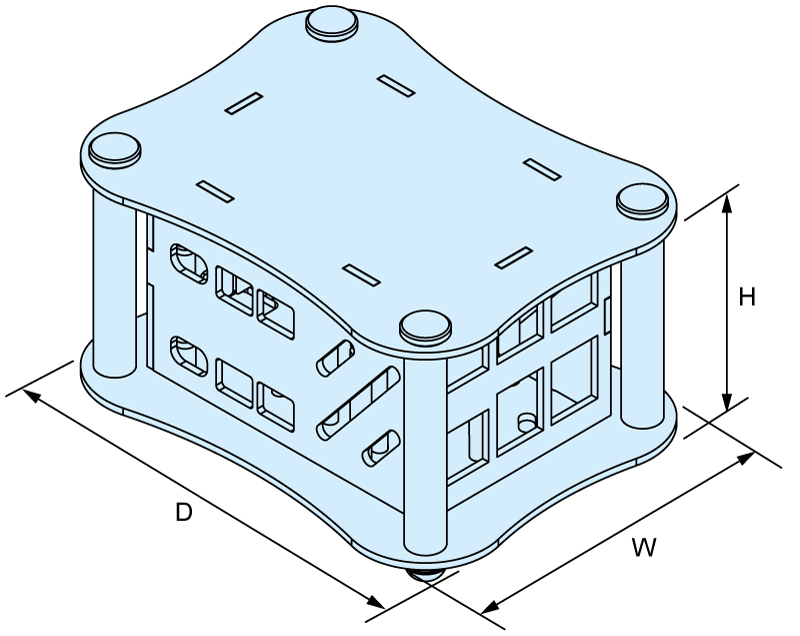

| RPA-4B-2 | 95 | 62 | 125 | Double layered type | 171.5 |

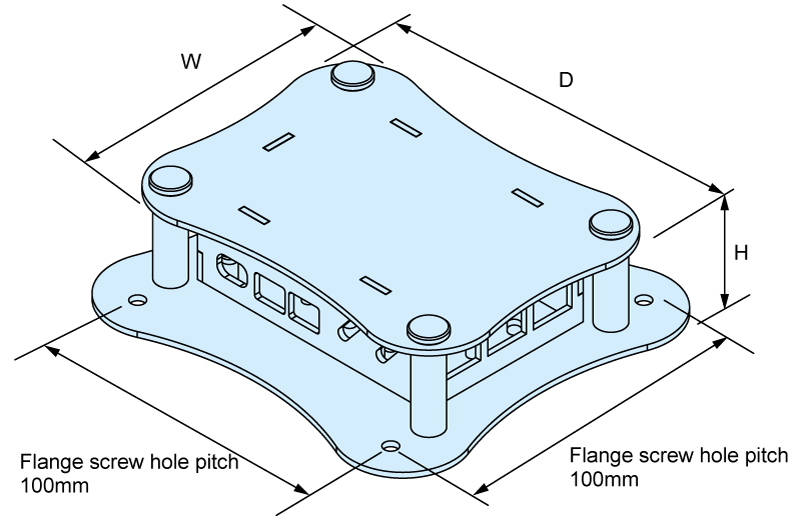

| RPA-4B-1F | 95 | 34 | 125 | With wall mount flange (VESA mount) | 118.5 |
