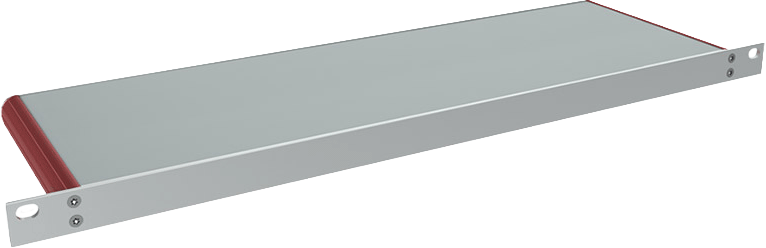

Series MTC
19“ enclosure with modern design
- Protection class: IP40
- Protection class: IP54
- Sizes from ½ U, 1U, 1.5 U and 2U as standard available.
- Surfaces outside anodized – inside RoHS-compliant passivated.
- Easy to assemble.
- Very good EMC-properties due to electrically conductive surfaces.
- High stability because of extruded profile-frontpanels and side walls.
- PCB adapter for standardized PCBs as an option are available.
- 6 standard depths from 140mm up to 600mm.
- Customized machining and printing also with our Express-Service.
- Economically, even for high volumes.
The series MTC combines the advantages of a 19“ rack-system with high functionality and modern design. This enclosure combines best properties regarding EMC- protection and assembling. A special highlight is the ½ U – version for applications with low heights.
Features:
Front-, rear- and side-profiles made of aluminium extrusions. Covers made of 1.5mm aluminium sheet.
Applications:
Installation in 19-inch cabinets. For desktop versions please look at Series ITC.
Surface:
Exterior surfaces are natural anodized; interior surfa-ces are passivated conforming to RoHS. Other surface treatments on request.
Delivery form:
Disassembled including all fasteners. Customizing: Please send us your request. We are able to produce your customized solution with cut-outs and printing in an economic way.
| Height in U | Depth inside | Part no. | Part no. | |
|---|---|---|---|---|
| without front handles | without front handles | |||
 | 0,5HE (22 mm) | 140 mm | MTC48601 | - |
| Inside height (17,6 mm) | 205 mm | MTC48602 | - | |
| 260 mm | MTC48603 | - | ||
| 360 mm | MTC48604 | - | ||
| 450 mm | MTC48605 | - | ||
| 600 mm | MTC48606 | - | ||
 | 1HE (43,8 mm) | 140 mm | MTC48610 | MTC48610G |
| Inside height (39,4 mm) | 205 mm | MTC48611 | MTC48611G | |
| 260 mm | MTC48612 | MTC48612G | ||
| 360 mm | MTC48613 | MTC48613G | ||
| 450 mm | MTC48614 | MTC48614G | ||
| 600 mm | MTC48615 | MTC48615G | ||
 | 1,5HE (66,1 mm) | 140 mm | MTC48620 | MTC48620G |
| Inside height (59,8 mm) | 205 mm | MTC48621 | MTC48621G | |
| 260 mm | MTC48622 | MTC48622G | ||
| 360 mm | MTC48623 | MTC48623G | ||
| 450 mm | MTC48624 | MTC48624G | ||
| 600 mm | MTC48625 | MTC48625G | ||
 | 2HE (88,1 mm) | 140 mm | MTC48630 | MTC48630G |
| Inside height (81,8 mm) | 205 mm | MTC48631 | MTC48631G | |
| 260 mm | MTC48632 | MTC48632G | ||
| 360 mm | MTC48633 | MTC48633G | ||
| 450 mm | MTC48634 | MTC48634G | ||
| 600 mm | MTC48635 | MTC48635G |
PCB adapter
| For height | Adapter height | Depth inside | Part no. | Profile |
|---|---|---|---|---|
| 1HE | 36,2 | 140 mm | MTC95140 | GP2185 |
| 1HE | 36,2 | 205 mm | MTC95205 | GP2185 |
| 1HE | 36,2 | 260 mm | MTC95260 | GP2185 |
| 1HE | 36,2 | 360 mm | MTC95360 | GP2185 |
| 1HE | 36,2 | 450 mm | MTC95450 | GP2185 |
| 1HE | 36,2 | 600 mm | MTC95600 | GP2185 |
| 1,5HE | 56,8 | 140 mm | MTC96140 | GP2187 |
| 1,5HE | 56,8 | 205 mm | MTC96205 | GP2187 |
| 1,5HE | 56,8 | 260 mm | MTC96260 | GP2187 |
| 1,5HE | 56,8 | 360 mm | MTC96360 | GP2187 |
| 1,5HE | 56,8 | 450 mm | MTC96450 | GP2187 |
| 1,5HE | 56,8 | 600 mm | MTC96600 | GP2187 |
| 2HE | 78,6 | 140 mm | MTC97140 | GP2188 |
| 2HE | 78,6 | 205 mm | MTC97205 | GP2188 |
| 2HE | 78,6 | 260 mm | MTC97260 | GP2188 |
| 2HE | 78,6 | 360 mm | MTC97360 | GP2188 |
| 2HE | 78,6 | 450 mm | MTC97450 | GP2188 |
| 2HE | 78,6 | 600 mm | MTC97600 | GP2188 |
- Optional parts

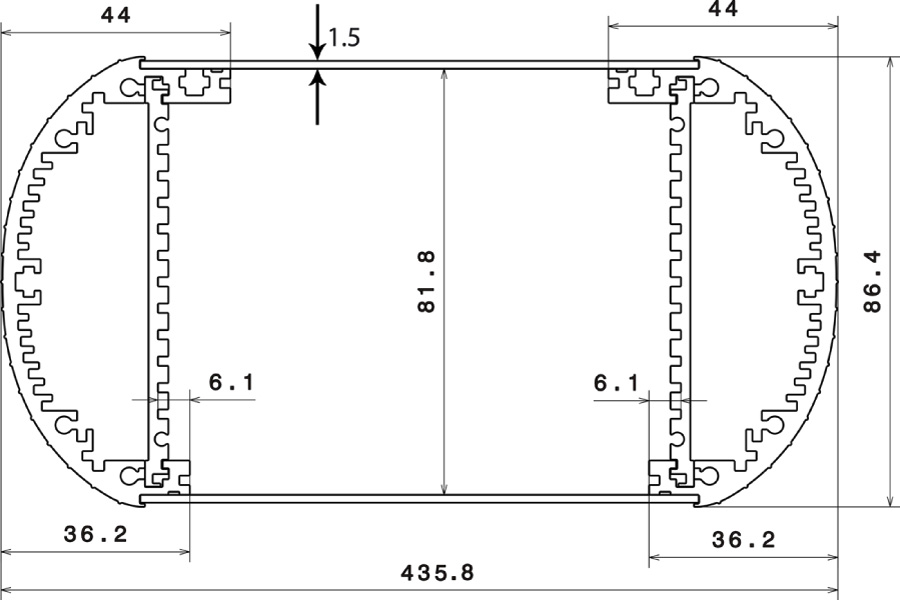

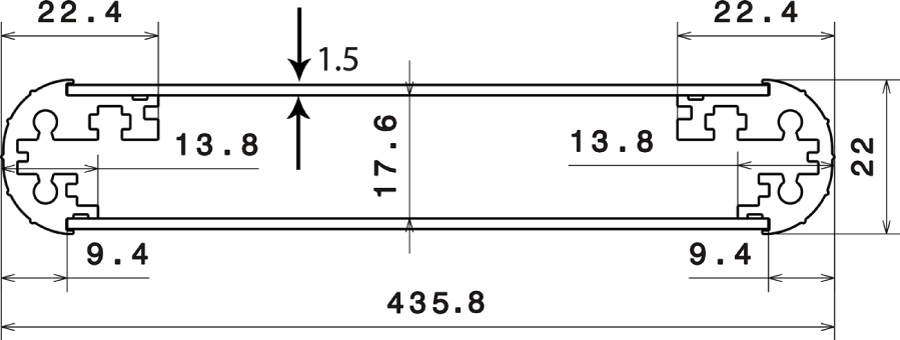

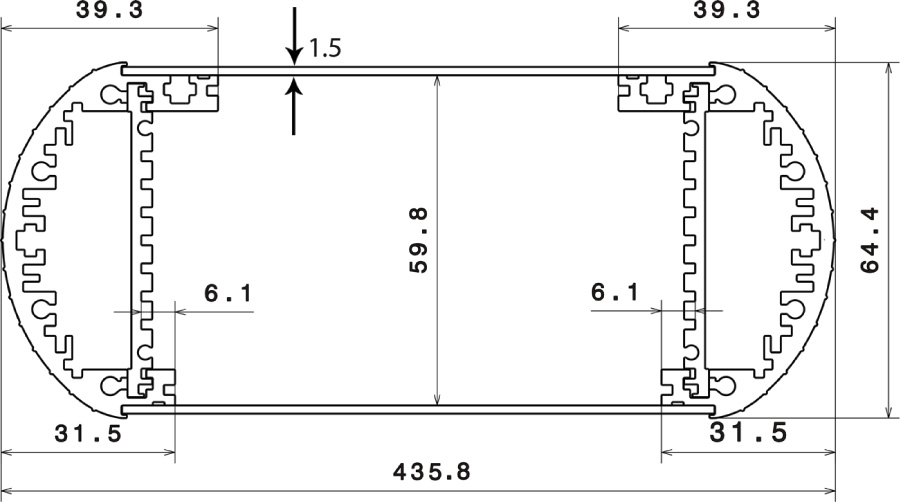

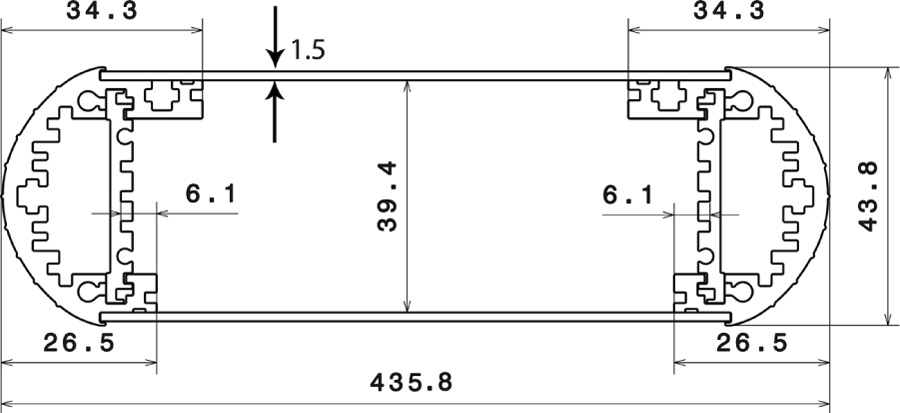

Drawings and dimensions
