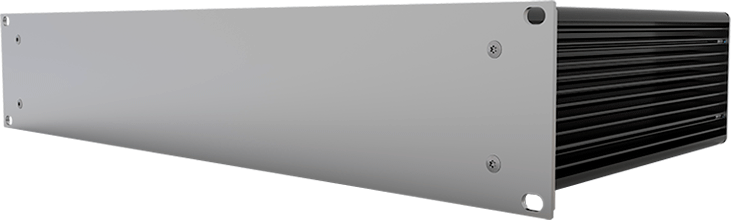

Series MGSI
modular case with Heatsinks
- Protection class: IP40
- Protection class: IP54
- Only four screws in 1U 19-inch version; 8 screws in 2U and 3U, plugged-in cover plates.
- Degree of IP protection IP40, IP54 with EMC gaskets.
- EMC gasket set as an option.
- Extruded front panel, rear panel and side profiles in the highest precision at the limit of technical feasibility.
- Heights from 1U to 3U; 6 standard depths from 140 mm to 600 mm; Special widths and depths available on request.
- Surface outside natural anodized, passivated conductive internal surfaces, RoHS compliant.
- Colored sides with decor panels.
- Mounting plates vertically and horizontally.
- Individual processing by ourselves in express service.
- Maintenance-free cooling.
- Economically even in large series.
Available as 19-inch plug-in box or desktop version with variable width and depth.
The development of the series MGSI is the improve-ment of our successful series MGS. The cooling ele-ments on the side provide passive cooling of the elec-tronics inside. Guide grooves for receiving heat pipes enable additional cooling.
The highest standards of electromagnetic compati-bility, ease of installation, light weight and almost a
„screwless“ design are met by the new MGS series in an excellent manner.
| Height in U | Depth inside | Part no. 19-inch | Part no. 436 mm width | Part no. 217 mm width | |
|---|---|---|---|---|---|
| internal width 375,8 mm | internal width 375,8 mm | internal width 157,4 mm | |||
 | 1HE (43,8 mm) | 140 mm | MGSI48610 | MGSI43610 | MGSI21710 |
| Inside height (39,4 mm) | 205 mm | MGSI48611 | MGSI43611 | MGSI21711 | |
| 260 mm | MGSI48612 | MGSI43612 | MGSI21712 | ||
| 360 mm | MGSI48613 | MGSI43613 | MGSI21713 | ||
| 450 mm | MGSI48614 | MGSI43614 | MGSI21714 | ||
| 600 mm | MGSI48615 | MGSI43615 | MGSI21715 | ||
 | 1,5HE (66,1 mm) | 140 mm | MGSI48650 | MGSI43650 | MGSI21750 |
| Inside height (59,8 mm) | 205 mm | MGSI48651 | MGSI43651 | MGSI21751 | |
| 260 mm | MGSI48652 | MGSI43652 | MGSI21752 | ||
| 360 mm | MGSI48653 | MGSI43653 | MGSI21753 | ||
| 450 mm | MGSI48654 | MGSI43654 | MGSI21754 | ||
| 600 mm | MGSI48655 | MGSI43655 | MGSI21755 | ||
 | 2HE (88,1 mm) | 140 mm | MGSI48620 | MGSI43620 | MGSI21720 |
| Inside height (81,8 mm) | 205 mm | MGSI48621 | MGSI43621 | MGSI21721 | |
| 260 mm | MGSI48622 | MGSI43622 | MGSI21722 | ||
| 360 mm | MGSI48623 | MGSI43623 | MGSI21723 | ||
| 450 mm | MGSI48624 | MGSI43624 | MGSI21724 | ||
| 600 mm | MGSI48625 | MGSI43625 | MGSI21725 | ||

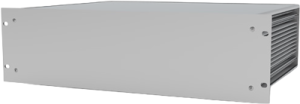

 | 3HE (132,5 mm) | 140 mm | MGSI48630 | MGSI43630 | MGSI21730 |
| Inside height (126,2 mm) | 205 mm | MGSI48631 | MGSI43631 | MGSI21731 | |
| 260 mm | MGSI48632 | MGSI43632 | MGSI21732 | ||
| 360 mm | MGSI48633 | MGSI43633 | MGSI21733 | ||
| 450 mm | MGSI48634 | MGSI43634 | MGSI21734 | ||
| 600 mm | MGSI48635 | MGSI43635 | MGSI21735 |
- Please add „G“ for versions with front handles. Our handle series BGQxxxN is used (only for 19" Enclosures).
- For version with EMC gasket set, please add „E“ to the order number.
- Other depths are available on request.
- Decor panels of anodized aluminium you can use from series MGS (look MGS Series).
- 19“ adapters you can use from series MGS.
