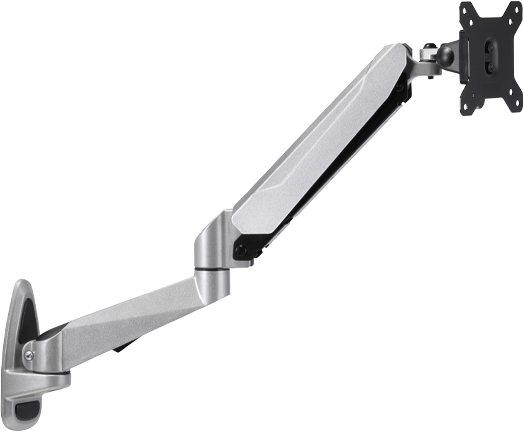

Series MAR
WALL MOUNT SUPPORT ARM
- Wall mount support arm move easily to the preferred positions.
- Suitable for command panel on machinery and touch panel controller. Easy installation onto the wall as well.
- Hole pitch on the monitor bracket is compatible with VESA mount standards. Possible to mount PC display without modification.
Wall mount support arm move easily to the preferred positions.
Suitable for command panel on machinery and touch panel controller. Easy installation onto the wall as well.
Hole pitch on the monitor bracket is compatible with VESA mount standards. Possible to mount PC display without modification.
Following 3 types can be selected.

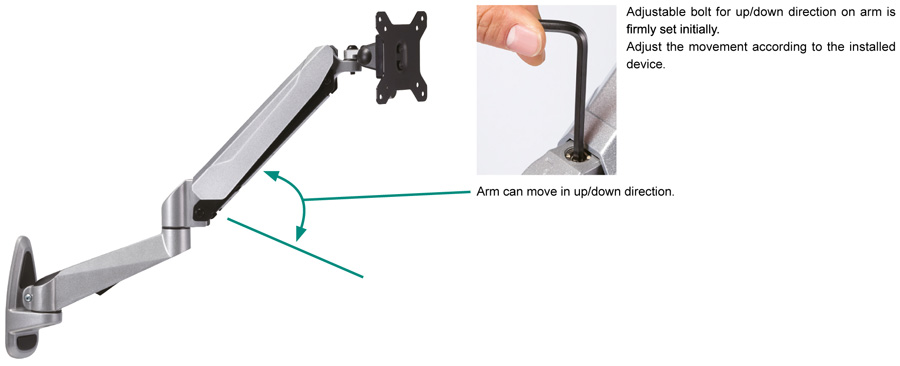

MAR-312W : Length 612mm / Max load 6.5kg / Arm can move up-down, left-right & Bracket can move up-down, left-right

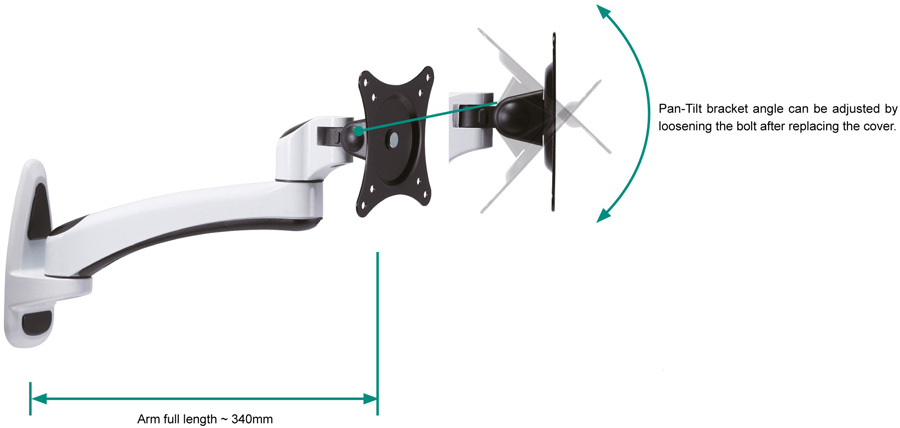

MAR-111W : Length 340mm / Max load 8kg / Arm can move left-right & Bracket can move up-down, left-right

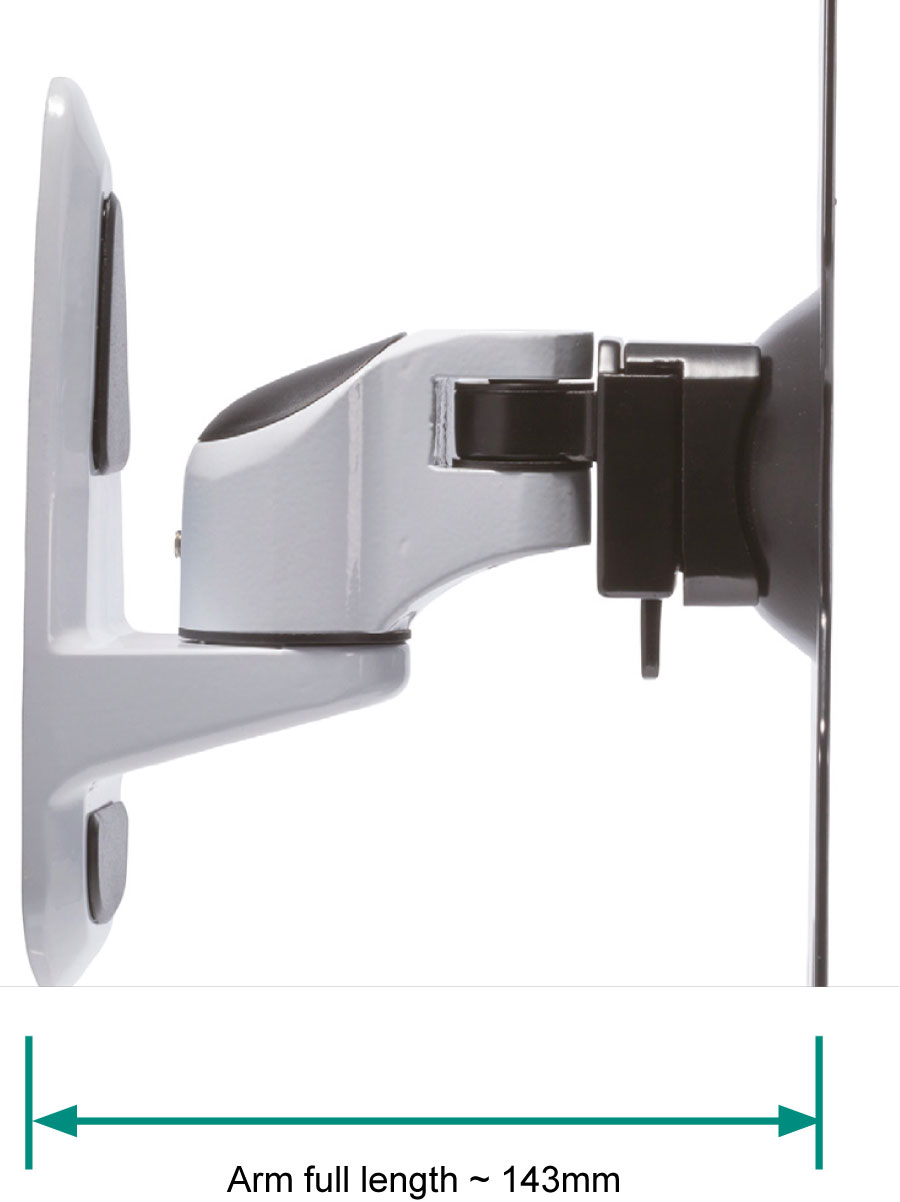

MAR-110W : Length 143mm / Max load 8kg / Bracket can move left-right

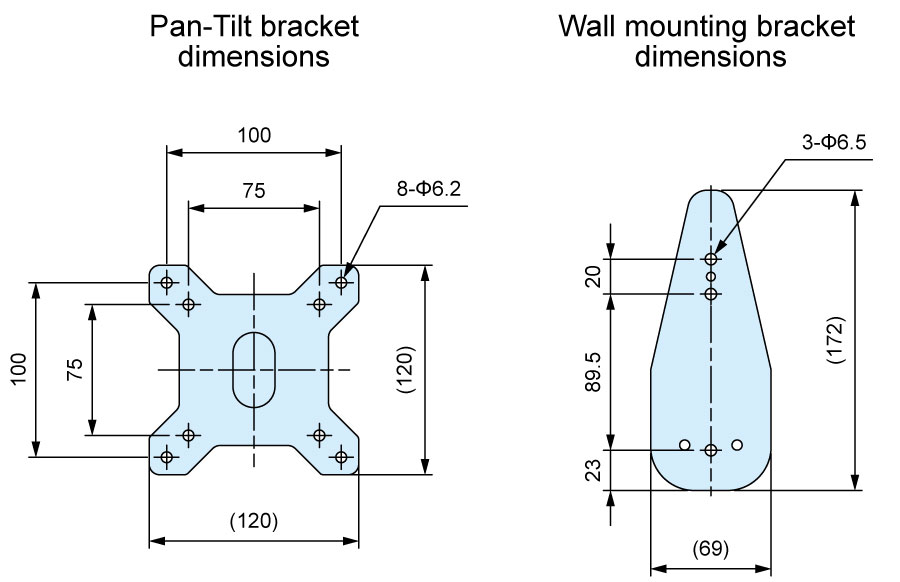

MAR-312W specifications
Max load : 6.5kg (including product weight, adjustable bolt firmly locked)
Material : Steel • Plastic • Aluminium diecast
* Wall mounting screws included.

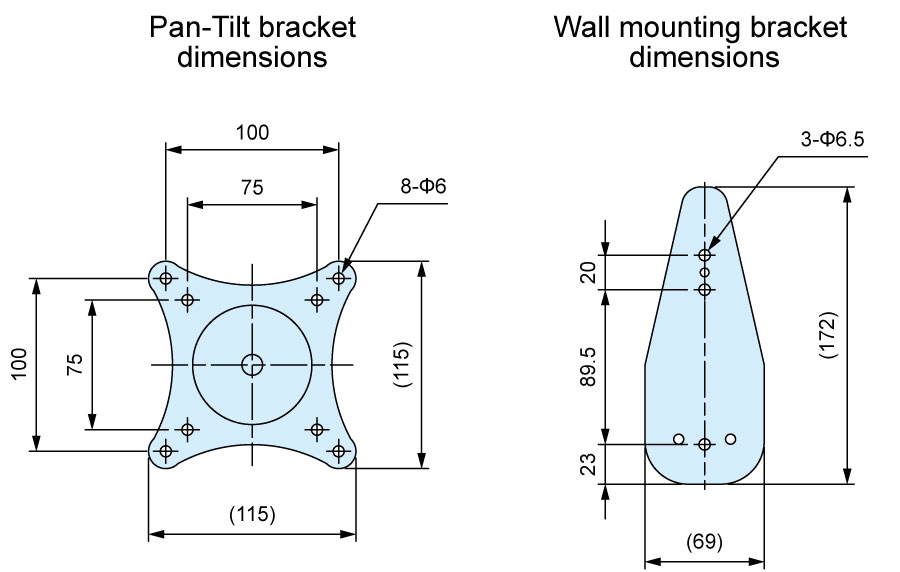

MAR-111W specifications
Max load : 8kg (including product weight)
Material : Steel • Plastic • Aluminium diecast
* Wall mounting screws included.

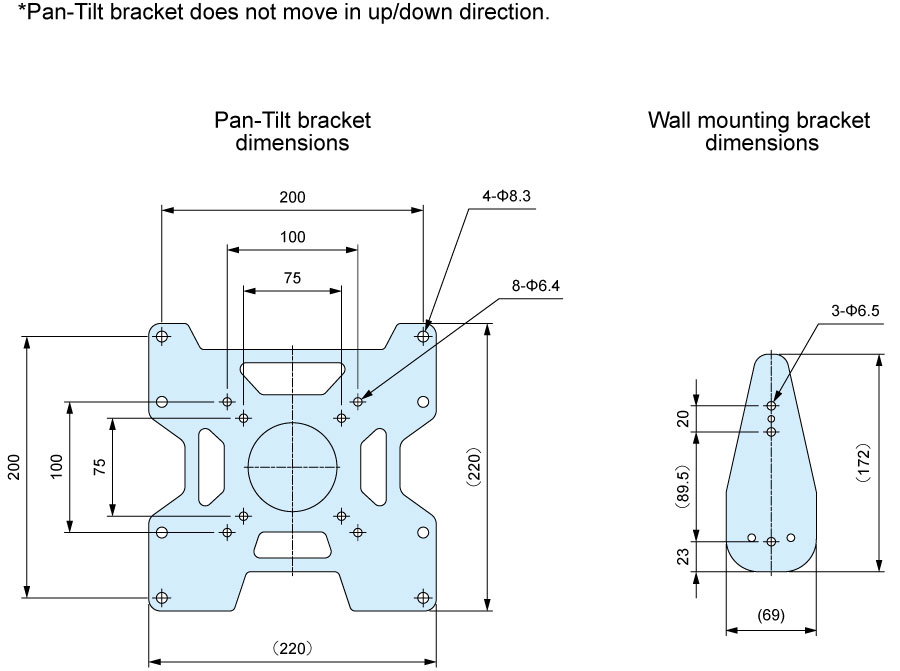

MAR-110W specifications
Max load : 8kg (including product weight)
Material : Steel • Plastic • Aluminium diecast
* Wall mounting screws included.
Product no. / Dimensions
| Product no. | Length (mm) | Max load (Including product weight) | Arm color | Weight (kg) |
|---|---|---|---|---|
| MAR-312W | 612mm | 6.5kg | Metallic gray | 2.2 |
| MAR-111W | 340mm | 8kg | White / Black | 1 |
| MAR-110W | 143mm | 8kg | White / Black | 1 |
