Series HY

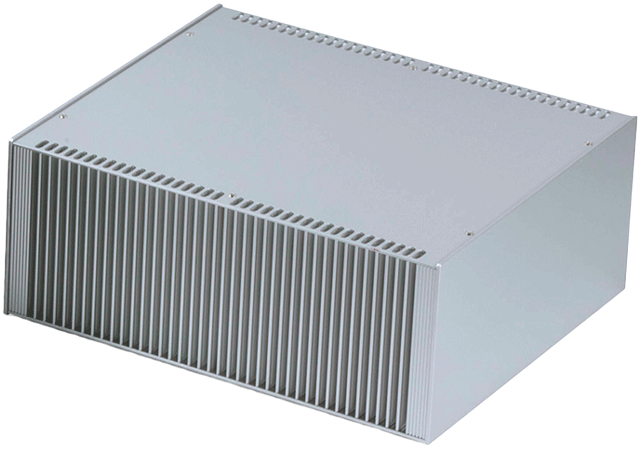

HEATSINK ALUMINUM ENCLOSURE

headerbild-serie-hy-cut
  • Heat resistant
  • Stylish and elegantly designed with a hairline finish.
  • Excellent cooling performance with the heat-sink side plates.
  • Now available in 56 sizes, and 2 different colors.
  • Tough and robust enclosure from using aluminium extrusion parts.
  • Simple and easy to assemble construction.
  • Flat back heat-sink plates for more effective heat spreading.
  • Included screws:
  • BB color type
  • M3-6 flat head & Black trivalent chromate x 16 pcs
  • M3-5 Slotted raised countersunk & Black trivalent chromate x 12 pcs
  • SS color type
  • M3-6 flat head & Nickel plated x 16 pcs
  • M3-5 Slotted raised countersunk & Nickel plated x 12 pcs

Series HY

headerbild-serie-hy-cut
Personal consultation
Download

Stylish and elegantly designed with a hairline finish.
Excellent cooling performance with the heat-sink side plates.

Now available in 56 sizes, and 2 different colors.

Tough and robust enclosure from using aluminium extrusion parts.
Simple and easy to assemble construction.
Flat back heat-sink plates for more effective heat spreading.

Components

No.Part namePcsMaterialColor / Finish
1Heat-sink side plate2Extruded aluminium A6063S-T5Silver • Black / Anodized
2Panel2Extruded aluminium A6063S-T5Silver • Black / Hairline brushed & Anodized
3Top • Bottom cover2Aluminium A1050P t=2.0Silver • Black / Hairline brushed & Anodized
4Corner support4Steel SPCC t=1.6Trivalent chromate
5Rubber feet4PolyurethaneBlack

Dimensions

hy-dimensions

Product no. / Dimensions

Product no.External dimensionsInternal dimensionsColorWeight (g)Mounting plate
WHDwhd(Option)
HY44-23-23SS2304423118632225Silver1100HYC23-23
HY44-23-23BB2304423118632225Black1100HYC23-23
HY44-23-33SS2304433018632324Silver1600HYC33-23
HY44-23-33BB2304433018632324Black1600HYC33-23
HY44-28-23SS2804423123632225Silver1400HYC23-28
HY44-28-23BB2804423123632225Black1400HYC23-28
HY44-28-33SS2804433023632324Silver1900HYC33-28
HY44-28-33BB2804433023632324Black1900HYC33-28
HY44-33-23SS3304423128632225Silver1500HYC33-23
HY44-33-23BB3304423128632225Black1500HYC33-23
HY44-33-33SS3304433028632324Silver2200HYC33-33
HY44-33-33BB3304433028632324Black2200HYC33-33
HY44-43-23SS4304423138632225Silver1900HYC23-43
HY44-43-23BB4304423138632225Black1900HYC23-43
HY44-43-33SS4304433038632324Silver2600HYC33-43
HY44-43-33BB4304433038632324Black2600HYC33-43
HY70-23-23SS2307023118658225Silver1600HYC23-23
HY70-23-23BB2307023118658225Black1600HYC23-23
HY70-23-33SS2307033018658324Silver2200HYC33-23
HY70-23-33BB2307033018658324Black2200HYC33-23
HY70-28-23SS2807023123658225Silver1800HYC23-28
HY70-28-23BB2807023123658225Black1800HYC23-28
HY70-28-33SS2807033023658324Silver2500HYC33-28
HY70-28-33BB2807033023658324Black2500HYC33-28
HY70-33-23SS3307023128658225Silver2000HYC23-33
HY70-33-23BB3307023128658225Black2000HYC23-33
HY70-33-33SS3307033028658324Silver2800HYC33-33
HY70-33-33BB3307033028658324Black2800HYC33-33
HY70-43-23SS4307023138658225Silver2300HYC23-43
HY70-43-23BB4307023138658225Black2300HYC23-43
HY70-43-33SS4307033038658324Silver3200HYC33-43
HY70-43-33BB4307033038658324Black3200HYC33-43
HY88-23-23SS2308823118676225Silver1900HYC23-23
HY88-23-23BB2308823118676225Black1900HYC23-23
HY88-23-33SS2308833018676324Silver2600HYC33-23
HY88-23-33BB2308833018676324Black2600HYC33-23
HY88-28-23SS2808823123676225Silver2100HYC23-28
HY88-28-23BB2808823123676225Black2100HYC23-28
HY88-28-33SS2808833023676324Silver2800HYC33-28
HY88-28-33BB2808833023676324Black2800HYC33-28
HY88-33-23SS3308823128676225Silver2300HYC23-33
HY88-33-23BB3308823128676225Black2300HYC23-33
HY88-33-33SS3308833028676324Silver3100HYC33-33
HY88-33-33BB3308833028676324Black3100HYC33-33
HY88-43-23SS4308823138676225Silver2700HYC23-43
HY88-43-23BB4308823138676225Black2700HYC23-43
HY88-43-33SS4308833038676324Silver3600HYC33-43
HY88-43-33BB4308833038676324Black3600HYC33-43
HY99-23-23SS2309923118687225Silver2100HYC23-23
HY99-23-23BB2309923118687225Black2100HYC23-23
HY99-23-33SS2309933018687324Silver2700HYC33-23
HY99-23-33BB2309933018687324Black2700HYC33-23
HY99-28-23SS2809923123687225Silver2300HYC23-28
HY99-28-23BB2809923123687225Black2300HYC23-28
HY99-28-33SS2809933023687324Silver3100HYC33-28
HY99-28-33BB2809933023687324Black3100HYC33-28
HY99-33-23SS3309923128687225Silver2500HYC23-33
HY99-33-23BB3309923128687225Black2500HYC23-33
HY99-33-33SS3309933028687324Silver3400HYC33-33
HY99-33-33BB3309933028687324Black3400HYC33-33
HY99-43-23SS4309923138687225Silver2900HYC23-43
HY99-43-23BB4309923138687225Black2900HYC23-43
HY99-43-33SS4309933038687324Silver3900HYC33-43
HY99-43-33BB4309933038687324Black3900HYC33-43
HY133-23-23SS230132.5231186120.5225Silver2600HYC23-23
HY133-23-23BB230132.5231186120.5225Black2600HYC23-23
HY133-23-33SS230132.5330186120.5324Silver3400HYC33-23
HY133-23-33BB230132.5330186120.5324Black3400HYC33-23
HY133-28-23SS280132.5231236120.5225Silver2800HYC23-28
HY133-28-23BB280132.5231236120.5225Black2800HYC23-28
HY133-28-33SS280132.5330236120.5324Silver3800HYC33-28
HY133-28-33BB280132.5330236120.5324Black3800HYC33-28
HY133-33-23SS330132.5231286120.5225Silver3000HYC23-33
HY133-33-23BB330132.5231286120.5225Black3000HYC23-33
HY133-33-33SS330132.5330286120.5324Silver4100HYC33-33
HY133-33-33BB330132.5330286120.5324Black4100HYC33-33
HY133-43-23SS430132.5231386120.5225Silver3500HYC23-43
HY133-43-23BB430132.5231386120.5225Black3500HYC23-43
HY133-43-33SS430132.5330386120.5324Silver4700HYC33-43
HY133-43-33BB430132.5330386120.5324Black4700HYC33-43
HY149-23-23SS230149231186137225Silver2800HYC23-23
HY149-23-23BB230149231186137225Black2800HYC23-23
HY149-23-33SS230149330186137324Silver3800HYC33-23
HY149-23-33BB230149330186137324Black3800HYC33-23
HY149-28-23SS280149231236137225Silver3100HYC23-28
HY149-28-23BB280149231236137225Black3100HYC23-28
HY149-28-33SS280149330236137324Silver4200HYC33-28
HY149-28-33BB280149330236137324Black4200HYC33-28
HY149-33-23SS330149231286137225Silver3300HYC23-33
HY149-33-23BB330149231286137225Black3300HYC23-33
HY149-33-33SS330149330286137324Silver4500HYC33-33
HY149-33-33BB330149330286137324Black4500HYC33-33
HY149-43-23SS430149231386137225Silver3800HYC23-43
HY149-43-23BB430149231386137225Black3800HYC23-43
HY149-43-33SS430149330386137324Silver5100HYC33-43
HY149-43-33BB430149330386137324Black5100HYC33-43
HY177-23-23SS230177231186165225Silver3400HYC23-23
HY177-23-23BB230177231186165225Black3400HYC23-23
HY177-23-33SS230177330186165324Silver4500HYC33-23
HY177-23-33BB230177330186165324Black4500HYC33-23
HY177-28-23SS280177231236165225Silver3600HYC23-28
HY177-28-23BB280177231236165225Black3600HYC23-28
HY177-28-33SS280177330236165324Silver4800HYC33-28
HY177-28-33BB280177330236165324Black4800HYC33-28
HY177-33-23SS330177231286165225Silver3900HYC23-33
HY177-33-23BB330177231286165225Black3900HYC23-33
HY177-33-33SS330177330286165324Silver5200HYC33-33
HY177-33-33BB330177330286165324Black5200HYC33-33
HY177-43-23SS430177231386165225Silver4500HYC23-43
HY177-43-23BB430177231386165225Black4500HYC23-43
HY177-43-33SS430177330386165324Silver5800HYC33-43
HY177-43-33BB430177330386165324Black5800HYC33-43
