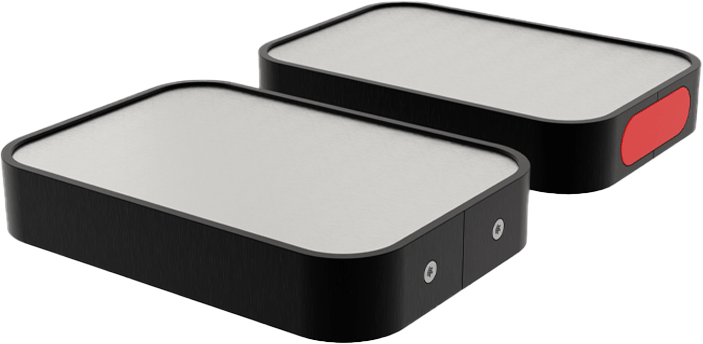

Series FRE
flexible rounded enclosure
- Height, width and depth can be variably configured to suit your requirement
- Simplified assembly and integration of your applications
- Curved fronts as design elements with the highest precision
- Anodized surfaces, interior surfaces conductively passivated on request (RoHS compliant)
- Modular structure enables high flexibility and functionality
- Individual processing and labeling possible
Modern form – high flexibility
The development of the FRE series impresses with its very high level of flexibility and modern design in harmony with its very high level of ease of assembly. The modern design made of aluminum allows access to all components. Numerous processing options and individual labeling provide you with absolute flexibility and uncompromising functionality.
Your Ideas – no limits
The elegant design allows for a high level of flexibility and sets new standards. Thanks to the diversity, we can achieve a perfect installation of your electronics.
Everything starts with the electronic
With this FRE series, you will find the perfect solution for your electronic application. Put the finishing touches on your electronics and impress your customers with quality and functionality.
Composition:
Two curved aluminum elements form the base of the enclosure. In combination with aluminum cover plates, a decorative cover for your electronics is created.
Application:
The FRE series is suitable for a wide range of electronic boards, and the modular design enables the integration of non-standard components and printed circuit boards.
Surface finish:
Surfaces are naturally anodized. Inner surfaces, on request, are conductively passivated. Other surface treatments on request.
Individual customization:
We would be pleased to offer you the housing in customer-specific dimensions, including machining and printing.
Components
| No. | Part name | Pcs | Material | Surface treatment | |
|---|---|---|---|---|---|
| 1 | Coversheets | 2 | Alu t = 2 mm | Natural anodized | Part of delivery |
| 2 | Front panel | 2 | Alu t = 3 mm | Natural anodized | Part of delivery |
| 3 | Connector | 2 | Alu t = 2 mm | Natural aluminium | Part of delivery |
| 4 | Screws | 4 | Steel M3x6 | Zinc plated | Part of delivery |

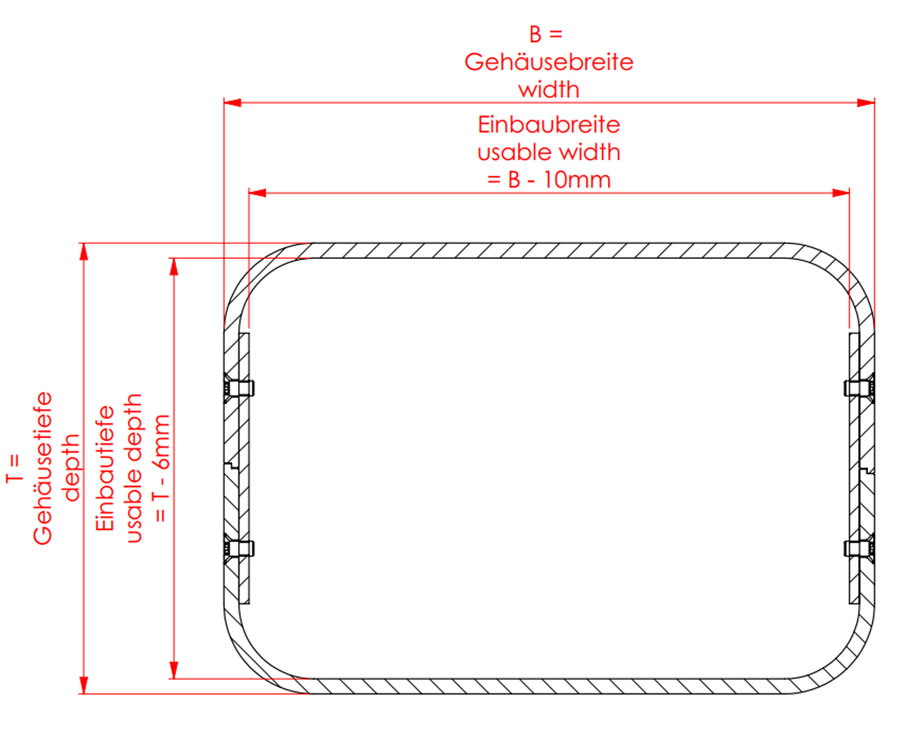

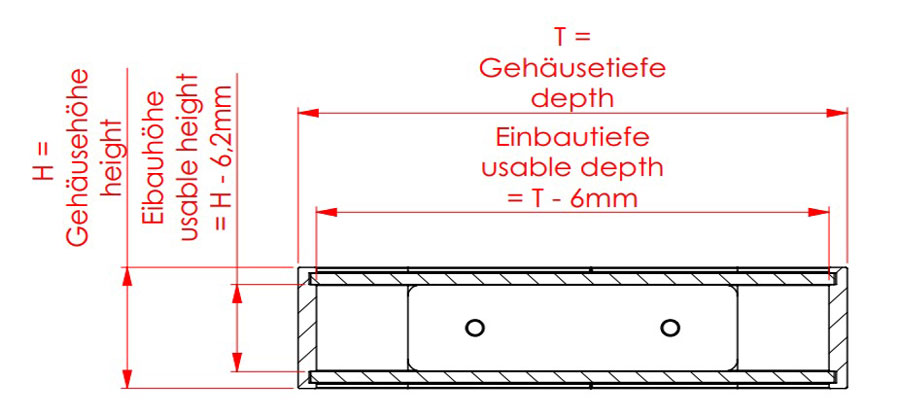

Dimensions
The article number is determined from the enclosure height H, enclosure width B and enclosure depth T in mm.
FRE H B T
Example: enclosure height H = 30 mm ; enclosure width B = 150 mm ; enclosure depth T = 106 mm.
FRE 30 150 106

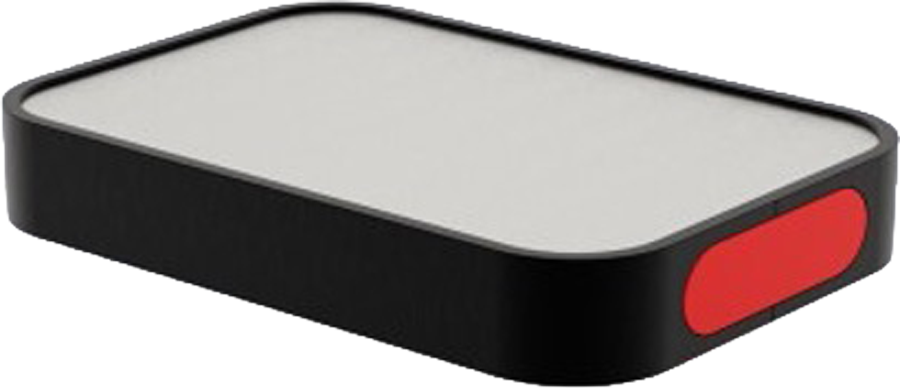

Series FREC
flexible rounded enclosure closed
- Height, width and depth can be variably configured to suit your requirement
- Simplified assembly and integration of your applications
- Curved fronts as design elements with the highest precision
- Anodized surfaces, interior surfaces conductively passivated on request (RoHS compliant)
- Modular structure enables high flexibility and functionality
- Individual processing and labeling possible
- Screws covered by a panel for a seamless design
- Additional protection against unauthorized access and environmental influences
- Modern, smooth appearance without visible connecting elements
- Simplified cleaning thanks to closed surfaces
Modern form – high flexibility
The development of the FRE series impresses with its high level of flexibility and modern design, combined with outstanding ease of assembly. The aluminum construction allows full access to all components. Numerous machining options and individual labeling provide you with maximum flexibility and uncompromising functionality.
The FREC extension features a design without visible screws.
Your Ideas – no limits
The elegant design allows for a high degree of flexibility and sets new standards. Thanks to its versatility, we can achieve the perfect installation of your electronics.
Everything starts with the electronic
With the FRE series, you will find the perfect solution for your electronic application. Put the finishing touches on your electronics and impress your customers with quality and functionality.
Composition:
Two curved aluminum elements form the base of the enclosure. Combined with aluminum cover plates, they create a decorative shell for your electronics. The screw cover is made of 1.2 mm aluminum sheet and also allows for a customized design.
Application:
The FRE series is suitable for a wide variety of electronic boards. Its modular design enables the integration of non-standard components and printed circuit boards.
Surface finish:
Surfaces are naturally anodized. Interior surfaces can be conductively passivated upon request. Other surface treatments are available on request.
Individual customization:
We would be pleased to offer you the housing in customer-specific dimensions, including machining and printing.
Components
| No. | Part name | Pcs | Material | Surface treatment | |
|---|---|---|---|---|---|
| 1 | Coversheets | 2 | Alu t = 2 mm | Natural anodized | Part of delivery |
| 2 | Front panel | 2 | Alu t = 3 mm | Natural anodized | Part of delivery |
| 3 | Connector | 2 | Alu t = 2 mm | Natural aluminium | Part of delivery |
| 4 | Screw cover | 2 | Alu t = 1,2 mm | Natural anodized | Part of delivery |
| 5 | Screws | 4 | Steel M3x6 | Zinc plated | Part of delivery |

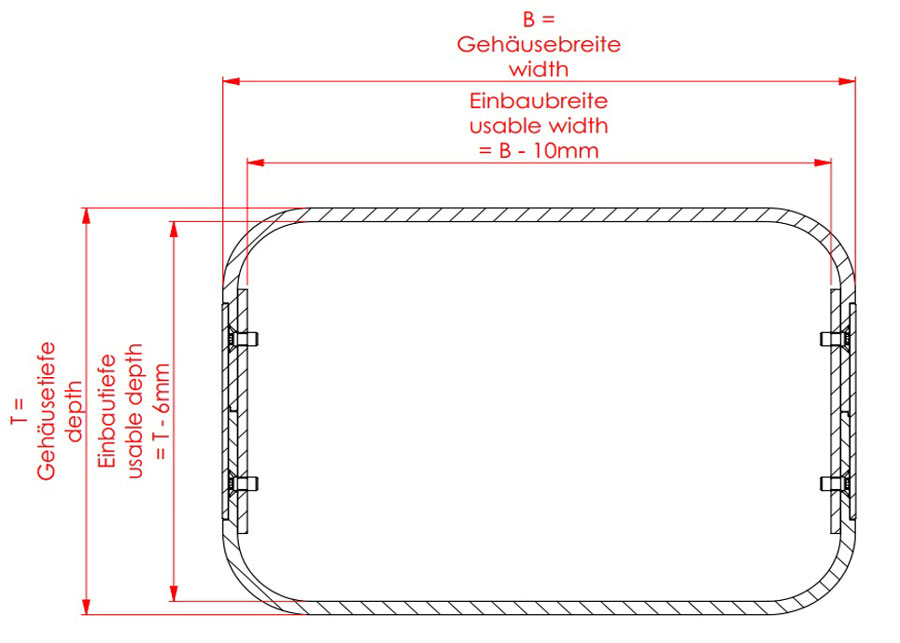

Dimensions
The article number is determined from the enclosure height H, enclosure width B and enclosure depth T in mm.
FREC H B T
Example: enclosure height H = 30 mm ; enclosure width B = 150 mm ; enclosure depth T = 106 mm.
FREC 30 150 106
