Series FC

ALUMINUM CONTROL BOX

Series FC

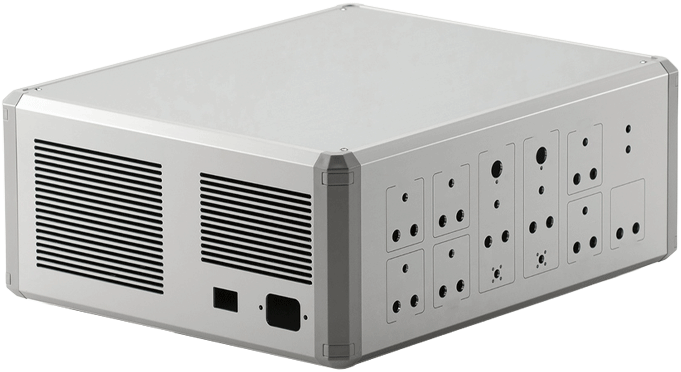

Simple designed aluminium utility box composed of extruded aluminium frames, aluminium panels and ABS corner joints.
Suitable for touch panel display, industrial control equipment, and various other devices.

175 different sizes in 4 different color variations available.

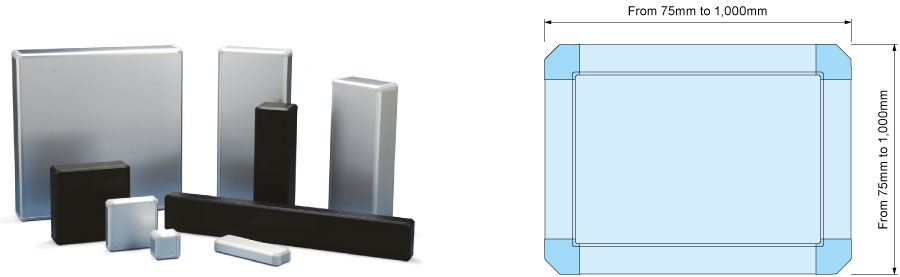

Custom size is available.
↓See FCS series page for the custom width / length (depth) order from 75～1,000mm in 1mm intervals.

Color Type

G S		B S		B X		B B

Panel	Silver	Panel	Silver	Panel	Silver	Panel	Black
Frame	Silver	Frame	Silver	Frame	Black	Frame	Black
Corner	Light gray	Corner	Black	Corner	Black	Corner	Black

Components

No.	Part name	Pcs	Material	Color / Finish
1	Frame	4	Extruded aluminium A6063S-T5	Silver • Black / Anodized with clear coating
2	Corner block	4	ABS UL94HB	Light gray • Black
3	Blind plug	8	Elastomer	Light gray • Black
4	Slide panel	1	Aluminium A1100P	Silver / Anodized • Black / Painted
5	Screwed panel	1	Aluminium A1100P	Silver / Anodized • Black / Painted

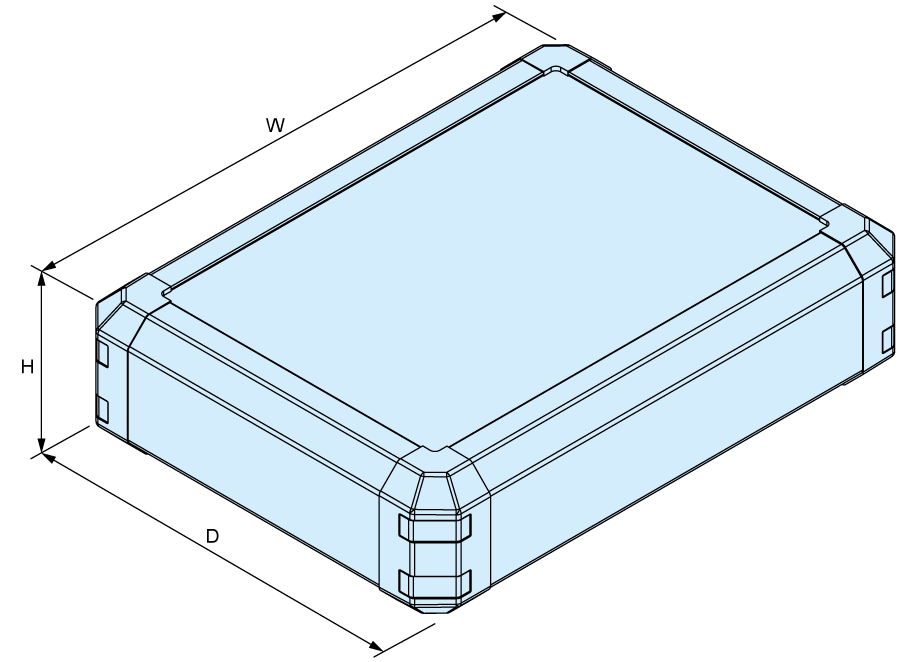

Dimensions

Product no. / Dimensions

Product no.	External dimensions			Internal dimensions			Weight (g)	Mounting plate
Product no.	W	H	D	w	h	d	Weight (g)	(Option)
FC4-9-9□	90	37.9	90	54	31.5	54	170
FC4-14-9□	140	37.9	90	104	31.5	54	240
FC4-14-14□	140	37.9	140	104	31.5	104	330
FC4-19-9□	190	37.9	90	154	31.5	54	310
FC4-19-14□	190	37.9	140	154	31.5	104	500
FC4-19-19□	190	37.9	190	154	31.5	154	530
FC4-24-14□	240	37.9	140	204	31.5	104	510
FC4-24-19□	240	37.9	190	204	31.5	154	640
FC4-24-24□	240	37.9	240	204	31.5	204	780
FC4-29-14□	290	37.9	140	254	31.5	104	600
FC4-29-19□	290	37.9	190	254	31.5	154	750
FC4-29-24□	290	37.9	240	254	31.5	204	910
FC4-29-29□	290	37.9	290	254	31.5	254	1070
FC4-34-19□	340	37.9	190	304	31.5	154	870
FC4-34-24□	340	37.9	240	304	31.5	204	1040
FC4-34-29□	340	37.9	290	304	31.5	254	940
FC4-39-19□	390	37.9	190	354	31.5	154	970
FC4-39-24□	390	37.9	240	354	31.5	204	1170
FC4-39-29□	390	37.9	290	354	31.5	254	1370
FC4-39-39□	390	37.9	390	354	31.5	354	1770
FC4-49-24□	490	37.9	240	454	31.5	204	1390
FC4-49-29□	490	37.9	290	454	31.5	254	1640
FC4-49-39□	490	37.9	390	454	31.5	354	2120
FC4-59-29□	590	37.9	290	554	31.5	254	1920
FC4-59-39□	590	37.9	390	554	31.5	354	2460
FC5-10-10□	100	50.4	100	54	44	54	240	FCC10-10-1
FC5-15-10□	150	50.4	100	104	44	54	330	FCC15-10-1
FC5-15-15□	150	50.4	150	104	44	104	440	FCC15-15-1
FC5-20-10□	200	50.4	100	154	44	54	420	FCC20-10-1
FC5-20-15□	200	50.4	150	154	44	104	550	FCC20-15-1
FC5-20-20□	200	50.4	200	154	44	154	680	FCC20-20-1
FC5-25-15□	250	50.4	150	204	44	104	660	FCC25-15-1
FC5-25-20□	250	50.4	200	204	44	154	810	FCC25-20-1
FC5-25-25□	250	50.4	250	204	44	204	970	FCC25-25-1
FC5-30-15□	300	50.4	150	254	44	104	770	FCC30-15-1
FC5-30-20□	300	50.4	200	254	44	154	940	FCC30-20-1
FC5-30-25□	300	50.4	250	254	44	204	1110	FCC30-25-1
FC5-30-30□	300	50.4	300	254	44	254	1290	FCC30-30-1
FC5-35-20□	350	50.4	200	304	44	154	1070	FCC35-20-1
FC5-35-25□	350	50.4	250	304	44	204	1260	FCC35-25-1
FC5-35-30□	350	50.4	300	304	44	254	1460	FCC35-30-1
FC5-40-20□	400	50.4	200	354	44	154	1200	FCC40-20-1
FC5-40-25□	400	50.4	250	354	44	204	1420	FCC40-25-1
FC5-40-30□	400	50.4	300	354	44	254	1640	FCC40-30-1
FC5-40-40□	400	50.4	400	354	44	354	2070	FCC40-40-1
FC5-50-25□	500	50.4	250	454	44	204	1660	FCC50-25-1
FC5-50-30□	500	50.4	300	454	44	254	1920	FCC50-30-1
FC5-50-40□	500	50.4	400	454	44	354	2440	FCC50-40-1
FC5-60-30□	600	50.4	300	554	44	254	2220	FCC60-30-1
FC5-60-40□	600	50.4	400	554	44	354	2810	FCC60-40-1
FC6-10-10□	100	62.9	100	54	56.5	54	260	FCC10-10-1
FC6-15-10□	150	62.9	100	104	56.5	54	350	FCC15-10-1
FC6-15-15□	150	62.9	150	104	56.5	104	470	FCC15-15-1
FC6-20-10□	200	62.9	100	154	56.5	54	450	FCC20-10-1
FC6-20-15□	200	62.9	150	154	56.5	104	580	FCC20-15-1
FC6-20-20□	200	62.9	200	154	56.5	154	720	FCC20-20-1
FC6-25-15□	250	62.9	150	204	56.5	104	700	FCC25-15-1
FC6-25-20□	250	62.9	200	204	56.5	154	850	FCC25-20-1
FC6-25-25□	250	62.9	250	204	56.5	204	1010	FCC25-25-1
FC6-30-15□	300	62.9	150	254	56.5	104	810	FCC30-15-1
FC6-30-20□	300	62.9	200	254	56.5	154	990	FCC30-20-1
FC6-30-25□	300	62.9	250	254	56.5	204	1160	FCC30-25-1
FC6-30-30□	300	62.9	300	254	56.5	254	1350	FCC30-30-1
FC6-35-20□	350	62.9	200	304	56.5	154	1120	FCC35-20-1
FC6-35-25□	350	62.9	250	304	56.5	204	1320	FCC35-25-1
FC6-35-30□	350	62.9	300	304	56.5	254	1520	FCC35-30-1
FC6-40-20□	400	62.9	200	354	56.5	154	1250	FCC40-20-1
FC6-40-25□	400	62.9	250	354	56.5	204	1470	FCC40-25-1
FC6-40-30□	400	62.9	300	354	56.5	254	1700	FCC40-30-1
FC6-40-40□	400	62.9	400	354	56.5	354	2150	FCC40-40-1
FC6-50-25□	500	62.9	250	454	56.5	204	1720	FCC50-25-1
FC6-50-30□	500	62.9	300	454	56.5	254	1990	FCC50-30-1
FC6-50-40□	500	62.9	400	454	56.5	354	2520	FCC50-40-1
FC6-60-30□	600	62.9	300	554	56.5	254	2290	FCC60-30-1
FC6-60-40□	600	62.9	400	554	56.5	354	2430	FCC60-40-1
FC8-10-10□	100	75.4	100	54	69	54	280	FCC10-10-1
FC8-15-10□	150	75.4	100	104	69	54	380	FCC15-10-1
FC8-15-15□	150	75.4	150	104	69	104	500	FCC15-15-1
FC8-20-10□	200	75.4	100	154	69	54	480	FCC20-10-1
FC8-20-15□	200	75.4	150	154	69	104	620	FCC20-15-1
FC8-20-20□	200	75.4	200	154	69	154	760	FCC20-20-1
FC8-25-15□	250	75.4	150	204	69	104	740	FCC25-15-1
FC8-25-20□	250	75.4	200	204	69	154	900	FCC25-20-1
FC8-25-25□	250	75.4	250	204	69	204	1070	FCC25-25-1
FC8-30-15□	300	75.4	150	254	69	104	860	FCC30-15-1
FC8-30-20□	300	75.4	200	254	69	154	1040	FCC30-20-1
FC8-30-25□	300	75.4	250	254	69	204	1230	FCC30-25-1
FC8-30-30□	300	75.4	300	254	69	254	1420	FCC30-30-1
FC8-35-20□	350	75.4	200	304	69	154	1190	FCC35-20-1
FC8-35-25□	350	75.4	250	304	69	204	1390	FCC35-25-1
FC8-35-30□	350	75.4	300	304	69	254	1510	FCC35-30-1
FC8-40-20□	400	75.4	200	354	69	154	1320	FCC40-20-1
FC8-40-25□	400	75.4	250	354	69	204	1460	FCC40-25-1
FC8-40-30□	400	75.4	300	354	69	254	1780	FCC40-30-1
FC8-40-40□	400	75.4	400	354	69	354	2240	FCC40-40-1
FC8-50-25□	500	75.4	250	454	69	204	1810	FCC50-25-1
FC8-50-30□	500	75.4	300	454	69	254	2080	FCC50-30-1
FC8-50-40□	500	75.4	400	454	69	354	2620	FCC50-40-1
FC8-60-30□	600	75.4	300	554	69	254	2390	FCC60-30-1
FC8-60-40□	600	75.4	400	554	69	354	3000	FCC60-40-1
FC10-10-10□	100	100.4	100	54	94	54	310	FCC10-10-1
FC10-15-10□	150	100.4	100	104	94	54	430	FCC15-10-1
FC10-15-15□	150	100.4	150	104	94	104	560	FCC15-15-1
FC10-20-10□	200	100.4	100	154	94	54	540	FCC20-10-1
FC10-20-15□	200	100.4	150	154	94	104	700	FCC20-15-1
FC10-20-20□	200	100.4	200	154	94	154	850	FCC20-20-1
FC10-25-15□	250	100.4	150	204	94	104	830	FCC25-15-1
FC10-25-20□	250	100.4	200	204	94	154	1010	FCC25-20-1
FC10-25-25□	250	100.4	250	204	94	204	1190	FCC25-25-1
FC10-30-15□	300	100.4	150	254	94	104	970	FCC30-15-1
FC10-30-20□	300	100.4	200	254	94	154	1160	FCC30-20-1
FC10-30-25□	300	100.4	250	254	94	204	1360	FCC30-25-1
FC10-30-30□	300	100.4	300	254	94	254	1570	FCC30-30-1
FC10-35-20□	350	100.4	200	304	94	154	1320	FCC35-20-1
FC10-35-25□	350	100.4	250	304	94	204	1540	FCC35-25-1
FC10-35-30□	350	100.4	300	304	94	254	1770	FCC35-30-1
FC10-40-20□	400	100.4	200	354	94	154	1470	FCC40-20-1
FC10-40-25□	400	100.4	250	354	94	204	1720	FCC40-25-1
FC10-40-30□	400	100.4	300	354	94	254	1960	FCC40-30-1
FC10-40-40□	400	100.4	400	354	94	354	2450	FCC40-40-1
FC10-50-25□	500	100.4	250	454	94	204	1990	FCC50-25-1
FC10-50-30□	500	100.4	300	454	94	254	2270	FCC50-30-1
FC10-50-40□	500	100.4	400	454	94	354	2840	FCC50-40-1
FC10-60-30□	600	100.4	300	554	94	254	2600	FCC60-30-1
FC10-60-40□	600	100.4	400	554	94	354	2700	FCC60-40-1
FC13-10-10□	100	125.4	100	54	119	54	350	FCC10-10-1
FC13-15-10□	150	125.4	100	104	119	54	470	FCC15-10-1
FC13-15-15□	150	125.4	150	104	119	104	610	FCC15-15-1
FC13-20-10□	200	125.4	100	154	119	54	590	FCC20-10-1
FC13-20-15□	200	125.4	150	154	119	104	750	FCC20-15-1
FC13-20-20□	200	125.4	200	154	119	154	920	FCC20-20-1
FC13-25-15□	250	125.4	150	204	119	104	900	FCC25-15-1
FC13-25-20□	250	125.4	200	204	119	154	1080	FCC25-20-1
FC13-25-25□	250	125.4	250	204	119	204	1270	FCC25-25-1
FC13-30-15□	300	125.4	150	254	119	104	1040	FCC30-15-1
FC13-30-20□	300	125.4	200	254	119	154	1240	FCC30-20-1
FC13-30-25□	300	125.4	250	254	119	204	1440	FCC30-25-1
FC13-30-30□	300	125.4	300	254	119	254	1660	FCC30-30-1
FC13-35-20□	350	125.4	200	304	119	154	1400	FCC35-20-1
FC13-35-25□	350	125.4	250	304	119	204	1630	FCC35-25-1
FC13-35-30□	350	125.4	300	304	119	254	1860	FCC35-30-1
FC13-40-20□	400	125.4	200	354	119	154	1560	FCC40-20-1
FC13-40-25□	400	125.4	250	354	119	204	1810	FCC40-25-1
FC13-40-30□	400	125.4	300	354	119	254	2060	FCC40-30-1
FC13-40-40□	400	125.4	400	354	119	354	2560	FCC40-40-1
FC13-50-25□	500	125.4	250	454	119	204	2090	FCC50-25-1
FC13-50-30□	500	125.4	300	454	119	254	2380	FCC50-30-1
FC13-50-40□	500	125.4	400	454	119	354	2960	FCC50-40-1
FC13-60-30□	600	125.4	300	554	119	254	2890	FCC60-30-1
FC13-60-40□	600	125.4	400	554	119	354	3360	FCC60-40-1
FC15-10-10□	100	150.4	100	54	144	54	400	FCC10-10-1
FC15-15-10□	150	150.4	100	104	144	54	540	FCC15-10-1
FC15-15-15□	150	150.4	150	104	144	104	700	FCC15-15-1
FC15-20-10□	200	150.4	100	154	144	54	680	FCC20-10-1
FC15-20-15□	200	150.4	150	154	144	104	850	FCC20-15-1
FC15-20-20□	200	150.4	200	154	144	154	1040	FCC20-20-1
FC15-25-15□	250	150.4	150	204	144	104	1020	FCC25-15-1
FC15-25-20□	250	150.4	200	204	144	154	1220	FCC25-20-1
FC15-25-25□	250	150.4	250	204	144	204	1420	FCC25-25-1
FC15-30-15□	300	150.4	150	254	144	104	1170	FCC30-15-1
FC15-30-20□	300	150.4	200	254	144	154	1400	FCC30-20-1
FC15-30-25□	300	150.4	250	254	144	204	1620	FCC30-25-1
FC15-30-30□	300	150.4	300	254	144	254	1850	FCC30-30-1
FC15-35-20□	350	150.4	200	304	144	154	1580	FCC35-20-1
FC15-35-25□	350	150.4	250	304	144	204	1820	FCC35-25-1
FC15-35-30□	350	150.4	300	304	144	254	2070	FCC35-30-1
FC15-40-20□	400	150.4	200	354	144	154	1760	FCC40-20-1
FC15-40-25□	400	150.4	250	354	144	204	2020	FCC40-25-1
FC15-40-30□	400	150.4	300	354	144	254	2290	FCC40-30-1
FC15-40-40□	400	150.4	400	354	144	354	2830	FCC40-40-1
FC15-50-25□	500	150.4	250	454	144	204	2320	FCC50-25-1
FC15-50-30□	500	150.4	300	454	144	254	2630	FCC50-30-1
FC15-50-40□	500	150.4	400	454	144	354	3250	FCC50-40-1
FC15-60-30□	600	150.4	300	554	144	254	2980	FCC60-30-1
FC15-60-40□	600	150.4	400	554	144	354	3660	FCC60-40-1
