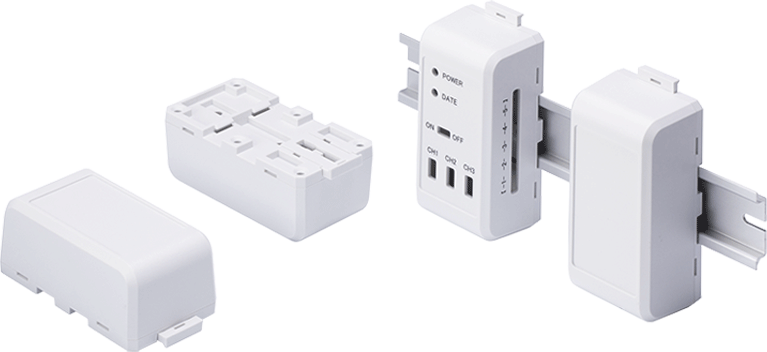

Series DRC
DIN RAIL BOX
- Operating temperature: -20°C ~ +60°C
- Plastic enclosure with mount bracket for 35mm DIN Rail.
- 3 new sizes added for a total of 4 different sizes available for selection.
- Toolless snap-in structure allows for quick and easy assembly.
- Simple installation and removal on a DIN Rail with the pull lever.
- Suitable for network module, controller, data logger and others.
Plastic enclosure with mount bracket for 35mm DIN Rail.
3 new sizes added for a total of 4 different sizes available for selection.
Toolless snap-in structure allows for quick and easy assembly.
Simple installation and removal on a DIN Rail with the pull lever.
Suitable for network module, controller, data logger and others.
Components
| No. | Part name | Pcs | Materials | Color / Finish |
|---|---|---|---|---|
| 1 | Cover | 1 | PC/ABS (UL94V-0) | Off-white |
| 2 | Base | 1 | PC/ABS (UL94V-0) | Off-white |
| 3 | Compression spring | 1 | SUS304 | Unfinished |
| 4 | Lever | 1 | PC/ABS (UL94V-0) | Off-white |
Dimensions
Product no. / Details
| Product no. | External dimensions | Internal dimensions | Weight (g) | ||||
|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | ||
| DRC4-4-9W | 38 | 35 | 93 | 27 | 20.5 | 74.7 | 44.1 |
| DRC5-4-9W | 47 | 35 | 93 | 36 | 20.5 | 74.7 | 51.6 |
| DRC7-4-9W | 65 | 35 | 93 | 54 | 20.5 | 74.7 | 65.4 |
| DRC9-4-9W | 90 | 35 | 93 | 79 | 20.5 | 74.7 | 83.9 |
