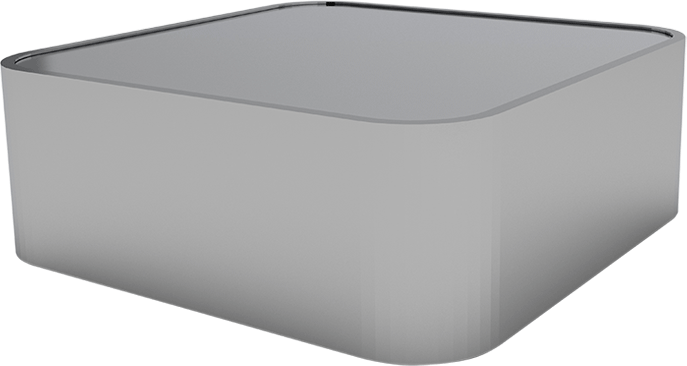

Series CEX
compact design without visible screws
- Protection class: IP40
- Protection class: IP54
- No visible screws - only four screws in the bottom.
- Direct mounting of printed circuit boards or mounting plates possible.
- Protection class IP40, IP54 with EMC gaskets.
- EMC - sealing kit available as an option.
- Curved front panels and side panels, made of aluminium extrusions in highest precision.
- Heights from 0.5U to 4U, many standard sizes available ,special sizes available on request.
- Surfaces anodized outside, inner surfaces conductive on request passivated (RoHS compliant).
- Modular design enables high flexibility and functionality.
- Individual processing and labeling possible.
Modern form – various functions
Many aspects of the most diverse application possibilities were taken into account during the development. The modern design made of aluminum allows access to all components. Numerous processing options and individual labeling provide you with absolute flexibility and uncompromising functionality.
Your ideas – no limits
The compact design without visible screws allows a wide range of variations and a perfect installation of your of your electronics.
Everything starts with the electronic
with this series cex you will find the perfect solution for your electronic application. Put the finishing touches on your electronics and impress your customers with quality and functionality.
Composition:
Two curved aluminum elements form the foundation of the housing. Together with further components a
decorative shell for your electronics. Curved front panels and side panels made of aluminum extrusions. Cover plates made of 2 mm aluminum sheet.
Application:
The CEX series is suitable for a wide range of electronic boards and the modular design enables the integration of non-standard components and printed circuit boards.
Surface finish:
Exterior surfaces are natural anodized. Inner surfaces on request conductive passivated. Other surface treatments on request.
Individual customization:
We would be pleased to offer you the housing in customer specific dimensions incl. machining and printing.
Components
| No. | Part name | Pcs | Material | Color / Finish |
|---|---|---|---|---|
| 1 | Top cover | 1 | ABS UL94HB | White • Black |
| 2 | Bottom cover | 1 | ABS UL94HB | White • Black |
| 3 | Battery cover | 1 | ABS UL94HB | White • Black |
| 4 | Battery contact | 1 set / 2 sets (CSS115) | Stainless steel SUS304 | Nickel plated |
| 5 | Silicone cover | 1 | Silicone | Orange • Green • Cyan • Light gray • Black |
| 6 | Self-tapping screw | 4 | Steel M1.6-6 | Nickel plated • Black trivalent chromate |
CEX 22
| enclosure height | for card width | card length | card length | card length | card length | encosure depth |
|---|---|---|---|---|---|---|
| A | 100 mm - B | 160 mm - B | 220 mm - B | 280 mm - B | 450 mm | |
| 0,5 HE (22) | 100 | CEX221010□ | CEX221016□ | CEX221022□ | CEX221028□ | CEX221045□ |
| 0,5 HE (22) | 160 | CEX221610□ | CEX221616□ | CEX221622□ | CEX221628□ | CEX221645□ |
| 0,5 HE (22) | 233,6 | CEX222310□ | CEX222316□ | CEX222322□ | CEX222328□ | CEX222345□ |
| 0,5 HE (22) | 367 | CEX223610□ | CEX223616□ | CEX223622□ | CEX223628□ | CEX223645□ |
CEX 44
| enclosure height | for card width | card length | card length | card length | card length | encosure depth |
|---|---|---|---|---|---|---|
| A | 100 mm - B | 160 mm - B | 220 mm - B | 280 mm - B | 450 mm | |
| 1 HE (44) | 100 | CEX441010□ | CEX441016□ | CEX441022□ | CEX441028□ | CEX441045□ |
| 1 HE (44) | 160 | CEX441610□ | CEX441616□ | CEX441622□ | CEX441628□ | CEX441645□ |
| 1 HE (44) | 233,5 | CEX442310□ | CEX442316□ | CEX442322□ | CEX442328□ | CEX442345□ |
| 1 HE (44) | 367 | CEX443610□ | CEX443616□ | CEX443622□ | CEX443628□ | CEX443645□ |
CEX 65
| enclosure height | for card width | card length | card length | card length | card length | encosure depth |
|---|---|---|---|---|---|---|
| A | 100 mm - B | 160 mm - B | 220 mm - B | 280 mm - B | 450 mm | |
| 1 HE (44) | 100 | CEX441010□ | CEX441016□ | CEX441022□ | CEX441028□ | CEX441045□ |
| 1 HE (44) | 160 | CEX441610□ | CEX441616□ | CEX441622□ | CEX441628□ | CEX441645□ |
| 1 HE (44) | 233,5 | CEX442310□ | CEX442316□ | CEX442322□ | CEX442328□ | CEX442345□ |
| 1 HE (44) | 367 | CEX443610□ | CEX443616□ | CEX443622□ | CEX443628□ | CEX443645□ |
CEX 88
| enclosure height | for card width | card length | card length | card length | card length | encosure depth |
|---|---|---|---|---|---|---|
| A | 100 mm - B | 160 mm - B | 220 mm - B | 280 mm - B | 450 mm | |
| 2 HE (88) | 100 | CEX881010□ | CEX881016□ | CEX881022□ | CEX881028□ | CEX881045□ |
| 2 HE (88) | 160 | CEX881610□ | CEX881616□ | CEX881622□ | CEX881628□ | CEX881645□ |
| 2 HE (88) | 233,5 | CEX882310□ | CEX882316□ | CEX882322□ | CEX882328□ | CEX882345□ |
| 2 HE (88) | 367 | CEX883610□ | CEX883616□ | CEX883622□ | CEX883628□ | CEX883645□ |
CEX 13
| enclosure height | for card width | card length | card length | card length | card length | encosure depth |
|---|---|---|---|---|---|---|
| A | 100 mm - B | 160 mm - B | 220 mm - B | 280 mm - B | 450 mm | |
| 3 HE (13) | 100 | CEX131010□ | CEX131016□ | CEX131022□ | CEX131028□ | CEX131045□ |
| 3 HE (13) | 160 | CEX131610□ | CEX131616□ | CEX131622□ | CEX131628□ | CEX131645□ |
| 3 HE (13) | 233,5 | CEX132310□ | CEX132316□ | CEX132322□ | CEX132328□ | CEX132345□ |
| 3 HE (13) | 367 | CEX133610□ | CEX133616□ | CEX133622□ | CEX133628□ | CEX133645□ |
CEX 17
| enclosure height | for card width | card length | card length | card length | card length | encosure depth |
|---|---|---|---|---|---|---|
| A | 100 mm - B | 160 mm - B | 220 mm - B | 280 mm - B | 450 mm | |
| 4 HE (17) | 100 | CEX171010□ | CEX171016□ | CEX171022□ | CEX171028□ | CEX171045□ |
| 4 HE (17) | 160 | CEX171610□ | CEX171616□ | CEX171622□ | CEX171628□ | CEX171645□ |
| 4 HE (17) | 233,5 | CEX172310□ | CEX172316□ | CEX172322□ | CEX172328□ | CEX172345□ |
| 4 HE (17) | 367 | CEX173610□ | CEX173616□ | CEX173622□ | CEX173628□ | CEX173645□ |

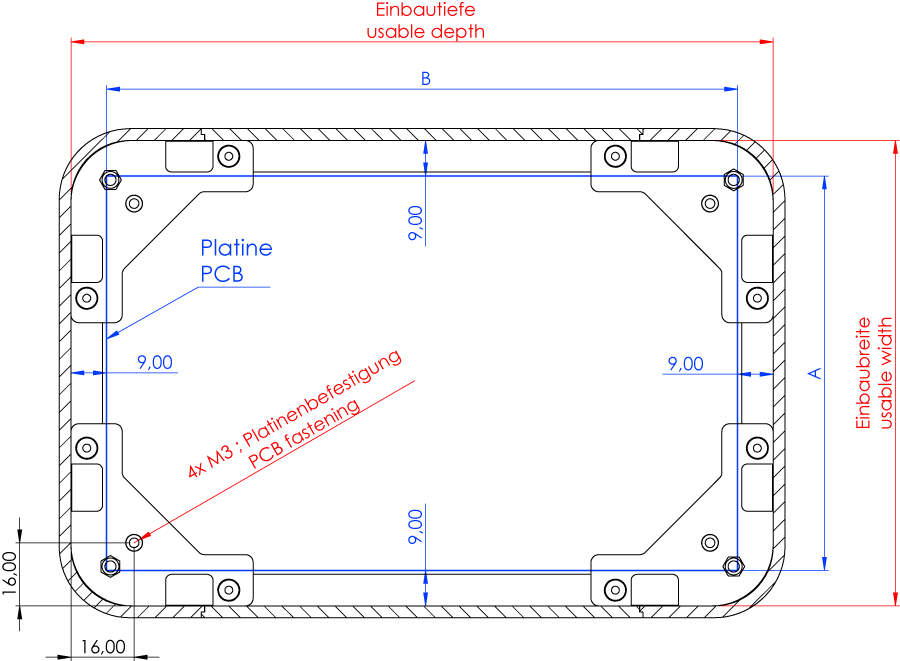

Usable depth
Dimensions
Profile overview
Product no. / Dimensions
| No. | Part name | Pcs | Material | Color / Finish | |
|---|---|---|---|---|---|
| 1 | Cover sheet | 1 | Alu t = 2 mm | Natural anodized | Part of delivery |
| 2 | Bottom sheet | 1 | Alu t = 2 mm | Natural anodized | Part of delivery |
| 3 | Side profile | 2 | Alu extrusion profile | Natural anodized | Part of delivery |
| 4 | Front panel profile | 2 | Alu extrusion profile | Natural anodized | Part of delivery |
| 5 | Corner connector | 4 | Alu t = 1,5 mm | Natural aluminium | Part of delivery |
| 6 | Screw | 8 | Steel M2,5 x 5 | Zinc plated | Part of delivery |
| 7 | Screw | 4 | Steel M3 x 6 | Zinc plated | Part of delivery |
| 8 | Screw | 8 | Steel M3 x 3 | Zinc plated | Part of delivery |
Optional parts
