Series BCPK
IP65 POLYCARBONATE PLASTIC BOX with LOCK
- Protection class: IP65
- Operating temperature: -20°C ~ +75°C
- Lockable enclosure best used for tamper prevention in FA, control box, and network communication fields.
- BCPK polycarbonate box is resistant against heat and flames. 50 different sizes available and selectable from 2 different cover types, Light gray and Transparent (BTO).
- BCPK507018, 507025, 608018, and 608028 models are only available as S color type.

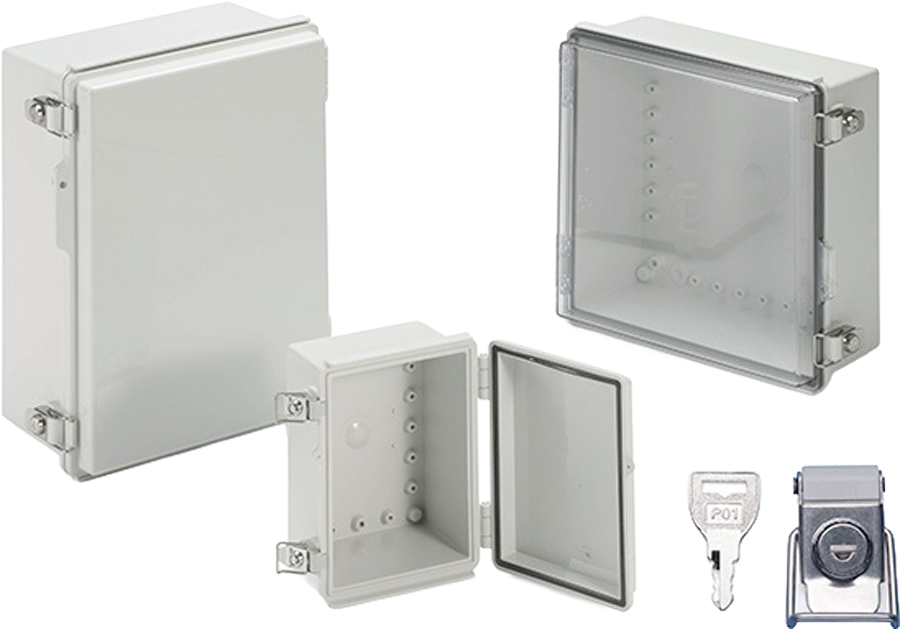

IP65 hinged polycarbonate enclosure equipped with key lock latch.
Made of light gray UL94V-0 polycarbonate, which has good heat resistance properties.
Lockable enclosure best used for tamper prevention in FA, control box, and network communication fields.
Line-up:
Light gray cover types : 50 different sizes
Transparent cover types : 46 different sizes (BTO in extra lead time of 2 months)
Material:
Top cover (G color type) ・ Base : Polycarbonate
Color / Similar matching : Light gray / Munsell 5GY8.5/0.5
Top cover (T color type) : Polycarbonate / Transparent
Gasket : Polyurethane
Latch : Stainless steel
- Transparent cover type is available as BTO (Built-to-order) with an estimated lead-time of around 2 months.
Components
| No. | Part name | Pcs | Material | Color / Finish |
|---|---|---|---|---|
| 1 | Top cover | 1 | Polycarbonate UL94V-0 | Light gray |
| 2 | Base | 1 | Glass fiber filled polycarbonate UL94V-0 | Light gray |
| 3 | Gasket | 1 | Polyurethane | Black |
| 4 | Latch | 1 ~ 3 | Stainless steel | Unfinished |
| 5 | Screw for mounting plate | 2 ~ 8 | Steel | Trivalent chromate |
| 6 | Key | 1 ~ 3 | Diecast zinc • Brass | Chrome plated • Nickel plated |
- Stainless steel mounting brackets are included together with the following models : 506018, 506025, 507018, 507025, 608018, and 608028.
- Quantity of keys provided vary by the number of locks present.
Dimensions
Product no. / Details
| Product no. | W | D | H | Weight (g) | Delivery time |
|---|---|---|---|---|---|
| BCPK091207S | 90 | 120 | 70 | 242 | In stock |
| BCPK091208S | 90 | 120 | 85 | 264 | In stock |
| BCPK101507S | 100 | 150 | 70 | 339 | In stock |
| BCPK101508S | 100 | 150 | 85 | 360 | In stock |
| BCPK112107S | 110 | 210 | 75 | 437 | In stock |
| BCPK112110S | 110 | 210 | 100 | 501 | In stock |
| BCPK112607S | 110 | 260 | 75 | 520 | In stock |
| BCPK112610S | 110 | 260 | 100.5 | 585 | In stock |
| BCPK131508S | 135 | 155 | 85 | 430 | In stock |
| BCPK131808S | 135 | 185 | 85.5 | 474 | In stock |
| BCPK131810S | 135 | 185 | 100.5 | 471 | In stock |
| BCPK151509S | 150 | 150 | 90 | 419 | In stock |
| BCPK151512S | 150 | 150 | 120.5 | 507 | In stock |
| BCPK162110S | 160 | 210 | 100 | 563 | In stock |
| BCPK162113S | 160 | 210 | 130 | 630 | In stock |
| BCPK162610S | 160 | 260 | 100 | 728 | In stock |
| BCPK162613S | 160 | 260 | 130 | 805 | In stock |
| BCPK172210S | 170 | 220 | 105 | 664 | In stock |
| BCPK172711S | 170 | 270 | 110.5 | 771 | In stock |
| BCPK192810S | 190 | 280 | 100.5 | 875 | In stock |
| BCPK192814S | 190 | 280 | 141 | 1,065 | In stock |
| BCPK203013SN | 200 | 300 | 130 | 1,098 | In stock |
| BCPK203015SN | 200 | 300 | 150 | 1,179 | In stock |
| BCPK203018SN | 200 | 300 | 180 | 1,324 | In stock |
| BCPK212110S | 210 | 210 | 100 | 743 | In stock |
| BCPK212113S | 210 | 210 | 130 | 822 | In stock |
| BCPK253515SN | 250 | 350 | 150 | 1,513 | In stock |
| BCPK253518SN | 250 | 350 | 180 | 1,676 | In stock |
| BCPK282813S | 280 | 280 | 130.5 | 1,391 | In stock |
| BCPK283813S | 280 | 380 | 130 | 1,811 | In stock |
| BCPK303015S | 300 | 300 | 151 | 1,670 | In stock |
| BCPK303018S | 300 | 300 | 181 | 1,782 | In stock |
| BCPK304012S | 300 | 400 | 120 | 1,858 | In stock |
| BCPK304015S | 300 | 400 | 150 | 1,912 | In stock |
| BCPK304018S | 300 | 400 | 181 | 2,083 | In stock |
| BCPK353515S | 350 | 350 | 150 | 2,067 | In stock |
| BCPK353518S | 350 | 350 | 181 | 2,175 | In stock |
| BCPK354512S | 350 | 450 | 120 | 2,442 | In stock |
| BCPK354516S | 350 | 450 | 160 | 2,863 | In stock |
| BCPK354520S | 350 | 450 | 201 | 3,156 | In stock |
| BCPK405016S | 400 | 500 | 160 | 3,149 | In stock |
| BCPK405020S | 400 | 500 | 201 | 3,725 | In stock |
| BCPK406018S | 400 | 600 | 181 | 4,159 | In stock |
| BCPK406023S | 400 | 600 | 231 | 4,639 | In stock |
| BCPK506018S | 530 | 630 | 185 | 5,339 | In stock |
| BCPK506025S | 530 | 630 | 255 | 7,136 | In stock |
| BCPK507018S | 530 | 730 | 188 | 7,470 | In stock |
| BCPK507025S | 530 | 730 | 258 | 8,260 | In stock |
| BCPK608018S | 630 | 830 | 188 | 9,880 | In stock |
| BCPK608028S | 630 | 830 | 288 | 11,610 | In stock |
| BCPK091207T | 90 | 120 | 70 | 237 | 2 months |
| BCPK091208T | 90 | 120 | 85 | 261 | 2 months |
| BCPK101507T | 100 | 150 | 70 | 337 | 2 months |
| BCPK101508T | 100 | 150 | 85 | 335 | 2 months |
| BCPK112107T | 110 | 210 | 75 | 444 | 2 months |
| BCPK112110T | 110 | 210 | 100 | 509 | 2 months |
| BCPK112607T | 110 | 260 | 75 | 528 | 2 months |
| BCPK112610T | 110 | 260 | 100.5 | 594 | 2 months |
| BCPK131508T | 135 | 155 | 85 | 421 | 2 months |
| BCPK131808T | 135 | 185 | 85.5 | 475 | 2 months |
| BCPK131810T | 135 | 185 | 100.5 | 478 | 2 months |
| BCPK151509T | 150 | 150 | 90 | 422 | 2 months |
| BCPK151512T | 150 | 150 | 120.5 | 508 | 2 months |
| BCPK162110T | 160 | 210 | 100 | 721 | 2 months |
| BCPK162113T | 160 | 210 | 130 | 639 | 2 months |
| BCPK162610T | 160 | 260 | 100 | 738 | 2 months |
| BCPK162613T | 160 | 260 | 130 | 825 | 2 months |
| BCPK172210T | 170 | 220 | 105 | 681 | 2 months |
| BCPK172711T | 170 | 270 | 110.5 | 794 | 2 months |
| BCPK192810T | 190 | 280 | 100.5 | 900 | 2 months |
| BCPK192814T | 190 | 280 | 141 | 1,094 | 2 months |
| BCPK203013TN | 200 | 300 | 130 | 1,097 | 2 months |
| BCPK203015TN | 200 | 300 | 150 | 1,178 | 2 months |
| BCPK203018TN | 200 | 300 | 180 | 1,323 | 2 months |
| BCPK212110T | 210 | 210 | 100 | 756 | 2 months |
| BCPK212113T | 210 | 210 | 130 | 847 | 2 months |
| BCPK253515TN | 250 | 350 | 150 | 1,510 | 2 months |
| BCPK253518TN | 250 | 350 | 180 | 1,673 | 2 months |
| BCPK282813T | 280 | 280 | 130.5 | 1,433 | 2 months |
| BCPK283813T | 280 | 380 | 130 | 1,733 | 2 months |
| BCPK303015T | 300 | 300 | 151 | 1,682 | 2 months |
| BCPK303018T | 300 | 300 | 181 | 1,795 | 2 months |
| BCPK304012T | 300 | 400 | 120 | 1,872 | 2 months |
| BCPK304015T | 300 | 400 | 150 | 1,926 | 2 months |
| BCPK304018T | 300 | 400 | 181 | 2,098 | 2 months |
| BCPK353515T | 350 | 350 | 150 | 1,999 | 2 months |
| BCPK353518T | 350 | 350 | 181 | 2,163 | 2 months |
| BCPK354512T | 350 | 450 | 120 | 2,429 | 2 months |
| BCPK354516T | 350 | 450 | 160 | 2,848 | 2 months |
| BCPK354520T | 350 | 450 | 201 | 3,140 | 2 months |
| BCPK405016T | 400 | 500 | 160 | 3,152 | 2 months |
| BCPK405020T | 400 | 500 | 201 | 3,729 | 2 months |
| BCPK406018T | 400 | 600 | 181 | 4,164 | 2 months |
| BCPK406023T | 400 | 600 | 231 | 4,645 | 2 months |
| BCPK506018T | 530 | 630 | 185 | 6,151 | 2 months |
| BCPK506025T | 530 | 630 | 255 | 8,220 | 2 months |
