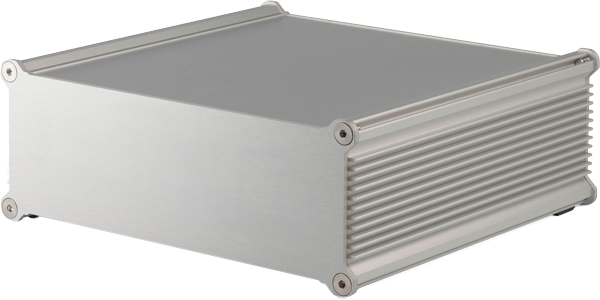

Series AWA
HEATSINK ALUMINIUM ENCLOSURE
- Extruded aluminium frame manufactured with heat-sink sides.
- Silver anodized end panels make for a luxurious finish.
- Conductivity is achieved by utilizing the contact between the unfinished end panel sides and the unfinished ends of the frame.
- PCB or chassis can be horizontally mounted by sliding into an inner-grooved body frame.
- Suitable for industrial fanless PC, measuring instrument, digital audio amplifier and more.
- Custom length is available.
- Included screws:
- AWA5-3, 6-6, 8-4 models : Hex flat head M3-8 x 8 pcs
- AWA8-8, 10-5, 12-7, 15-8 models : Hex flat head M4-10 x 8 pcs
- AWA20-8 models : Hex flat head M5-10 x 8 pcs
- ※ Hexagonal wrench included
Extruded aluminum enclosure with heat-sink sides.
Silver anodized end panels makes for a luxurious finish.
Conductivity is achieved by utilizing the contact between the unfinished end panels side, and the unfinished ends of the frame.
PCB or chassis can be horizontally mounted by sliding into an inner-grooved body frame.
Suitable for industrial fan-less PC, measuring instrument, digital audio amplifier and more.
Available in 34 sizes.
Components
| No. | Part name | Pcs | Material | Color / Finish |
|---|---|---|---|---|
| 1 | Body frame | 1 | Extruded aluminium A6063S-T5 | Silver / Anodized with clear coating |
| 2 | End panel | 2 | Aluminium A1050P | Silver / Anodized (Unfinished inside) |
| 3 | Hex socket screw | 8 | Stainless steel | Unfinished |
| 4 | Rubber feet | 4 | Polyurethane | Black |
Dimensions
- ※ Thermal resistance test condition
- Ambient air cooling
- eat-sink fins are set perpendicular to the ground with temperature at 60 Ambient air cooling °C
- Anodized aluminium extrusion
- Heat source is applied on the opposite side (inner side) of the fins
Product no. / Dimensions
| Product no. | External dimensions | Internal dimensions | Weight (g) | Mounting plate | ||||
|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | (Option) | ||
| AWA5-3-5SS | 52 | 32 | 53.2 | 36 | 16.4 | 49.2 | 69.5 | AWC5-7 |
| AWA5-3-7SS | 52 | 32 | 73.2 | 36 | 16.4 | 69.2 | 90.5 | AWC5-9 |
| AWA5-3-10SS | 52 | 32 | 98.2 | 36 | 16.4 | 94.2 | 116.5 | AWC5-11 |
| AWA5-3-12SS | 52 | 32 | 123.2 | 36 | 16.4 | 119.2 | 142.5 | AWC5-14 |
| AWA6-6-7SS | 61 | 61 | 68 | 43 | 46 | 64 | 156 | AWC7-8 |
| AWA6-6-10SS | 61 | 61 | 98 | 43 | 46 | 94 | 212 | AWC7-11 |
| AWA6-6-14SS | 61 | 61 | 138 | 43 | 46 | 134 | 286 | AWC7-15 |
| AWA6-6-19SS | 61 | 61 | 188 | 43 | 46 | 184 | 379 | AWC7-20 |
| AWA6-6-24SS | 61 | 61 | 238 | 43 | 46 | 234 | 471.5 | AWC7-25 |
| AWA8-4-8SS | 76 | 41 | 78 | 58 | 26 | 74 | 154 | AWC8-9 |
| AWA8-4-10SS | 76 | 41 | 103 | 58 | 26 | 99 | 195 | AWC8-12 |
| AWA8-4-13SS | 76 | 41 | 128 | 58 | 26 | 124 | 236.5 | AWC8-14 |
| AWA8-4-16SS | 76 | 41 | 163 | 58 | 26 | 159 | 294 | AWC8-18 |
| AWA8-8-9SS | 82 | 82 | 86 | 62.5 | 61.5 | 81 | 319.5 | AWC9-10 |
| AWA8-8-11SS | 82 | 82 | 111 | 62.5 | 61.5 | 106 | 392.5 | AWC9-13 |
| AWA8-8-16SS | 82 | 82 | 156 | 62.5 | 61.5 | 151 | 523.5 | AWC9-17 |
| AWA8-8-21SS | 82 | 82 | 206 | 62.5 | 61.5 | 201 | 669.5 | AWC9-22 |
| AWA8-8-26SS | 82 | 82 | 261 | 62.5 | 61.5 | 256 | 829.5 | AWC9-28 |
| AWA10-5-10SS | 102 | 52 | 95.6 | 82.5 | 31.5 | 90.6 | 288.5 | AWC11-11 |
| AWA10-5-14SS | 102 | 52 | 135.6 | 82.5 | 31.5 | 130.6 | 387.5 | AWC11-15 |
| AWA10-5-18SS | 102 | 52 | 175.6 | 82.5 | 31.5 | 170.6 | 486 | AWC11-19 |
| AWA10-5-23SS | 102 | 52 | 225.6 | 82.5 | 31.5 | 220.6 | 609 | AWC11-24 |
| AWA12-7-9SS | 115.7 | 67 | 90.6 | 96.7 | 46 | 85.6 | 354 | AWC12-11 |
| AWA12-7-12SS | 115.7 | 67 | 125.6 | 96.7 | 46 | 120.6 | 460 | AWC12-14 |
| AWA12-7-17SS | 115.7 | 67 | 165.1 | 96.7 | 46 | 160.1 | 579.5 | AWC12-17 |
| AWA12-7-20SS | 115.7 | 67 | 200.6 | 96.7 | 46 | 195.6 | 687 | AWC12-22 |
| AWA15-8-12SS | 152 | 77 | 120.6 | 133 | 56 | 115.6 | 565.5 | AWC16-14 |
| AWA15-8-16SS | 152 | 77 | 160.6 | 133 | 56 | 155.6 | 712 | AWC16-18 |
| AWA15-8-21SS | 152 | 77 | 210.6 | 133 | 56 | 205.6 | 895.5 | AWC16-23 |
| AWA15-8-26SS | 152 | 77 | 260.6 | 133 | 56 | 255.6 | 1079 | AWC16-28 |
| AWA20-8-15SS | 202.4 | 77.4 | 153.8 | 183 | 53.5 | 147.8 | 854.5 | AWC21-17 |
| AWA20-8-19SS | 202.4 | 77.4 | 193.8 | 183 | 53.5 | 187.8 | 1025 | AWC21-21 |
| AWA20-8-24SS | 202.4 | 77.4 | 243.8 | 183 | 53.5 | 237.8 | 1238 | AWC21-26 |
| AWA20-8-29SS | 202.4 | 77.4 | 293.8 | 183 | 53.5 | 287.8 | 1451.5 | AWC21-31 |
| AWA5-3-5SS | 52 | 32 | 53.2 | 36 | 16.4 | 49.2 | 69.5 | AWC5-7 |
| AWA5-3-7SS | 52 | 32 | 73.2 | 36 | 16.4 | 69.2 | 90.5 | AWC5-9 |
| AWA5-3-10SS | 52 | 32 | 98.2 | 36 | 16.4 | 94.2 | 116.5 | AWC5-11 |
| AWA5-3-12SS | 52 | 32 | 123.2 | 36 | 16.4 | 119.2 | 142.5 | AWC5-14 |
| AWA6-6-7SS | 61 | 61 | 68 | 43 | 46 | 64 | 156 | AWC7-8 |
| AWA6-6-10SS | 61 | 61 | 98 | 43 | 46 | 94 | 212 | AWC7-11 |
| AWA6-6-14SS | 61 | 61 | 138 | 43 | 46 | 134 | 286 | AWC7-15 |
| AWA6-6-19SS | 61 | 61 | 188 | 43 | 46 | 184 | 379 | AWC7-20 |
| AWA6-6-24SS | 61 | 61 | 238 | 43 | 46 | 234 | 471.5 | AWC7-25 |
| AWA8-4-8SS | 76 | 41 | 78 | 58 | 26 | 74 | 154 | AWC8-9 |
| AWA8-4-10SS | 76 | 41 | 103 | 58 | 26 | 99 | 195 | AWC8-12 |
| AWA8-4-13SS | 76 | 41 | 128 | 58 | 26 | 124 | 236.5 | AWC8-14 |
| AWA8-4-16SS | 76 | 41 | 163 | 58 | 26 | 159 | 294 | AWC8-18 |
| AWA8-8-9SS | 82 | 82 | 86 | 62.5 | 61.5 | 81 | 319.5 | AWC9-10 |
| AWA8-8-11SS | 82 | 82 | 111 | 62.5 | 61.5 | 106 | 392.5 | AWC9-13 |
| AWA8-8-16SS | 82 | 82 | 156 | 62.5 | 61.5 | 151 | 523.5 | AWC9-17 |
| AWA8-8-21SS | 82 | 82 | 206 | 62.5 | 61.5 | 201 | 669.5 | AWC9-22 |
| AWA8-8-26SS | 82 | 82 | 261 | 62.5 | 61.5 | 256 | 829.5 | AWC9-28 |
| AWA10-5-10SS | 102 | 52 | 95.6 | 82.5 | 31.5 | 90.6 | 288.5 | AWC11-11 |
| AWA10-5-14SS | 102 | 52 | 135.6 | 82.5 | 31.5 | 130.6 | 387.5 | AWC11-15 |
| AWA10-5-18SS | 102 | 52 | 175.6 | 82.5 | 31.5 | 170.6 | 486 | AWC11-19 |
| AWA10-5-23SS | 102 | 52 | 225.6 | 82.5 | 31.5 | 220.6 | 609 | AWC11-24 |
| AWA12-7-9SS | 115.7 | 67 | 90.6 | 96.7 | 46 | 85.6 | 354 | AWC12-11 |
| AWA12-7-12SS | 115.7 | 67 | 125.6 | 96.7 | 46 | 120.6 | 460 | AWC12-14 |
| AWA12-7-17SS | 115.7 | 67 | 165.1 | 96.7 | 46 | 160.1 | 579.5 | AWC12-17 |
| AWA12-7-20SS | 115.7 | 67 | 200.6 | 96.7 | 46 | 195.6 | 687 | AWC12-22 |
| AWA15-8-12SS | 152 | 77 | 120.6 | 133 | 56 | 115.6 | 565.5 | AWC16-14 |
| AWA15-8-16SS | 152 | 77 | 160.6 | 133 | 56 | 155.6 | 712 | AWC16-18 |
| AWA15-8-21SS | 152 | 77 | 210.6 | 133 | 56 | 205.6 | 895.5 | AWC16-23 |
| AWA15-8-26SS | 152 | 77 | 260.6 | 133 | 56 | 255.6 | 1079 | AWC16-28 |
| AWA20-8-15SS | 202.4 | 77.4 | 153.8 | 183 | 53.5 | 147.8 | 854.5 | AWC21-17 |
| AWA20-8-19SS | 202.4 | 77.4 | 193.8 | 183 | 53.5 | 187.8 | 1025 | AWC21-21 |
| AWA20-8-24SS | 202.4 | 77.4 | 243.8 | 183 | 53.5 | 237.8 | 1238 | AWC21-26 |
| AWA20-8-29SS | 202.4 | 77.4 | 293.8 | 183 | 53.5 | 287.8 | 1451.5 | AWC21-31 |
