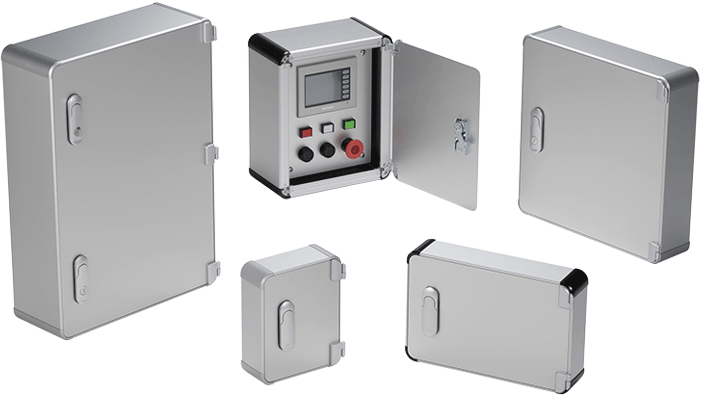

Series AUH

ALUMINIUM CONTROL BOX

Aluminium enclosure with opening/closing cover for easy access to the inside of the case.
Flat handle is available in 2 configurations: Normal "N" type, and Key Lock "K" type.
A large selection of 252 different sizes in 2 different colors to choose from.
Suitable for use as industrial control panel, machine controller, power supply, and more.

Series AUH

Aluminium enclosure with opening/closing cover for easy access to the inside of the case.
Flat handle is available in 2 configurations: Normal „N“ type, and Key Lock „K“ type.
A large selection of 252 different sizes in 2 different colors to choose from.
Suitable for use as industrial control panels, machine controllers, power supply, and more.

Flat handle (Normal / Key lock) / Color

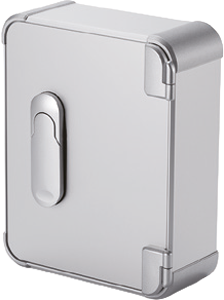

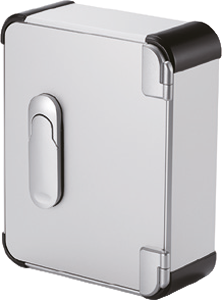

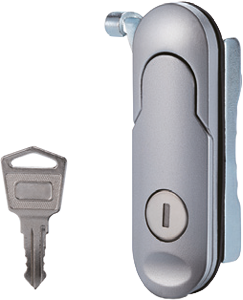

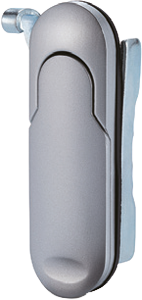

N type (Normal)	K type (Key lock)	S S	S B

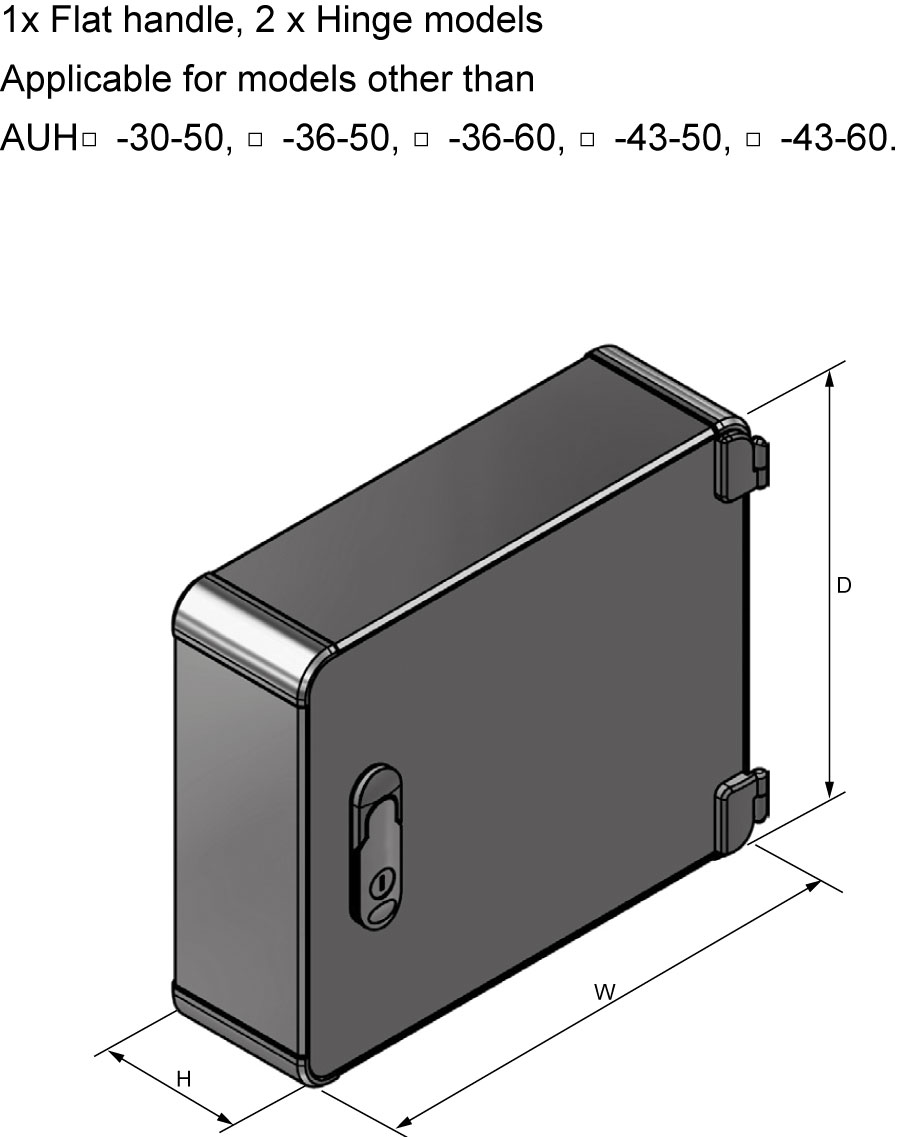

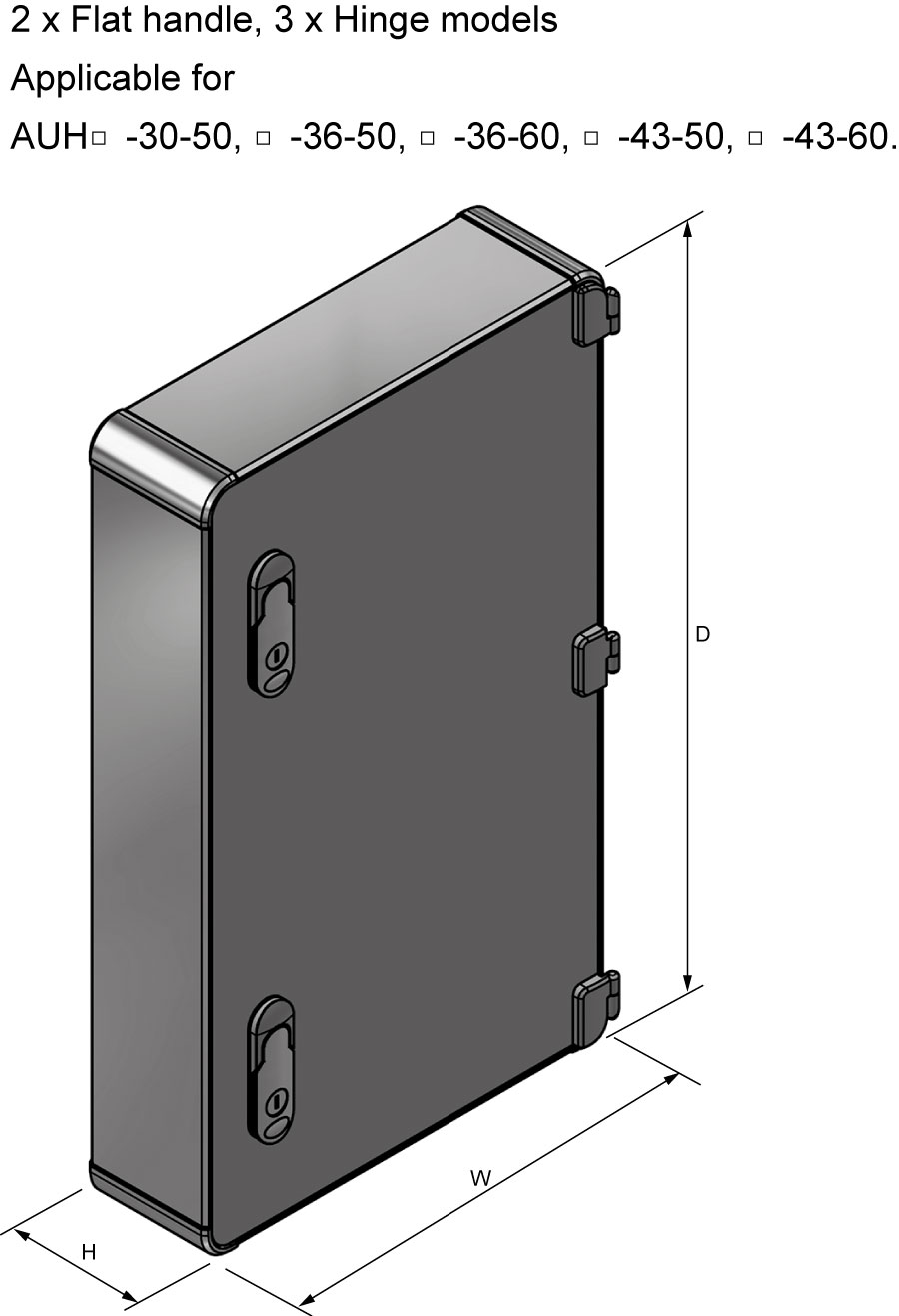

Dimensions

Components

No.	Part name	Pcs	Material	Color / Finish
1	Corner block	4	Diecast aluminium ADC12	Silver / Black Painted (Unfinished inside)
2	Frame	4	Extruded aluminium A6063S-T5	Silver / Anodized with clear coating
3	Open-closing panel	1	Aluminium A1100P	Silver / Anodized
4	Screwed panel	1	Aluminium A1100P	Silver / Anodized
5	Flat handle (Key lock / Normal)	1 set	Diecast zinc	Silver / Painted
6	Hinge	1 set	Diecast zinc	Silver / Painted

Dimensions

Product no. / Dimensions

Product no.	External dimensions			Internal dimensions			Key	Weight (g)	Mounting plate
Product no.	W	H	D	W	H	D	Key	Weight (g)	(Option)
AUH66-16-20N□□	160	66	200	153	59.3	193	Without	1.2	AUC16-20
AUH66-16-20K□□	160	66	200	153	59.3	193	With	1.2	AUC16-20
AUH66-16-25N□□	160	66	250	153	59.3	243	Without	1.4	AUC16-25
AUH66-16-25K□□	160	66	250	153	59.3	243	With	1.4	AUC16-25
AUH66-16-30N□□	160	66	300	153	59.3	293	Without	1.5	AUC16-30
AUH66-16-30K□□	160	66	300	153	59.3	293	With	1.5	AUC16-30
AUH66-20-20N□□	200	66	200	193	59.3	193	Without	1.3	AUC20-20
AUH66-20-20K□□	200	66	200	193	59.3	193	With	1.3	AUC20-20
AUH66-20-25N□□	200	66	250	193	59.3	243	Without	1.5	AUC20-25
AUH66-20-25K□□	200	66	250	193	59.3	243	With	1.5	AUC20-25
AUH66-20-30N□□	200	66	300	193	59.3	293	Without	1.7	AUC20-30
AUH66-20-30K□□	200	66	300	193	59.3	293	With	1.7	AUC20-30
AUH66-20-36N□□	200	66	360	193	59.3	353	Without	1.9	AUC20-36
AUH66-20-36K□□	200	66	360	193	59.3	353	With	1.9	AUC20-36
AUH66-25-25N□□	250	66	250	243	59.3	243	Without	1.7	AUC25-25
AUH66-25-25K□□	250	66	250	243	59.3	243	With	1.7	AUC25-25
AUH66-25-30N□□	250	66	300	243	59.3	293	Without	1.9	AUC25-30
AUH66-25-30K□□	250	66	300	243	59.3	293	With	1.9	AUC25-30
AUH66-25-36N□□	250	66	360	243	59.3	353	Without	2.2	AUC25-36
AUH66-25-36K□□	250	66	360	243	59.3	353	With	2.2	AUC25-36
AUH66-25-43N□□	250	66	430	243	59.3	423	Without	2.5	AUC25-43
AUH66-25-43K□□	250	66	430	243	59.3	423	With	2.5	AUC25-43
AUH66-30-20N□□	300	66	200	293	59.3	193	Without	1.7	AUC30-20
AUH66-30-20K□□	300	66	200	293	59.3	193	With	1.7	AUC30-20
AUH66-30-25N□□	300	66	250	293	59.3	243	Without	1.9	AUC30-25
AUH66-30-25K□□	300	66	250	293	59.3	243	With	1.9	AUC30-25
AUH66-30-30N□□	300	66	300	293	59.3	293	Without	2.2	AUC30-30
AUH66-30-30K□□	300	66	300	293	59.3	293	With	2.2	AUC30-30
AUH66-30-36N□□	300	66	360	293	59.3	353	Without	2.4	AUC30-36
AUH66-30-36K□□	300	66	360	293	59.3	353	With	2.4	AUC30-36
AUH66-30-43N□□	300	66	430	293	59.3	423	Without	2.8	AUC30-43
AUH66-30-43K□□	300	66	430	293	59.3	423	With	2.8	AUC30-43
AUH66-30-50N□□	300	66	500	293	59.3	493	Without	3.3	AUC30-50
AUH66-30-50K□□	300	66	500	293	59.3	493	With	3.3	AUC30-50
AUH66-36-25N□□	360	66	250	353	59.3	243	Without	2.2	AUC36-25
AUH66-36-25K□□	360	66	250	353	59.3	243	With	2.2	AUC36-25
AUH66-36-30N□□	360	66	300	353	59.3	293	Without	2.4	AUC36-30
AUH66-36-30K□□	360	66	300	353	59.3	293	With	2.4	AUC36-30
AUH66-36-36N□□	360	66	360	353	59.3	353	Without	2.7	AUC36-36
AUH66-36-36K□□	360	66	360	353	59.3	353	With	2.7	AUC36-36
AUH66-36-43N□□	360	66	430	353	59.3	423	Without	3.1	AUC36-43
AUH66-36-43K□□	360	66	430	353	59.3	423	With	3.1	AUC36-43
AUH66-36-50N□□	360	66	500	353	59.3	493	Without	3.7	AUC36-50
AUH66-36-50K□□	360	66	500	353	59.3	493	With	3.7	AUC36-50
AUH66-36-60N□□	360	66	600	353	59.3	593	Without	4.2	AUC60-36
AUH66-36-60K□□	360	66	600	353	59.3	593	With	4.2	AUC60-36
AUH66-43-30N□□	430	66	300	423	59.3	293	Without	2.8	AUC43-30
AUH66-43-30K□□	430	66	300	423	59.3	293	With	2.8	AUC43-30
AUH66-43-36N□□	430	66	360	423	59.3	353	Without	3.1	AUC43-36
AUH66-43-36K□□	430	66	360	423	59.3	353	With	3.1	AUC43-36
AUH66-43-43N□□	430	66	430	423	59.3	423	Without	3.5	AUC43-43
AUH66-43-43K□□	430	66	430	423	59.3	423	With	3.5	AUC43-43
AUH66-43-50N□□	430	66	500	423	59.3	493	Without	4.1	AUC43-50
AUH66-43-50K□□	430	66	500	423	59.3	493	With	4.1	AUC43-50
AUH66-43-60N□□	430	66	600	423	59.3	593	Without	4.7	AUC60-43
AUH66-43-60K□□	430	66	600	423	59.3	593	With	4.7	AUC60-43
AUH88-16-20N□□	160	88	200	153	81.3	193	Without	1.3	AUC16-20
AUH88-16-20K□□	160	88	200	153	81.3	193	With	1.3	AUC16-20
AUH88-16-25N□□	160	88	250	153	81.3	243	Without	1.5	AUC16-25
AUH88-16-25K□□	160	88	250	153	81.3	243	With	1.5	AUC16-25
AUH88-16-30N□□	160	88	300	153	81.3	293	Without	1.7	AUC16-30
AUH88-16-30K□□	160	88	300	153	81.3	293	With	1.7	AUC16-30
AUH88-20-20N□□	200	88	200	193	81.3	193	Without	1.5	AUC20-20
AUH88-20-20K□□	200	88	200	193	81.3	193	With	1.5	AUC20-20
AUH88-20-25N□□	200	88	250	193	81.3	243	Without	1.7	AUC20-25
AUH88-20-25K□□	200	88	250	193	81.3	243	With	1.7	AUC20-25
AUH88-20-30N□□	200	88	300	193	81.3	293	Without	1.9	AUC20-30
AUH88-20-30K□□	200	88	300	193	81.3	293	With	1.9	AUC20-30
AUH88-20-36N□□	200	88	360	193	81.3	353	Without	2.1	AUC20-36
AUH88-20-36K□□	200	88	360	193	81.3	353	With	2.1	AUC20-36
AUH88-25-25N□□	250	88	250	243	81.3	243	Without	1.9	AUC25-25
AUH88-25-25K□□	250	88	250	243	81.3	243	With	1.9	AUC25-25
AUH88-25-30N□□	250	88	300	243	81.3	293	Without	2.1	AUC25-30
AUH88-25-30K□□	250	88	300	243	81.3	293	With	2.1	AUC25-30
AUH88-25-36N□□	250	88	360	243	81.3	353	Without	2.4	AUC25-36
AUH88-25-36K□□	250	88	360	243	81.3	353	With	2.4	AUC25-36
AUH88-25-43N□□	250	88	430	243	81.3	423	Without	2.7	AUC25-43
AUH88-25-43K□□	250	88	430	243	81.3	423	With	2.7	AUC25-43
AUH88-30-20N□□	300	88	200	293	81.3	193	Without	1.9	AUC30-20
AUH88-30-20K□□	300	88	200	293	81.3	193	With	1.9	AUC30-20
AUH88-30-25N□□	300	88	250	293	81.3	243	Without	2.1	AUC30-25
AUH88-30-25K□□	300	88	250	293	81.3	243	With	2.1	AUC30-25
AUH88-30-30N□□	300	88	300	293	81.3	293	Without	2.4	AUC30-30
AUH88-30-30K□□	300	88	300	293	81.3	293	With	2.4	AUC30-30
AUH88-30-36N□□	300	88	360	293	81.3	353	Without	2.6	AUC30-36
AUH88-30-36K□□	300	88	360	293	81.3	353	With	2.6	AUC30-36
AUH88-30-43N□□	300	88	430	293	81.3	423	Without	3	AUC30-43
AUH88-30-43K□□	300	88	430	293	81.3	423	With	3	AUC30-43
AUH88-30-50N□□	300	88	500	293	81.3	493	Without	3.5	AUC30-50
AUH88-30-50K□□	300	88	500	293	81.3	493	With	3.5	AUC30-50
AUH88-36-25N□□	360	88	250	353	81.3	243	Without	2.4	AUC36-25
AUH88-36-25K□□	360	88	250	353	81.3	243	With	2.4	AUC36-25
AUH88-36-30N□□	360	88	300	353	81.3	293	Without	2.6	AUC36-30
AUH88-36-30K□□	360	88	300	353	81.3	293	With	2.6	AUC36-30
AUH88-36-36N□□	360	88	360	353	81.3	353	Without	3	AUC36-36
AUH88-36-36K□□	360	88	360	353	81.3	353	With	3	AUC36-36
AUH88-36-43N□□	360	88	430	353	81.3	423	Without	3.4	AUC36-43
AUH88-36-43K□□	360	88	430	353	81.3	423	With	3.4	AUC36-43
AUH88-36-50N□□	360	88	500	353	81.3	493	Without	3.9	AUC36-50
AUH88-36-50K□□	360	88	500	353	81.3	493	With	3.9	AUC36-50
AUH88-36-60N□□	360	88	600	353	81.3	593	Without	4.5	AUC60-36
AUH88-36-60K□□	360	88	600	353	81.3	593	With	4.5	AUC60-36
AUH88-43-30N□□	430	88	300	423	81.3	293	Without	3	AUC43-30
AUH88-43-30K□□	430	88	300	423	81.3	293	With	3	AUC43-30
AUH88-43-36N□□	430	88	360	423	81.3	353	Without	3.4	AUC43-36
AUH88-43-36K□□	430	88	360	423	81.3	353	With	3.4	AUC43-36
AUH88-43-43N□□	430	88	430	423	81.3	423	Without	3.8	AUC43-43
AUH88-43-43K□□	430	88	430	423	81.3	423	With	3.8	AUC43-43
AUH88-43-50N□□	430	88	500	423	81.3	493	Without	4.4	AUC43-50
AUH88-43-50K□□	430	88	500	423	81.3	493	With	4.4	AUC43-50
AUH88-43-60N□□	430	88	600	423	81.3	593	Without	5.1	AUC60-43
AUH88-43-60K□□	430	88	600	423	81.3	593	With	5.1	AUC60-43
AUH99-16-20N□□	160	99	200	153	92.3	193	Without	1.3	AUC16-20
AUH99-16-20K□□	160	99	200	153	92.3	193	With	1.3	AUC16-20
AUH99-16-25N□□	160	99	250	153	92.3	243	Without	1.5	AUC16-25
AUH99-16-25K□□	160	99	250	153	92.3	243	With	1.5	AUC16-25
AUH99-16-30N□□	160	99	300	153	92.3	293	Without	1.7	AUC16-30
AUH99-16-30K□□	160	99	300	153	92.3	293	With	1.7	AUC16-30
AUH99-20-20N□□	200	99	200	193	92.3	193	Without	1.5	AUC20-20
AUH99-20-20K□□	200	99	200	193	92.3	193	With	1.5	AUC20-20
AUH99-20-25N□□	200	99	250	193	92.3	243	Without	1.7	AUC20-25
AUH99-20-25K□□	200	99	250	193	92.3	243	With	1.7	AUC20-25
AUH99-20-30N□□	200	99	300	193	92.3	293	Without	1.9	AUC20-30
AUH99-20-30K□□	200	99	300	193	92.3	293	With	1.9	AUC20-30
AUH99-20-36N□□	200	99	360	193	92.3	353	Without	2.1	AUC20-36
AUH99-20-36K□□	200	99	360	193	92.3	353	With	2.1	AUC20-36
AUH99-25-25N□□	250	99	250	243	92.3	243	Without	1.9	AUC25-25
AUH99-25-25K□□	250	99	250	243	92.3	243	With	1.9	AUC25-25
AUH99-25-30N□□	250	99	300	243	92.3	293	Without	2.1	AUC25-30
AUH99-25-30K□□	250	99	300	243	92.3	293	With	2.1	AUC25-30
AUH99-25-36N□□	250	99	360	243	92.3	353	Without	2.4	AUC25-36
AUH99-25-36K□□	250	99	360	243	92.3	353	With	2.4	AUC25-36
AUH99-25-43N□□	250	99	430	243	92.3	423	Without	2.7	AUC25-43
AUH99-25-43K□□	250	99	430	243	92.3	423	With	2.7	AUC25-43
AUH99-30-20N□□	300	99	200	293	92.3	193	Without	1.9	AUC30-20
AUH99-30-20K□□	300	99	200	293	92.3	193	With	1.9	AUC30-20
AUH99-30-25N□□	300	99	250	293	92.3	243	Without	2.1	AUC30-25
AUH99-30-25K□□	300	99	250	293	92.3	243	With	2.1	AUC30-25
AUH99-30-30N□□	300	99	300	293	92.3	293	Without	2.4	AUC30-30
AUH99-30-30K□□	300	99	300	293	92.3	293	With	2.4	AUC30-30
AUH99-30-36N□□	300	99	360	293	92.3	353	Without	2.7	AUC30-36
AUH99-30-36K□□	300	99	360	293	92.3	353	With	2.7	AUC30-36
AUH99-30-43N□□	300	99	430	293	92.3	423	Without	3	AUC30-43
AUH99-30-43K□□	300	99	430	293	92.3	423	With	3	AUC30-43
AUH99-30-50N□□	300	99	500	293	92.3	493	Without	3.6	AUC30-50
AUH99-30-50K□□	300	99	500	293	92.3	493	With	3.6	AUC30-50
AUH99-36-25N□□	360	99	250	353	92.3	243	Without	2.4	AUC36-25
AUH99-36-25K□□	360	99	250	353	92.3	243	With	2.4	AUC36-25
AUH99-36-30N□□	360	99	300	353	92.3	293	Without	2.7	AUC36-30
AUH99-36-30K□□	360	99	300	353	92.3	293	With	2.7	AUC36-30
AUH99-36-36N□□	360	99	360	353	92.3	353	Without	3	AUC36-36
AUH99-36-36K□□	360	99	360	353	92.3	353	With	3	AUC36-36
AUH99-36-43N□□	360	99	430	353	92.3	423	Without	3.4	AUC36-43
AUH99-36-43K□□	360	99	430	353	92.3	423	With	3.4	AUC36-43
AUH99-36-50N□□	360	99	500	353	92.3	493	Without	4	AUC36-50
AUH99-36-50K□□	360	99	500	353	92.3	493	With	4	AUC36-50
AUH99-36-60N□□	360	99	600	353	92.3	593	Without	4.6	AUC60-36
AUH99-36-60K□□	360	99	600	353	92.3	593	With	4.6	AUC60-36
AUH99-43-30N□□	430	99	300	423	92.3	293	Without	3	AUC43-30
AUH99-43-30K□□	430	99	300	423	92.3	293	With	3	AUC43-30
AUH99-43-36N□□	430	99	360	423	92.3	353	Without	3.4	AUC43-36
AUH99-43-36K□□	430	99	360	423	92.3	353	With	3.4	AUC43-36
AUH99-43-43N□□	430	99	430	423	92.3	423	Without	3.9	AUC43-43
AUH99-43-43K□□	430	99	430	423	92.3	423	With	3.9	AUC43-43
AUH99-43-50N□□	430	99	500	423	92.3	493	Without	4.5	AUC43-50
AUH99-43-50K□□	430	99	500	423	92.3	493	With	4.5	AUC43-50
AUH99-43-60N□□	430	99	600	423	92.3	593	Without	5.1	AUC60-43
AUH99-43-60K□□	430	99	600	423	92.3	593	With	5.1	AUC60-43
AUH115-16-20N□□	160	115	200	153	108.3	193	Without	1.4	AUC16-20
AUH115-16-20K□□	160	115	200	153	108.3	193	With	1.4	AUC16-20
AUH115-16-25N□□	160	115	250	153	108.3	243	Without	1.6	AUC16-25
AUH115-16-25K□□	160	115	250	153	108.3	243	With	1.6	AUC16-25
AUH115-16-30N□□	160	115	300	153	108.3	293	Without	1.8	AUC16-30
AUH115-16-30K□□	160	115	300	153	108.3	293	With	1.8	AUC16-30
AUH115-20-20N□□	200	115	200	193	108.3	193	Without	1.6	AUC20-20
AUH115-20-20K□□	200	115	200	193	108.3	193	With	1.6	AUC20-20
AUH115-20-25N□□	200	115	250	193	108.3	243	Without	1.8	AUC20-25
AUH115-20-25K□□	200	115	250	193	108.3	243	With	1.8	AUC20-25
AUH115-20-30N□□	200	115	300	193	108.3	293	Without	2	AUC20-30
AUH115-20-30K□□	200	115	300	193	108.3	293	With	2	AUC20-30
AUH115-20-36N□□	200	115	360	193	108.3	353	Without	2.2	AUC20-36
AUH115-20-36K□□	200	115	360	193	108.3	353	With	2.2	AUC20-36
AUH115-25-25N□□	250	115	250	243	108.3	243	Without	2	AUC25-25
AUH115-25-25K□□	250	115	250	243	108.3	243	With	2	AUC25-25
AUH115-25-30N□□	250	115	300	243	108.3	293	Without	2.3	AUC25-30
AUH115-25-30K□□	250	115	300	243	108.3	293	With	2.3	AUC25-30
AUH115-25-36N□□	250	115	360	243	108.3	353	Without	2.5	AUC25-36
AUH115-25-36K□□	250	115	360	243	108.3	353	With	2.5	AUC25-36
AUH115-25-43N□□	250	115	430	243	108.3	423	Without	2.9	AUC25-43
AUH115-25-43K□□	250	115	430	243	108.3	423	With	2.9	AUC25-43
AUH115-30-20N□□	300	115	200	293	108.3	193	Without	2	AUC30-20
AUH115-30-20K□□	300	115	200	293	108.3	193	With	2	AUC30-20
AUH115-30-25N□□	300	115	250	293	108.3	243	Without	2.3	AUC30-25
AUH115-30-25K□□	300	115	250	293	108.3	243	With	2.3	AUC30-25
AUH115-30-30N□□	300	115	300	293	108.3	293	Without	2.5	AUC30-30
AUH115-30-30K□□	300	115	300	293	108.3	293	With	2.5	AUC30-30
AUH115-30-36N□□	300	115	360	293	108.3	353	Without	2.8	AUC30-36
AUH115-30-36K□□	300	115	360	293	108.3	353	With	2.8	AUC30-36
AUH115-30-43N□□	300	115	430	293	108.3	423	Without	3.2	AUC30-43
AUH115-30-43K□□	300	115	430	293	108.3	423	With	3.2	AUC30-43
AUH115-30-50N□□	300	115	500	293	108.3	493	Without	3.7	AUC30-50
AUH115-30-50K□□	300	115	500	293	108.3	493	With	3.7	AUC30-50
AUH115-36-25N□□	360	115	250	353	108.3	243	Without	2.5	AUC36-25
AUH115-36-25K□□	360	115	250	353	108.3	243	With	2.5	AUC36-25
AUH115-36-30N□□	360	115	300	353	108.3	293	Without	2.8	AUC36-30
AUH115-36-30K□□	360	115	300	353	108.3	293	With	2.8	AUC36-30
AUH115-36-36N□□	360	115	360	353	108.3	353	Without	3.2	AUC36-36
AUH115-36-36K□□	360	115	360	353	108.3	353	With	3.2	AUC36-36
AUH115-36-43N□□	360	115	430	353	108.3	423	Without	3.6	AUC36-43
AUH115-36-43K□□	360	115	430	353	108.3	423	With	3.6	AUC36-43
AUH115-36-50N□□	360	115	500	353	108.3	493	Without	4.2	AUC36-50
AUH115-36-50K□□	360	115	500	353	108.3	493	With	4.2	AUC36-50
AUH115-36-60N□□	360	115	600	353	108.3	593	Without	4.8	AUC60-36
AUH115-36-60K□□	360	115	600	353	108.3	593	With	4.8	AUC60-36
AUH115-43-30N□□	430	115	300	423	108.3	293	Without	3.2	AUC43-30
AUH115-43-30K□□	430	115	300	423	108.3	293	With	3.2	AUC43-30
AUH115-43-36N□□	430	115	360	423	108.3	353	Without	3.6	AUC43-36
AUH115-43-36K□□	430	115	360	423	108.3	353	With	3.6	AUC43-36
AUH115-43-43N□□	430	115	430	423	108.3	423	Without	4.1	AUC43-43
AUH115-43-43K□□	430	115	430	423	108.3	423	With	4.1	AUC43-43
AUH115-43-50N□□	430	115	500	423	108.3	493	Without	4.7	AUC43-50
AUH115-43-50K□□	430	115	500	423	108.3	493	With	4.7	AUC43-50
AUH115-43-60N□□	430	115	600	423	108.3	593	Without	5.4	AUC60-43
AUH115-43-60K□□	430	115	600	423	108.3	593	With	5.4	AUC60-43
AUH133-16-20N□□	160	132.5	200	152	125.8	192	Without	1.7	AUC16-20
AUH133-16-20K□□	160	132.5	200	152	125.8	192	With	1.7	AUC16-20
AUH133-16-25N□□	160	132.5	250	152	125.8	242	Without	1.9	AUC16-25
AUH133-16-25K□□	160	132.5	250	152	125.8	242	With	1.9	AUC16-25
AUH133-16-30N□□	160	132.5	300	152	125.8	292	Without	2.1	AUC16-30
AUH133-16-30K□□	160	132.5	300	152	125.8	292	With	2.1	AUC16-30
AUH133-20-20N□□	200	132.5	200	192	125.8	192	Without	1.8	AUC20-20
AUH133-20-20K□□	200	132.5	200	192	125.8	192	With	1.8	AUC20-20
AUH133-20-25N□□	200	132.5	250	192	125.8	242	Without	2.1	AUC20-25
AUH133-20-25K□□	200	132.5	250	192	125.8	242	With	2.1	AUC20-25
AUH133-20-30N□□	200	132.5	300	192	125.8	292	Without	2.3	AUC20-30
AUH133-20-30K□□	200	132.5	300	192	125.8	292	With	2.3	AUC20-30
AUH133-20-36N□□	200	132.5	360	192	125.8	352	Without	2.6	AUC20-36
AUH133-20-36K□□	200	132.5	360	192	125.8	352	With	2.6	AUC20-36
AUH133-25-25N□□	250	132.5	250	242	125.8	242	Without	2.4	AUC25-25
AUH133-25-25K□□	250	132.5	250	242	125.8	242	With	2.4	AUC25-25
AUH133-25-30N□□	250	132.5	300	242	125.8	292	Without	2.6	AUC25-30
AUH133-25-30K□□	250	132.5	300	242	125.8	292	With	2.6	AUC25-30
AUH133-25-36N□□	250	132.5	360	242	125.8	352	Without	2.9	AUC25-36
AUH133-25-36K□□	250	132.5	360	242	125.8	352	With	2.9	AUC25-36
AUH133-25-43N□□	250	132.5	430	242	125.8	422	Without	3.3	AUC25-43
AUH133-25-43K□□	250	132.5	430	242	125.8	422	With	3.3	AUC25-43
AUH133-30-20N□□	300	132.5	200	292	125.8	192	Without	2.3	AUC30-20
AUH133-30-20K□□	300	132.5	200	292	125.8	192	With	2.3	AUC30-20
AUH133-30-25N□□	300	132.5	250	292	125.8	242	Without	2.6	AUC30-25
AUH133-30-25K□□	300	132.5	250	292	125.8	242	With	2.6	AUC30-25
AUH133-30-30N□□	300	132.5	300	292	125.8	292	Without	2.9	AUC30-30
AUH133-30-30K□□	300	132.5	300	292	125.8	292	With	2.9	AUC30-30
AUH133-30-36N□□	300	132.5	360	292	125.8	352	Without	3.3	AUC30-36
AUH133-30-36K□□	300	132.5	360	292	125.8	352	With	3.3	AUC30-36
AUH133-30-43N□□	300	132.5	430	292	125.8	422	Without	3.7	AUC30-43
AUH133-30-43K□□	300	132.5	430	292	125.8	422	With	3.7	AUC30-43
AUH133-30-50N□□	300	132.5	500	292	125.8	492	Without	4.2	AUC30-50
AUH133-30-50K□□	300	132.5	500	292	125.8	492	With	4.2	AUC30-50
AUH133-36-25N□□	360	132.5	250	352	125.8	242	Without	2.9	AUC36-25
AUH133-36-25K□□	360	132.5	250	352	125.8	242	With	2.9	AUC36-25
AUH133-36-30N□□	360	132.5	300	352	125.8	292	Without	3.3	AUC36-30
AUH133-36-30K□□	360	132.5	300	352	125.8	292	With	3.3	AUC36-30
AUH133-36-36N□□	360	132.5	360	352	125.8	352	Without	3.6	AUC36-36
AUH133-36-36K□□	360	132.5	360	352	125.8	352	With	3.6	AUC36-36
AUH133-36-43N□□	360	132.5	430	352	125.8	422	Without	4.1	AUC36-43
AUH133-36-43K□□	360	132.5	430	352	125.8	422	With	4.1	AUC36-43
AUH133-36-50N□□	360	132.5	500	352	125.8	492	Without	4.7	AUC36-50
AUH133-36-50K□□	360	132.5	500	352	125.8	492	With	4.7	AUC36-50
AUH133-36-60N□□	360	132.5	600	352	125.8	592	Without	5.4	AUC60-36
AUH133-36-60K□□	360	132.5	600	352	125.8	592	With	5.4	AUC60-36
AUH133-43-30N□□	430	132.5	300	422	125.8	292	Without	3.7	AUC43-30
AUH133-43-30K□□	430	132.5	300	422	125.8	292	With	3.7	AUC43-30
AUH133-43-36N□□	430	132.5	360	422	125.8	352	Without	4.1	AUC43-36
AUH133-43-36K□□	430	132.5	360	422	125.8	352	With	4.1	AUC43-36
AUH133-43-43N□□	430	132.5	430	422	125.8	422	Without	4.6	AUC43-43
AUH133-43-43K□□	430	132.5	430	422	125.8	422	With	4.6	AUC43-43
AUH133-43-50N□□	430	132.5	500	422	125.8	492	Without	5.3	AUC43-50
AUH133-43-50K□□	430	132.5	500	422	125.8	492	With	5.3	AUC43-50
AUH133-43-60N□□	430	132.5	600	422	125.8	592	Without	6	AUC60-43
AUH133-43-60K□□	430	132.5	600	422	125.8	592	With	6	AUC60-43
AUH149-16-20N□□	160	149	200	152	142.3	192	Without	1.7	AUC16-20
AUH149-16-20K□□	160	149	200	152	142.3	192	With	1.7	AUC16-20
AUH149-16-25N□□	160	149	250	152	142.3	242	Without	1.9	AUC16-25
AUH149-16-25K□□	160	149	250	152	142.3	242	With	1.9	AUC16-25
AUH149-16-30N□□	160	149	300	152	142.3	292	Without	2.2	AUC16-30
AUH149-16-30K□□	160	149	300	152	142.3	292	With	2.2	AUC16-30
AUH149-20-20N□□	200	149	200	192	142.3	192	Without	1.9	AUC20-20
AUH149-20-20K□□	200	149	200	192	142.3	192	With	1.9	AUC20-20
AUH149-20-25N□□	200	149	250	192	142.3	242	Without	2.1	AUC20-25
AUH149-20-25K□□	200	149	250	192	142.3	242	With	2.1	AUC20-25
AUH149-20-30N□□	200	149	300	192	142.3	292	Without	2.4	AUC20-30
AUH149-20-30K□□	200	149	300	192	142.3	292	With	2.4	AUC20-30
AUH149-20-36N□□	200	149	360	192	142.3	352	Without	2.7	AUC20-36
AUH149-20-36K□□	200	149	360	192	142.3	352	With	2.7	AUC20-36
AUH149-25-25N□□	250	149	250	242	142.3	242	Without	2.4	AUC25-25
AUH149-25-25K□□	250	149	250	242	142.3	242	With	2.4	AUC25-25
AUH149-25-30N□□	250	149	300	242	142.3	292	Without	2.7	AUC25-30
AUH149-25-30K□□	250	149	300	242	142.3	292	With	2.7	AUC25-30
AUH149-25-36N□□	250	149	360	242	142.3	352	Without	3	AUC25-36
AUH149-25-36K□□	250	149	360	242	142.3	352	With	3	AUC25-36
AUH149-25-43N□□	250	149	430	242	142.3	422	Without	3.4	AUC25-43
AUH149-25-43K□□	250	149	430	242	142.3	422	With	3.4	AUC25-43
AUH149-30-20N□□	300	149	200	292	142.3	192	Without	2.4	AUC30-20
AUH149-30-20K□□	300	149	200	292	142.3	192	With	2.4	AUC30-20
AUH149-30-25N□□	300	149	250	292	142.3	242	Without	2.7	AUC30-25
AUH149-30-25K□□	300	149	250	292	142.3	242	With	2.7	AUC30-25
AUH149-30-30N□□	300	149	300	292	142.3	292	Without	3	AUC30-30
AUH149-30-30K□□	300	149	300	292	142.3	292	With	3	AUC30-30
AUH149-30-36N□□	300	149	360	292	142.3	352	Without	3.4	AUC30-36
AUH149-30-36K□□	300	149	360	292	142.3	352	With	3.4	AUC30-36
AUH149-30-43N□□	300	149	430	292	142.3	422	Without	3.8	AUC30-43
AUH149-30-43K□□	300	149	430	292	142.3	422	With	3.8	AUC30-43
AUH149-30-50N□□	300	149	500	292	142.3	492	Without	4.4	AUC30-50
AUH149-30-50K□□	300	149	500	292	142.3	492	With	4.4	AUC30-50
AUH149-36-25N□□	360	149	250	352	142.3	242	Without	3	AUC36-25
AUH149-36-25K□□	360	149	250	352	142.3	242	With	3	AUC36-25
AUH149-36-30N□□	360	149	300	352	142.3	292	Without	3.4	AUC36-30
AUH149-36-30K□□	360	149	300	352	142.3	292	With	3.4	AUC36-30
AUH149-36-36N□□	360	149	360	352	142.3	352	Without	3.8	AUC36-36
AUH149-36-36K□□	360	149	360	352	142.3	352	With	3.8	AUC36-36
AUH149-36-43N□□	360	149	430	352	142.3	422	Without	4.2	AUC36-43
AUH149-36-43K□□	360	149	430	352	142.3	422	With	4.2	AUC36-43
AUH149-36-50N□□	360	149	500	352	142.3	492	Without	4.9	AUC36-50
AUH149-36-50K□□	360	149	500	352	142.3	492	With	4.9	AUC36-50
AUH149-36-60N□□	360	149	600	352	142.3	592	Without	5.6	AUC60-36
AUH149-36-60K□□	360	149	600	352	142.3	592	With	5.6	AUC60-36
AUH149-43-30N□□	430	149	300	422	142.3	292	Without	3.8	AUC43-30
AUH149-43-30K□□	430	149	300	422	142.3	292	With	3.8	AUC43-30
AUH149-43-36N□□	430	149	360	422	142.3	352	Without	4.2	AUC43-36
AUH149-43-36K□□	430	149	360	422	142.3	352	With	4.2	AUC43-36
AUH149-43-43N□□	430	149	430	422	142.3	422	Without	4.8	AUC43-43
AUH149-43-43K□□	430	149	430	422	142.3	422	With	4.8	AUC43-43
AUH149-43-50N□□	430	149	500	422	142.3	492	Without	5.5	AUC43-50
AUH149-43-50K□□	430	149	500	422	142.3	492	With	5.5	AUC43-50
AUH149-43-60N□□	430	149	600	422	142.3	592	Without	6.2	AUC60-43
AUH149-43-60K□□	430	149	600	422	142.3	592	With	6.2	AUC60-43
AUH177-16-20N□□	160	177	200	152	170.3	192	Without	1.9	AUC16-20
AUH177-16-20K□□	160	177	200	152	170.3	192	With	1.9	AUC16-20
AUH177-16-25N□□	160	177	250	152	170.3	242	Without	2.1	AUC16-25
AUH177-16-25K□□	160	177	250	152	170.3	242	With	2.1	AUC16-25
AUH177-16-30N□□	160	177	300	152	170.3	292	Without	2.4	AUC16-30
AUH177-16-30K□□	160	177	300	152	170.3	292	With	2.4	AUC16-30
AUH177-20-20N□□	200	177	200	192	170.3	192	Without	2.1	AUC20-20
AUH177-20-20K□□	200	177	200	192	170.3	192	With	2.1	AUC20-20
AUH177-20-25N□□	200	177	250	192	170.3	242	Without	2.4	AUC20-25
AUH177-20-25K□□	200	177	250	192	170.3	242	With	2.4	AUC20-25
AUH177-20-30N□□	200	177	300	192	170.3	292	Without	2.6	AUC20-30
AUH177-20-30K□□	200	177	300	192	170.3	292	With	2.6	AUC20-30
AUH177-20-36N□□	200	177	360	192	170.3	352	Without	3	AUC20-36
AUH177-20-36K□□	200	177	360	192	170.3	352	With	3	AUC20-36
AUH177-25-25N□□	250	177	250	242	170.3	242	Without	2.7	AUC25-25
AUH177-25-25K□□	250	177	250	242	170.3	242	With	2.7	AUC25-25
AUH177-25-30N□□	250	177	300	242	170.3	292	Without	3	AUC25-30
AUH177-25-30K□□	250	177	300	242	170.3	292	With	3	AUC25-30
AUH177-25-36N□□	250	177	360	242	170.3	352	Without	3.3	AUC25-36
AUH177-25-36K□□	250	177	360	242	170.3	352	With	3.3	AUC25-36
AUH177-25-43N□□	250	177	430	242	170.3	422	Without	3.7	AUC25-43
AUH177-25-43K□□	250	177	430	242	170.3	422	With	3.7	AUC25-43
AUH177-30-20N□□	300	177	200	292	170.3	192	Without	2.6	AUC30-20
AUH177-30-20K□□	300	177	200	292	170.3	192	With	2.6	AUC30-20
AUH177-30-25N□□	300	177	250	292	170.3	242	Without	3	AUC30-25
AUH177-30-25K□□	300	177	250	292	170.3	242	With	3	AUC30-25
AUH177-30-30N□□	300	177	300	292	170.3	292	Without	3.3	AUC30-30
AUH177-30-30K□□	300	177	300	292	170.3	292	With	3.3	AUC30-30
AUH177-30-36N□□	300	177	360	292	170.3	352	Without	3.7	AUC30-36
AUH177-30-36K□□	300	177	360	292	170.3	352	With	3.7	AUC30-36
AUH177-30-43N□□	300	177	430	292	170.3	422	Without	4.1	AUC30-43
AUH177-30-43K□□	300	177	430	292	170.3	422	With	4.1	AUC30-43
AUH177-30-50N□□	300	177	500	292	170.3	492	Without	4.8	AUC30-50
AUH177-30-50K□□	300	177	500	292	170.3	492	With	4.8	AUC30-50
AUH177-36-25N□□	360	177	250	352	170.3	242	Without	3.3	AUC36-25
AUH177-36-25K□□	360	177	250	352	170.3	242	With	3.3	AUC36-25
AUH177-36-30N□□	360	177	300	352	170.3	292	Without	3.7	AUC36-30
AUH177-36-30K□□	360	177	300	352	170.3	292	With	3.7	AUC36-30
AUH177-36-36N□□	360	177	360	352	170.3	352	Without	4.1	AUC36-36
AUH177-36-36K□□	360	177	360	352	170.3	352	With	4.1	AUC36-36
AUH177-36-43N□□	360	177	430	352	170.3	422	Without	4.6	AUC36-43
AUH177-36-43K□□	360	177	430	352	170.3	422	With	4.6	AUC36-43
AUH177-36-50N□□	360	177	500	352	170.3	492	Without	5.3	AUC36-50
AUH177-36-50K□□	360	177	500	352	170.3	492	With	5.3	AUC36-50
AUH177-36-60N□□	360	177	600	352	170.3	592	Without	6	AUC60-36
AUH177-36-60K□□	360	177	600	352	170.3	592	With	6	AUC60-36
AUH177-43-30N□□	430	177	300	422	170.3	292	Without	4.1	AUC43-30
AUH177-43-30K□□	430	177	300	422	170.3	292	With	4.1	AUC43-30
AUH177-43-36N□□	430	177	360	422	170.3	352	Without	4.6	AUC43-36
AUH177-43-36K□□	430	177	360	422	170.3	352	With	4.6	AUC43-36
AUH177-43-43N□□	430	177	430	422	170.3	422	Without	5.2	AUC43-43
AUH177-43-43K□□	430	177	430	422	170.3	422	With	5.2	AUC43-43
AUH177-43-50N□□	430	177	500	422	170.3	492	Without	5.9	AUC43-50
AUH177-43-50K□□	430	177	500	422	170.3	492	With	5.9	AUC43-50
AUH177-43-60N□□	430	177	600	422	170.3	592	Without	6.7	AUC60-43
AUH177-43-60K□□	430	177	600	422	170.3	592	With	6.7	AUC60-43
AUH222-16-20N□□	161	221.5	201	152	213.8	192	Without	2.2	AUC16-20
AUH222-16-20K□□	161	221.5	201	152	213.8	192	With	2.2	AUC16-20
AUH222-16-25N□□	161	221.5	251	152	213.8	242	Without	2.5	AUC16-25
AUH222-16-25K□□	161	221.5	251	152	213.8	242	With	2.5	AUC16-25
AUH222-16-30N□□	161	221.5	301	152	213.8	292	Without	2.7	AUC16-30
AUH222-16-30K□□	161	221.5	301	152	213.8	292	With	2.7	AUC16-30
AUH222-20-20N□□	201	221.5	201	192	213.8	192	Without	2.4	AUC20-20
AUH222-20-20K□□	201	221.5	201	192	213.8	192	With	2.4	AUC20-20
AUH222-20-25N□□	201	221.5	251	192	213.8	242	Without	2.7	AUC20-25
AUH222-20-25K□□	201	221.5	251	192	213.8	242	With	2.7	AUC20-25
AUH222-20-30N□□	201	221.5	301	192	213.8	292	Without	3	AUC20-30
AUH222-20-30K□□	201	221.5	301	192	213.8	292	With	3	AUC20-30
AUH222-20-36N□□	201	221.5	361	192	213.8	352	Without	3.4	AUC20-36
AUH222-20-36K□□	201	221.5	361	192	213.8	352	With	3.4	AUC20-36
AUH222-25-25N□□	251	221.5	251	242	213.8	242	Without	3.1	AUC25-25
AUH222-25-25K□□	251	221.5	251	242	213.8	242	With	3.1	AUC25-25
AUH222-25-30N□□	251	221.5	301	242	213.8	292	Without	3.4	AUC25-30
AUH222-25-30K□□	251	221.5	301	242	213.8	292	With	3.4	AUC25-30
AUH222-25-36N□□	251	221.5	361	242	213.8	352	Without	3.8	AUC25-36
AUH222-25-36K□□	251	221.5	361	242	213.8	352	With	3.8	AUC25-36
AUH222-25-43N□□	251	221.5	431	242	213.8	422	Without	4.3	AUC25-43
AUH222-25-43K□□	251	221.5	431	242	213.8	422	With	4.3	AUC25-43
AUH222-30-20N□□	301	221.5	201	292	213.8	192	Without	3	AUC30-20
AUH222-30-20K□□	301	221.5	201	292	213.8	192	With	3	AUC30-20
AUH222-30-25N□□	301	221.5	251	292	213.8	242	Without	3.4	AUC30-25
AUH222-30-25K□□	301	221.5	251	292	213.8	242	With	3.4	AUC30-25
AUH222-30-30N□□	301	221.5	301	292	213.8	292	Without	3.8	AUC30-30
AUH222-30-30K□□	301	221.5	301	292	213.8	292	With	3.8	AUC30-30
AUH222-30-36N□□	301	221.5	361	292	213.8	352	Without	4.2	AUC30-36
AUH222-30-36K□□	301	221.5	361	292	213.8	352	With	4.2	AUC30-36
AUH222-30-43N□□	301	221.5	431	292	213.8	422	Without	4.7	AUC30-43
AUH222-30-43K□□	301	221.5	431	292	213.8	422	With	4.7	AUC30-43
AUH222-30-50N□□	301	221.5	501	292	213.8	492	Without	5.4	AUC30-50
AUH222-30-50K□□	301	221.5	501	292	213.8	492	With	5.4	AUC30-50
AUH222-36-25N□□	361	221.5	251	352	213.8	242	Without	3.8	AUC36-25
AUH222-36-25K□□	361	221.5	251	352	213.8	242	With	3.8	AUC36-25
AUH222-36-30N□□	361	221.5	301	352	213.8	292	Without	4.2	AUC36-30
AUH222-36-30K□□	361	221.5	301	352	213.8	292	With	4.2	AUC36-30
AUH222-36-36N□□	361	221.5	361	352	213.8	352	Without	4.7	AUC36-36
AUH222-36-36K□□	361	221.5	361	352	213.8	352	With	4.7	AUC36-36
AUH222-36-43N□□	361	221.5	431	352	213.8	422	Without	5.2	AUC36-43
AUH222-36-43K□□	361	221.5	431	352	213.8	422	With	5.2	AUC36-43
AUH222-36-50N□□	361	221.5	501	352	213.8	492	Without	6	AUC36-50
AUH222-36-50K□□	361	221.5	501	352	213.8	492	With	6	AUC36-50
AUH222-36-60N□□	361	221.5	601	352	213.8	592	Without	6.7	AUC60-36
AUH222-36-60K□□	361	221.5	601	352	213.8	592	With	6.7	AUC60-36
AUH222-43-30N□□	431	221.5	301	422	213.8	292	Without	4.7	AUC43-30
AUH222-43-30K□□	431	221.5	301	422	213.8	292	With	4.7	AUC43-30
AUH222-43-36N□□	431	221.5	361	422	213.8	352	Without	5.2	AUC43-36
AUH222-43-36K□□	431	221.5	361	422	213.8	352	With	5.2	AUC43-36
AUH222-43-43N□□	431	221.5	431	422	213.8	422	Without	5.8	AUC43-43
AUH222-43-43K□□	431	221.5	431	422	213.8	422	With	5.8	AUC43-43
AUH222-43-50N□□	431	221.5	501	422	213.8	492	Without	6.6	AUC43-50
AUH222-43-50K□□	431	221.5	501	422	213.8	492	With	6.6	AUC43-50
AUH222-43-60N□□	431	221.5	601	422	213.8	592	Without	7.5	AUC60-43
AUH222-43-60K□□	431	221.5	601	422	213.8	592	With	7.5	AUC60-43
AUH266-16-20N□□	161	265.9	201	151	258.2	191	Without	2.6	AUC16-20
AUH266-16-20K□□	161	265.9	201	151	258.2	191	With	2.6	AUC16-20
AUH266-16-25N□□	161	265.9	251	151	258.2	241	Without	3	AUC16-25
AUH266-16-25K□□	161	265.9	251	151	258.2	241	With	3	AUC16-25
AUH266-16-30N□□	161	265.9	301	151	258.2	291	Without	3.3	AUC16-30
AUH266-16-30K□□	161	265.9	301	151	258.2	291	With	3.3	AUC16-30
AUH266-20-20N□□	201	265.9	201	191	258.2	191	Without	2.9	AUC20-20
AUH266-20-20K□□	201	265.9	201	191	258.2	191	With	2.9	AUC20-20
AUH266-20-25N□□	201	265.9	251	191	258.2	241	Without	3.3	AUC20-25
AUH266-20-25K□□	201	265.9	251	191	258.2	241	With	3.3	AUC20-25
AUH266-20-30N□□	201	265.9	301	191	258.2	291	Without	3.7	AUC20-30
AUH266-20-30K□□	201	265.9	301	191	258.2	291	With	3.7	AUC20-30
AUH266-20-36N□□	201	265.9	361	191	258.2	351	Without	4.1	AUC20-36
AUH266-20-36K□□	201	265.9	361	191	258.2	351	With	4.1	AUC20-36
AUH266-25-25N□□	251	265.9	251	241	258.2	241	Without	3.7	AUC25-25
AUH266-25-25K□□	251	265.9	251	241	258.2	241	With	3.7	AUC25-25
AUH266-25-30N□□	251	265.9	301	241	258.2	291	Without	4.1	AUC25-30
AUH266-25-30K□□	251	265.9	301	241	258.2	291	With	4.1	AUC25-30
AUH266-25-36N□□	251	265.9	361	241	258.2	351	Without	4.6	AUC25-36
AUH266-25-36K□□	251	265.9	361	241	258.2	351	With	4.6	AUC25-36
AUH266-25-43N□□	251	265.9	431	241	258.2	421	Without	5.2	AUC25-43
AUH266-25-43K□□	251	265.9	431	241	258.2	421	With	5.2	AUC25-43
AUH266-30-20N□□	301	265.9	201	291	258.2	191	Without	3.7	AUC30-20
AUH266-30-20K□□	301	265.9	201	291	258.2	191	With	3.7	AUC30-20
AUH266-30-25N□□	301	265.9	251	291	258.2	241	Without	4.1	AUC30-25
AUH266-30-25K□□	301	265.9	251	291	258.2	241	With	4.1	AUC30-25
AUH266-30-30N□□	301	265.9	301	291	258.2	291	Without	4.6	AUC30-30
AUH266-30-30K□□	301	265.9	301	291	258.2	291	With	4.6	AUC30-30
AUH266-30-36N□□	301	265.9	361	291	258.2	351	Without	5.1	AUC30-36
AUH266-30-36K□□	301	265.9	361	291	258.2	351	With	5.1	AUC30-36
AUH266-30-43N□□	301	265.9	431	291	258.2	421	Without	5.7	AUC30-43
AUH266-30-43K□□	301	265.9	431	291	258.2	421	With	5.7	AUC30-43
AUH266-30-50N□□	301	265.9	501	291	258.2	491	Without	6.5	AUC30-50
AUH266-30-50K□□	301	265.9	501	291	258.2	491	With	6.5	AUC30-50
AUH266-36-25N□□	361	265.9	251	351	258.2	241	Without	4.6	AUC36-25
AUH266-36-25K□□	361	265.9	251	351	258.2	241	With	4.6	AUC36-25
AUH266-36-30N□□	361	265.9	301	351	258.2	291	Without	5.1	AUC36-30
AUH266-36-30K□□	361	265.9	301	351	258.2	291	With	5.1	AUC36-30
AUH266-36-36N□□	361	265.9	361	351	258.2	351	Without	5.6	AUC36-36
AUH266-36-36K□□	361	265.9	361	351	258.2	351	With	5.6	AUC36-36
AUH266-36-43N□□	361	265.9	431	351	258.2	421	Without	6.3	AUC36-43
AUH266-36-43K□□	361	265.9	431	351	258.2	421	With	6.3	AUC36-43
AUH266-36-50N□□	361	265.9	501	351	258.2	491	Without	7.1	AUC36-50
AUH266-36-50K□□	361	265.9	501	351	258.2	491	With	7.1	AUC36-50
AUH266-36-60N□□	361	265.9	601	351	258.2	591	Without	8	AUC60-36
AUH266-36-60K□□	361	265.9	601	351	258.2	591	With	8	AUC60-36
AUH266-43-30N□□	431	265.9	301	421	258.2	291	Without	5.7	AUC43-30
AUH266-43-30K□□	431	265.9	301	421	258.2	291	With	5.7	AUC43-30
AUH266-43-36N□□	431	265.9	361	421	258.2	351	Without	6.3	AUC43-36
AUH266-43-36K□□	431	265.9	361	421	258.2	351	With	6.3	AUC43-36
AUH266-43-43N□□	431	265.9	431	421	258.2	421	Without	7	AUC43-43
AUH266-43-43K□□	431	265.9	431	421	258.2	421	With	7	AUC43-43
AUH266-43-50N□□	431	265.9	501	421	258.2	491	Without	7.9	AUC43-50
AUH266-43-50K□□	431	265.9	501	421	258.2	491	With	7.9	AUC43-50
AUH266-43-60N□□	431	265.9	601	421	258.2	591	Without	8.9	AUC60-43
AUH266-43-60K□□	431	265.9	601	421	258.2	591	With	8.9	AUC60-43

Optional parts

for series LCT

Similar products

for series LCT

Discover our entire product portfolio online!

In the Daub CNC catalog, you’ll find precision CNC components, current offers, and all technical details at a glance – always up to date and available anytime.

Präzision

Catalog

Video

Aluminium

Plastic

Processing

Cooling

Front

Handles

Series AUH

ALUMINIUM CONTROL BOX

Series AUH

Flat handle (Normal / Key lock) / Color

Dimensions

Components

Dimensions

Product no. / Dimensions

Optional parts

Series EM

Series EM

Series EM

Similar products

Series CSS

Series CSS

Series CSS

We don’t just build components – we build confidence.

Links

Legals

Contact
