Series MX
MOBILE ENCLOSURE
- Mobile enclosure with easy to hold rounded design.
- 12 different color combinations and 24 different sizes available to choose from.
- Frame is made from extruded aluminium material, while the panel is ABS plastic.
- Grooves are built into the internal enclosure, allowing for easy sliding/insertion of PCB boards.
Mobile enclosure with easy to hold rounded design.
Frame is made from extruded aluminum material, while the panel is ABS plastic.
Grooves are built into the internal enclosure, allowing for easy sliding/insertion of PCBs.
12 different color combinations and 24 different sizes available to choose from.
Custom length is available.
↓See MXC series page for the custom length (depth) order from 35～500mm in 1mm intervals.
Color Type

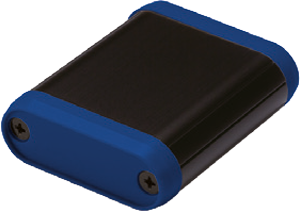

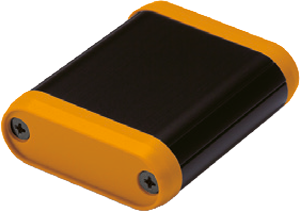

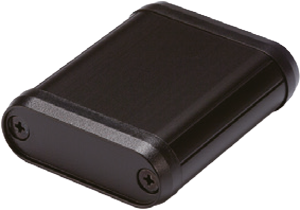

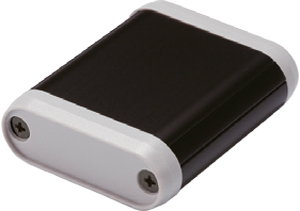

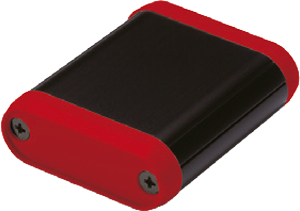

| B / B Black / Black | B / G Black / Gray | B / N Black / Navy | B / L Black / Lime | B / O Black / Orange | B / R Black / Red |
|---|---|---|---|---|---|
 |  |  |  |  |  |

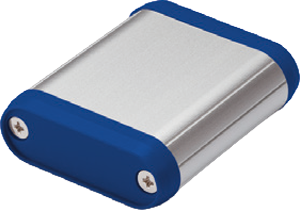

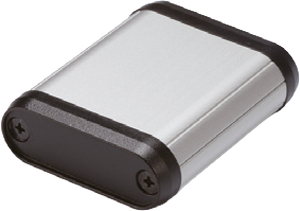

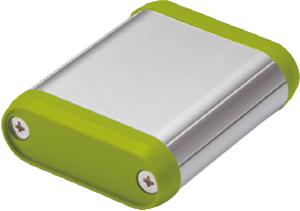

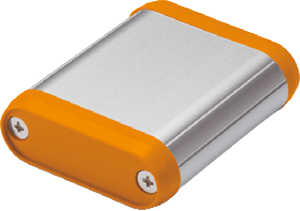

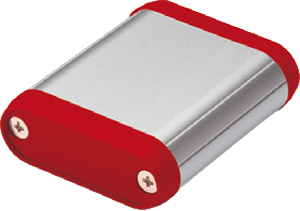

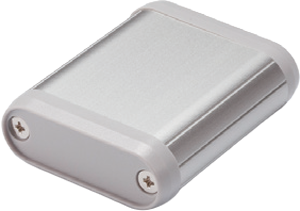

| S / B Silver / Black | S / G Silver / Gray | S / N Silver / Navy | S / L Silver / Lime | S / O Silver / Orange | S / R Silver / Red |
|---|---|---|---|---|---|
 |  |  |  |  |  |
Screw Type
| P | H |
|---|---|
 |  |

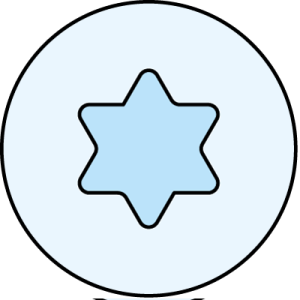

| Plus head | Hexalobular head |

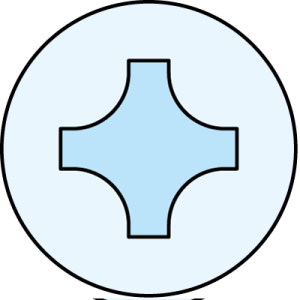

P type: Includes 4x Nickel plated and 4x Black trivalent chromate screws.
H type: Includes 4x screws that match the case color.
Custom length available in 0.1 mm intervals.
Components
| No. | Part name | Pcs | Material | Color / Finish |
|---|---|---|---|---|
| 1 | Frame | 2 | Extruded aluminium A6063S-T5 | Silver • Black / Anodized with clear coating |
| 2 | Panel | 2 | ABS UL94HB | Gray • Black / Unpainted |
| Navy • Lime • Orange • Red / Painted | ||||
| 3 | Self-tapping screw | 4 | Steel | Nickel plated • Black trivalent chromate |
Dimensions
Product no. / Dimensions
| Product no. | External dimensions | Internal dimensions | Weight (g) | ||||
|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | ||
| MX2-4-11□ | 41 | 15 | 110 | 26.6 | 8.8 | 104.6 | 50 |
| MX2-4-5□ | 41 | 15 | 50 | 26.6 | 8.8 | 44.6 | 20 |
| MX2-4-8□ | 41 | 15 | 80 | 26.6 | 8.8 | 74.6 | 35 |
| MX2-6-5□ | 57 | 18 | 50 | 41.1 | 12.3 | 45 | 35 |
| MX2-6-8□ | 57 | 18 | 75 | 41.1 | 12.3 | 70 | 50 |
| MX2-6-10□ | 57 | 18 | 100 | 41.1 | 12.3 | 95 | 70 |
| MX2-7-6□ | 70 | 20 | 60 | 52.4 | 13.1 | 54.6 | 50 |
| MX2-7-9□ | 70 | 20 | 90 | 52.4 | 13.1 | 84.6 | 80 |
| MX2-7-12□ | 70 | 20 | 120 | 52.4 | 13.1 | 114.6 | 105 |
| MX2-8-7□ | 82 | 24 | 70 | 60 | 17.2 | 64.6 | 75 |
| MX2-8-10□ | 82 | 24 | 100 | 60 | 17.2 | 94.6 | 105 |
| MX2-8-13□ | 82 | 24 | 130 | 60 | 17.2 | 124.6 | 140 |
| MX3-11-8□ | 110 | 30 | 80 | 87.3 | 23.2 | 74.6 | 110 |
| MX3-11-12□ | 110 | 30 | 120 | 87.3 | 23.2 | 114.6 | 165 |
| MX3-11-17□ | 110 | 30 | 170 | 87.3 | 23.3 | 164.6 | 235 |
| MX4-7-6□ | 70 | 35 | 60 | 44.9 | 28.1 | 53 | 65 |
| MX4-7-9□ | 70 | 35 | 90 | 44.9 | 28.1 | 83 | 100 |
| MX4-7-12□ | 70 | 35 | 120 | 44.9 | 28.1 | 113 | 130 |
| MX4-10-8□ | 95 | 40 | 80 | 64.8 | 33.1 | 73 | 115 |
| MX4-10-12□ | 95 | 40 | 120 | 64.8 | 33.1 | 113 | 175 |
| MX4-10-15□ | 95 | 40 | 150 | 64.8 | 33.1 | 143 | 215 |
| MX4-13-10□ | 130 | 35 | 100 | 104.1 | 27.7 | 94.4 | 175 |
| MX4-13-15□ | 130 | 35 | 150 | 104.1 | 27.7 | 144.4 | 265 |
| MX4-13-21□ | 130 | 35 | 210 | 104.1 | 27.7 | 204.4 | 375 |
