Series AU

ALUMINIUM ENCLOSURE

Elegantly designed aluminium enclosure with front/rear panels.
A large selection of 430 different sizes to choose from.
Top/bottom covers and front/rear panels are made from easily customizable sheet aluminium material.
Versatile aluminium enclosure suitable for use as measuring instrument, controller, industrial embedded computer, power supply, audio amplifier, and more.
Feet is selectable from adhesive rubber and aluminium types.

Series AU

Elegantly designed aluminium enclosure with front/rear panels.
A large selection of 430 different sizes to choose from.
Top/bottom covers and front/rear panels are made from easily customizable sheet aluminium material.
Versatile aluminium enclosure suitable for use as measuring instrument, controller, industrial embedded computer, power supply, audio amplifier, and more.
Feet is selectable from adhesive rubber and aluminium types.

Color

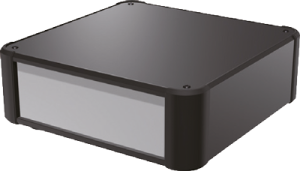

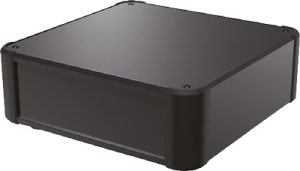

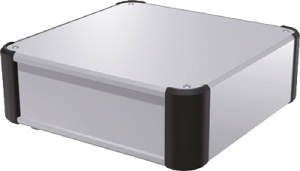

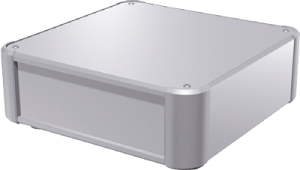

S S	S B	B S	B B

Feet / Screw

Rubber	Aluminium	Plus	Hex
Black	(Silver / Anodized)	(Silver / Nickel plated)	(Silver / Nickel plated)
Black	(Black / Anodized)	(Black / Black trivalent chromate)	(Black / Black trivalent chromate)

Hex wrench included.

Dimensions

Components

No.	Part name	Pcs	Material	Color / Finish
1	Corner block	4	Diecast aluminium ADC12	Silver • Black / Painted (Unfinished inside)
2	Frame	2	Extruded aluminium A6063S-T5	Silver • Black / Anodized with clear coating
3	Panel support frame	4	Extruded aluminium A6063S-T5	Silver • Black / Anodized with clear coating
4	Panel	2	Aluminium A1100P	Silver • Black / Anodized
5	Top cover	1	Aluminium A1100P	Silver • Black / Anodized
6	Bottom cover	1	Aluminium A1100P	Silver • Black / Anodized
7	Rubber feet : Aluminium feet	4	TPE (Elastomer) : Aluminium	Black : Silver • Black / Anodized

Dimensions

Product no. / Dimensions

Product no.	External dimensions			Internal dimensions			Feet	Weight (g)	Mounting plate
Product no.	W	H	D	w	h	d	Feet	Weight (g)	(Option)
AU266-50-50R□-□□	501	265.9	501	490	257.9	485	Rubber feet	7.1	AUC50-50
AU44-16-16A□-□□	160	44	160	153	37	146	Aluminium feet	0.7	AUC16-16
AU44-16-16R□-□□	160	44	160	153	37	146	Rubber feet	0.7	AUC16-16
AU44-16-20A□-□□	160	44	200	153	37	186	Aluminium feet	0.8	AUC16-20
AU44-16-20R□-□□	160	44	200	153	37	186	Rubber feet	0.8	AUC16-20
AU44-16-25A□-□□	160	44	250	153	37	236	Aluminium feet	1	AUC16-25
AU44-16-25R□-□□	160	44	250	153	37	236	Rubber feet	1	AUC16-25
AU44-16-30A□-□□	160	44	300	153	37	286	Aluminium feet	1.1	AUC16-30
AU44-16-30R□-□□	160	44	300	153	37	286	Rubber feet	1.1	AUC16-30
AU44-16-36A□-□□	160	44	360	153	37	346	Aluminium feet	1.3	AUC16-36
AU44-16-36R□-□□	160	44	360	153	37	346	Rubber feet	1.3	AUC16-36
AU44-16-43A□-□□	160	44	430	153	37	416	Aluminium feet	1.5	AUC16-43
AU44-16-43R□-□□	160	44	430	153	37	416	Rubber feet	1.5	AUC16-43
AU44-20-16A□-□□	200	44	160	193	37	146	Aluminium feet	0.8	AUC20-16
AU44-20-16R□-□□	200	44	160	193	37	146	Rubber feet	0.8	AUC20-16
AU44-20-20A□-□□	200	44	200	193	37	186	Aluminium feet	0.9	AUC20-20
AU44-20-20R□-□□	200	44	200	193	37	186	Rubber feet	0.9	AUC20-20
AU44-20-25A□-□□	200	44	250	193	37	236	Aluminium feet	1.1	AUC20-25
AU44-20-25R□-□□	200	44	250	193	37	236	Rubber feet	1.1	AUC20-25
AU44-20-30A□-□□	200	44	300	193	37	286	Aluminium feet	1.3	AUC20-30
AU44-20-30R□-□□	200	44	300	193	37	286	Rubber feet	1.3	AUC20-30
AU44-20-36A□-□□	200	44	360	193	37	346	Aluminium feet	1.5	AUC20-36
AU44-20-36R□-□□	200	44	360	193	37	346	Rubber feet	1.5	AUC20-36
AU44-20-43A□-□□	200	44	430	193	37	416	Aluminium feet	1.7	AUC20-43
AU44-20-43R□-□□	200	44	430	193	37	416	Rubber feet	1.7	AUC20-43
AU44-25-16A□-□□	250	44	160	243	37	146	Aluminium feet	1	AUC25-16
AU44-25-16R□-□□	250	44	160	243	37	146	Rubber feet	1	AUC25-16
AU44-25-20A□-□□	250	44	200	243	37	186	Aluminium feet	1.1	AUC25-20
AU44-25-20R□-□□	250	44	200	243	37	186	Rubber feet	1.1	AUC25-20
AU44-25-25A□-□□	250	44	250	243	37	236	Aluminium feet	1.3	AUC25-25
AU44-25-25R□-□□	250	44	250	243	37	236	Rubber feet	1.3	AUC25-25
AU44-25-30A□-□□	250	44	300	243	37	286	Aluminium feet	1.5	AUC25-30
AU44-25-30R□-□□	250	44	300	243	37	286	Rubber feet	1.5	AUC25-30
AU44-25-36A□-□□	250	44	360	243	37	346	Aluminium feet	1.7	AUC25-36
AU44-25-36R□-□□	250	44	360	243	37	346	Rubber feet	1.7	AUC25-36
AU44-25-43A□-□□	250	44	430	243	37	416	Aluminium feet	2	AUC25-43
AU44-25-43R□-□□	250	44	430	243	37	416	Rubber feet	2	AUC25-43
AU44-30-16A□-□□	300	44	160	293	37	146	Aluminium feet	1.1	AUC30-16
AU44-30-16R□-□□	300	44	160	293	37	146	Rubber feet	1.1	AUC30-16
AU44-30-20A□-□□	300	44	200	293	37	186	Aluminium feet	1.3	AUC30-20
AU44-30-20R□-□□	300	44	200	293	37	186	Rubber feet	1.3	AUC30-20
AU44-30-25A□-□□	300	44	250	293	37	236	Aluminium feet	1.5	AUC30-25
AU44-30-25R□-□□	300	44	250	293	37	236	Rubber feet	1.5	AUC30-25
AU44-30-30A□-□□	300	44	300	293	37	286	Aluminium feet	1.7	AUC30-30
AU44-30-30R□-□□	300	44	300	293	37	286	Rubber feet	1.7	AUC30-30
AU44-30-36A□-□□	300	44	360	293	37	346	Aluminium feet	2	AUC30-36
AU44-30-36R□-□□	300	44	360	293	37	346	Rubber feet	2	AUC30-36
AU44-30-43A□-□□	300	44	430	293	37	416	Aluminium feet	2.3	AUC30-43
AU44-30-43R□-□□	300	44	430	293	37	416	Rubber feet	2.3	AUC30-43
AU44-30-50A□-□□	300	44	500	293	37	486	Aluminium feet	2.6	AUC30-50
AU44-30-50R□-□□	300	44	500	293	37	486	Rubber feet	2.6	AUC30-50
AU44-36-16A□-□□	360	44	160	353	37	146	Aluminium feet	1.3	AUC36-16
AU44-36-16R□-□□	360	44	160	353	37	146	Rubber feet	1.3	AUC36-16
AU44-36-20A□-□□	360	44	200	353	37	186	Aluminium feet	1.5	AUC36-20
AU44-36-20R□-□□	360	44	200	353	37	186	Rubber feet	1.5	AUC36-20
AU44-36-25A□-□□	360	44	250	353	37	236	Aluminium feet	1.7	AUC36-25
AU44-36-25R□-□□	360	44	250	353	37	236	Rubber feet	1.7	AUC36-25
AU44-36-30A□-□□	360	44	300	353	37	286	Aluminium feet	2	AUC36-30
AU44-36-30R□-□□	360	44	300	353	37	286	Rubber feet	2	AUC36-30
AU44-36-36A□-□□	360	44	360	353	37	346	Aluminium feet	2.2	AUC36-36
AU44-36-36R□-□□	360	44	360	353	37	346	Rubber feet	2.2	AUC36-36
AU44-36-43A□-□□	360	44	430	353	37	416	Aluminium feet	2.6	AUC36-43
AU44-36-43R□-□□	360	44	430	353	37	416	Rubber feet	2.6	AUC36-43
AU44-36-50A□-□□	360	44	500	353	37	486	Aluminium feet	3	AUC36-50
AU44-36-50R□-□□	360	44	500	353	37	486	Rubber feet	3	AUC36-50
AU44-43-16A□-□□	430	44	160	423	37	146	Aluminium feet	1.5	AUC43-16
AU44-43-16R□-□□	430	44	160	423	37	146	Rubber feet	1.5	AUC43-16
AU44-43-20A□-□□	430	44	200	423	37	186	Aluminium feet	1.7	AUC43-20
AU44-43-20R□-□□	430	44	200	423	37	186	Rubber feet	1.7	AUC43-20
AU44-43-25A□-□□	430	44	250	423	37	236	Aluminium feet	2	AUC43-25
AU44-43-25R□-□□	430	44	250	423	37	236	Rubber feet	2	AUC43-25
AU44-43-30A□-□□	430	44	300	423	37	286	Aluminium feet	2.3	AUC43-30
AU44-43-30R□-□□	430	44	300	423	37	286	Rubber feet	2.3	AUC43-30
AU44-43-36A□-□□	430	44	360	423	37	346	Aluminium feet	2.6	AUC43-36
AU44-43-36R□-□□	430	44	360	423	37	346	Rubber feet	2.6	AUC43-36
AU44-43-43A□-□□	430	44	430	423	37	416	Aluminium feet	3	AUC43-43
AU44-43-43R□-□□	430	44	430	423	37	416	Rubber feet	3	AUC43-43
AU44-43-50A□-□□	430	44	500	423	37	486	Aluminium feet	3.4	AUC43-50
AU44-43-50R□-□□	430	44	500	423	37	486	Rubber feet	3.4	AUC43-50
AU44-50-30A□-□□	500	44	300	493	37	286	Aluminium feet	2.6	AUC50-30
AU44-50-30R□-□□	500	44	300	493	37	286	Rubber feet	2.6	AUC50-30
AU44-50-36A□-□□	500	44	360	493	37	346	Aluminium feet	3	AUC50-36
AU44-50-36R□-□□	500	44	360	493	37	346	Rubber feet	3	AUC50-36
AU44-50-43A□-□□	500	44	430	493	37	416	Aluminium feet	3.4	AUC50-43
AU44-50-43R□-□□	500	44	430	493	37	416	Rubber feet	3.4	AUC50-43
AU44-50-50A□-□□	500	44	500	493	37	486	Aluminium feet	3.9	AUC50-50
AU44-50-50R□-□□	500	44	500	493	37	486	Rubber feet	3.9	AUC50-50
AU66-16-16A□-□□	160	66	160	153	59	146	Aluminium feet	0.9	AUC16-16
AU66-16-16R□-□□	160	66	160	153	59	146	Rubber feet	0.9	AUC16-16
AU66-16-20A□-□□	160	66	200	153	59	186	Aluminium feet	1	AUC16-20
AU66-16-20R□-□□	160	66	200	153	59	186	Rubber feet	1	AUC16-20
AU66-16-25A□-□□	160	66	250	153	59	236	Aluminium feet	1.2	AUC16-25
AU66-16-25R□-□□	160	66	250	153	59	236	Rubber feet	1.2	AUC16-25
AU66-16-30A□-□□	160	66	300	153	59	286	Aluminium feet	1.3	AUC16-30
AU66-16-30R□-□□	160	66	300	153	59	286	Rubber feet	1.3	AUC16-30
AU66-16-36A□-□□	160	66	360	153	59	346	Aluminium feet	1.5	AUC16-36
AU66-16-36R□-□□	160	66	360	153	59	346	Rubber feet	1.5	AUC16-36
AU66-16-43A□-□□	160	66	430	153	59	416	Aluminium feet	1.7	AUC16-43
AU66-16-43R□-□□	160	66	430	153	59	416	Rubber feet	1.7	AUC16-43
AU66-20-16A□-□□	200	66	160	193	59	146	Aluminium feet	1	AUC20-16
AU66-20-16R□-□□	200	66	160	193	59	146	Rubber feet	1	AUC20-16
AU66-20-20A□-□□	200	66	200	193	59	186	Aluminium feet	1.1	AUC20-20
AU66-20-20R□-□□	200	66	200	193	59	186	Rubber feet	1.1	AUC20-20
AU66-20-25A□-□□	200	66	250	193	59	236	Aluminium feet	1.3	AUC20-25
AU66-20-25R□-□□	200	66	250	193	59	236	Rubber feet	1.3	AUC20-25
AU66-20-30A□-□□	200	66	300	193	59	286	Aluminium feet	1.5	AUC20-30
AU66-20-30R□-□□	200	66	300	193	59	286	Rubber feet	1.5	AUC20-30
AU66-20-36A□-□□	200	66	360	193	59	346	Aluminium feet	1.7	AUC20-36
AU66-20-36R□-□□	200	66	360	193	59	346	Rubber feet	1.7	AUC20-36
AU66-20-43A□-□□	200	66	430	193	59	416	Aluminium feet	2	AUC20-43
AU66-20-43R□-□□	200	66	430	193	59	416	Rubber feet	2	AUC20-43
AU66-25-16A□-□□	250	66	160	243	59	146	Aluminium feet	1.1	AUC25-16
AU66-25-16R□-□□	250	66	160	243	59	146	Rubber feet	1.1	AUC25-16
AU66-25-20A□-□□	250	66	200	243	59	186	Aluminium feet	1.3	AUC25-20
AU66-25-20R□-□□	250	66	200	243	59	186	Rubber feet	1.3	AUC25-20
AU66-25-25A□-□□	250	66	250	243	59	236	Aluminium feet	1.5	AUC25-25
AU66-25-25R□-□□	250	66	250	243	59	236	Rubber feet	1.5	AUC25-25
AU66-25-30A□-□□	250	66	300	243	59	286	Aluminium feet	1.7	AUC25-30
AU66-25-30R□-□□	250	66	300	243	59	286	Rubber feet	1.7	AUC25-30
AU66-25-36A□-□□	250	66	360	243	59	346	Aluminium feet	2	AUC25-36
AU66-25-36R□-□□	250	66	360	243	59	346	Rubber feet	2	AUC25-36
AU66-25-43A□-□□	250	66	430	243	59	416	Aluminium feet	2.3	AUC25-43
AU66-25-43R□-□□	250	66	430	243	59	416	Rubber feet	2.3	AUC25-43
AU66-30-16A□-□□	300	66	160	293	59	146	Aluminium feet	1.3	AUC30-16
AU66-30-16R□-□□	300	66	160	293	59	146	Rubber feet	1.3	AUC30-16
AU66-30-20A□-□□	300	66	200	293	59	186	Aluminium feet	1.5	AUC30-20
AU66-30-20R□-□□	300	66	200	293	59	186	Rubber feet	1.5	AUC30-20
AU66-30-25A□-□□	300	66	250	293	59	236	Aluminium feet	1.7	AUC30-25
AU66-30-25R□-□□	300	66	250	293	59	236	Rubber feet	1.7	AUC30-25
AU66-30-30A□-□□	300	66	300	293	59	286	Aluminium feet	1.9	AUC30-30
AU66-30-30R□-□□	300	66	300	293	59	286	Rubber feet	1.9	AUC30-30
AU66-30-36A□-□□	300	66	360	293	59	346	Aluminium feet	2.2	AUC30-36
AU66-30-36R□-□□	300	66	360	293	59	346	Rubber feet	2.2	AUC30-36
AU66-30-43A□-□□	300	66	430	293	59	416	Aluminium feet	2.6	AUC30-43
AU66-30-43R□-□□	300	66	430	293	59	416	Rubber feet	2.6	AUC30-43
AU66-30-50A□-□□	300	66	500	293	59	486	Aluminium feet	2.9	AUC30-50
AU66-30-50R□-□□	300	66	500	293	59	486	Rubber feet	2.9	AUC30-50
AU66-36-16A□-□□	360	66	160	353	59	146	Aluminium feet	1.5	AUC36-16
AU66-36-16R□-□□	360	66	160	353	59	146	Rubber feet	1.5	AUC36-16
AU66-36-20A□-□□	360	66	200	353	59	186	Aluminium feet	1.7	AUC36-20
AU66-36-20R□-□□	360	66	200	353	59	186	Rubber feet	1.7	AUC36-20
AU66-36-25A□-□□	360	66	250	353	59	236	Aluminium feet	1.9	AUC36-25
AU66-36-25R□-□□	360	66	250	353	59	236	Rubber feet	1.9	AUC36-25
AU66-36-30A□-□□	360	66	300	353	59	286	Aluminium feet	2.2	AUC36-30
AU66-36-30R□-□□	360	66	300	353	59	286	Rubber feet	2.2	AUC36-30
AU66-36-36A□-□□	360	66	360	353	59	346	Aluminium feet	2.5	AUC36-36
AU66-36-36R□-□□	360	66	360	353	59	346	Rubber feet	2.5	AUC36-36
AU66-36-43A□-□□	360	66	430	353	59	416	Aluminium feet	2.9	AUC36-43
AU66-36-43R□-□□	360	66	430	353	59	416	Rubber feet	2.9	AUC36-43
AU66-36-50A□-□□	360	66	500	353	59	486	Aluminium feet	3.3	AUC36-50
AU66-36-50R□-□□	360	66	500	353	59	486	Rubber feet	3.3	AUC36-50
AU66-43-16A□-□□	430	66	160	423	59	146	Aluminium feet	1.7	AUC43-16
AU66-43-16R□-□□	430	66	160	423	59	146	Rubber feet	1.7	AUC43-16
AU66-43-20A□-□□	430	66	200	423	59	186	Aluminium feet	1.9	AUC43-20
AU66-43-20R□-□□	430	66	200	423	59	186	Rubber feet	1.9	AUC43-20
AU66-43-25A□-□□	430	66	250	423	59	236	Aluminium feet	2.2	AUC43-25
AU66-43-25R□-□□	430	66	250	423	59	236	Rubber feet	2.2	AUC43-25
AU66-43-30A□-□□	430	66	300	423	59	286	Aluminium feet	2.5	AUC43-30
AU66-43-30R□-□□	430	66	300	423	59	286	Rubber feet	2.5	AUC43-30
AU66-43-36A□-□□	430	66	360	423	59	346	Aluminium feet	2.9	AUC43-36
AU66-43-36R□-□□	430	66	360	423	59	346	Rubber feet	2.9	AUC43-36
AU66-43-43A□-□□	430	66	430	423	59	416	Aluminium feet	3.3	AUC43-43
AU66-43-43R□-□□	430	66	430	423	59	416	Rubber feet	3.3	AUC43-43
AU66-43-50A□-□□	430	66	500	423	59	486	Aluminium feet	3.7	AUC43-50
AU66-43-50R□-□□	430	66	500	423	59	486	Rubber feet	3.7	AUC43-50
AU66-50-30A□-□□	500	66	300	493	59	286	Aluminium feet	2.8	AUC50-30
AU66-50-30R□-□□	500	66	300	493	59	286	Rubber feet	2.8	AUC50-30
AU66-50-36A□-□□	500	66	360	493	59	346	Aluminium feet	3.3	AUC50-36
AU66-50-36R□-□□	500	66	360	493	59	346	Rubber feet	3.3	AUC50-36
AU66-50-43A□-□□	500	66	430	493	59	416	Aluminium feet	3.7	AUC50-43
AU66-50-43R□-□□	500	66	430	493	59	416	Rubber feet	3.7	AUC50-43
AU66-50-50A□-□□	500	66	500	493	59	486	Aluminium feet	4.2	AUC50-50
AU66-50-50R□-□□	500	66	500	493	59	486	Rubber feet	4.2	AUC50-50
AU88-16-16A□-□□	160	88	160	153	81	146	Aluminium feet	0.9	AUC16-16
AU88-16-16R□-□□	160	88	160	153	81	146	Rubber feet	0.9	AUC16-16
AU88-16-20A□-□□	160	88	200	153	81	186	Aluminium feet	1.1	AUC16-20
AU88-16-20R□-□□	160	88	200	153	81	186	Rubber feet	1.1	AUC16-20
AU88-16-25A□-□□	160	88	250	153	81	236	Aluminium feet	1.3	AUC16-25
AU88-16-25R□-□□	160	88	250	153	81	236	Rubber feet	1.3	AUC16-25
AU88-16-30A□-□□	160	88	300	153	81	286	Aluminium feet	1.4	AUC16-30
AU88-16-30R□-□□	160	88	300	153	81	286	Rubber feet	1.4	AUC16-30
AU88-16-36A□-□□	160	88	360	153	81	346	Aluminium feet	1.7	AUC16-36
AU88-16-36R□-□□	160	88	360	153	81	346	Rubber feet	1.7	AUC16-36
AU88-16-43A□-□□	160	88	430	153	81	416	Aluminium feet	1.9	AUC16-43
AU88-16-43R□-□□	160	88	430	153	81	416	Rubber feet	1.9	AUC16-43
AU88-20-16A□-□□	200	88	160	193	81	146	Aluminium feet	1.1	AUC20-16
AU88-20-16R□-□□	200	88	160	193	81	146	Rubber feet	1.1	AUC20-16
AU88-20-20A□-□□	200	88	200	193	81	186	Aluminium feet	1.2	AUC20-20
AU88-20-20R□-□□	200	88	200	193	81	186	Rubber feet	1.2	AUC20-20
AU88-20-25A□-□□	200	88	250	193	81	236	Aluminium feet	1.4	AUC20-25
AU88-20-25R□-□□	200	88	250	193	81	236	Rubber feet	1.4	AUC20-25
AU88-20-30A□-□□	200	88	300	193	81	286	Aluminium feet	1.6	AUC20-30
AU88-20-30R□-□□	200	88	300	193	81	286	Rubber feet	1.6	AUC20-30
AU88-20-36A□-□□	200	88	360	193	81	346	Aluminium feet	1.8	AUC20-36
AU88-20-36R□-□□	200	88	360	193	81	346	Rubber feet	1.8	AUC20-36
AU88-20-43A□-□□	200	88	430	193	81	416	Aluminium feet	2.1	AUC20-43
AU88-20-43R□-□□	200	88	430	193	81	416	Rubber feet	2.1	AUC20-43
AU88-25-16A□-□□	250	88	160	243	81	146	Aluminium feet	1.2	AUC25-16
AU88-25-16R□-□□	250	88	160	243	81	146	Rubber feet	1.2	AUC25-16
AU88-25-20A□-□□	250	88	200	243	81	186	Aluminium feet	1.4	AUC25-20
AU88-25-20R□-□□	250	88	200	243	81	186	Rubber feet	1.4	AUC25-20
AU88-25-25A□-□□	250	88	250	243	81	236	Aluminium feet	1.6	AUC25-25
AU88-25-25R□-□□	250	88	250	243	81	236	Rubber feet	1.6	AUC25-25
AU88-25-30A□-□□	250	88	300	243	81	286	Aluminium feet	1.8	AUC25-30
AU88-25-30R□-□□	250	88	300	243	81	286	Rubber feet	1.8	AUC25-30
AU88-25-36A□-□□	250	88	360	243	81	346	Aluminium feet	2.1	AUC25-36
AU88-25-36R□-□□	250	88	360	243	81	346	Rubber feet	2.1	AUC25-36
AU88-25-43A□-□□	250	88	430	243	81	416	Aluminium feet	2.4	AUC25-43
AU88-25-43R□-□□	250	88	430	243	81	416	Rubber feet	2.4	AUC25-43
AU88-30-16A□-□□	300	88	160	293	81	146	Aluminium feet	1.4	AUC30-16
AU88-30-16R□-□□	300	88	160	293	81	146	Rubber feet	1.4	AUC30-16
AU88-30-20A□-□□	300	88	200	293	81	186	Aluminium feet	1.6	AUC30-20
AU88-30-20R□-□□	300	88	200	293	81	186	Rubber feet	1.6	AUC30-20
AU88-30-25A□-□□	300	88	250	293	81	236	Aluminium feet	1.8	AUC30-25
AU88-30-25R□-□□	300	88	250	293	81	236	Rubber feet	1.8	AUC30-25
AU88-30-30A□-□□	300	88	300	293	81	286	Aluminium feet	2.1	AUC30-30
AU88-30-30R□-□□	300	88	300	293	81	286	Rubber feet	2.1	AUC30-30
AU88-30-36A□-□□	300	88	360	293	81	346	Aluminium feet	2.4	AUC30-36
AU88-30-36R□-□□	300	88	360	293	81	346	Rubber feet	2.4	AUC30-36
AU88-30-43A□-□□	300	88	430	293	81	416	Aluminium feet	2.7	AUC30-43
AU88-30-43R□-□□	300	88	430	293	81	416	Rubber feet	2.7	AUC30-43
AU88-30-50A□-□□	300	88	500	293	81	486	Aluminium feet	3.1	AUC30-50
AU88-30-50R□-□□	300	88	500	293	81	486	Rubber feet	3.1	AUC30-50
AU88-36-16A□-□□	360	88	160	353	81	146	Aluminium feet	1.6	AUC36-16
AU88-36-16R□-□□	360	88	160	353	81	146	Rubber feet	1.6	AUC36-16
AU88-36-20A□-□□	360	88	200	353	81	186	Aluminium feet	1.8	AUC36-20
AU88-36-20R□-□□	360	88	200	353	81	186	Rubber feet	1.8	AUC36-20
AU88-36-25A□-□□	360	88	250	353	81	236	Aluminium feet	2.1	AUC36-25
AU88-36-25R□-□□	360	88	250	353	81	236	Rubber feet	2.1	AUC36-25
AU88-36-30A□-□□	360	88	300	353	81	286	Aluminium feet	2.3	AUC36-30
AU88-36-30R□-□□	360	88	300	353	81	286	Rubber feet	2.3	AUC36-30
AU88-36-36A□-□□	360	88	360	353	81	346	Aluminium feet	2.7	AUC36-36
AU88-36-36R□-□□	360	88	360	353	81	346	Rubber feet	2.7	AUC36-36
AU88-36-43A□-□□	360	88	430	353	81	416	Aluminium feet	3.1	AUC36-43
AU88-36-43R□-□□	360	88	430	353	81	416	Rubber feet	3.1	AUC36-43
AU88-36-50A□-□□	360	88	500	353	81	486	Aluminium feet	3.5	AUC36-50
AU88-36-50R□-□□	360	88	500	353	81	486	Rubber feet	3.5	AUC36-50
AU88-43-16A□-□□	430	88	160	423	81	146	Aluminium feet	1.8	AUC43-16
AU88-43-16R□-□□	430	88	160	423	81	146	Rubber feet	1.8	AUC43-16
AU88-43-20A□-□□	430	88	200	423	81	186	Aluminium feet	2.1	AUC43-20
AU88-43-20R□-□□	430	88	200	423	81	186	Rubber feet	2.1	AUC43-20
AU88-43-25A□-□□	430	88	250	423	81	236	Aluminium feet	2.4	AUC43-25
AU88-43-25R□-□□	430	88	250	423	81	236	Rubber feet	2.4	AUC43-25
AU88-43-30A□-□□	430	88	300	423	81	286	Aluminium feet	2.7	AUC43-30
AU88-43-30R□-□□	430	88	300	423	81	286	Rubber feet	2.7	AUC43-30
AU88-43-36A□-□□	430	88	360	423	81	346	Aluminium feet	3.1	AUC43-36
AU88-43-36R□-□□	430	88	360	423	81	346	Rubber feet	3.1	AUC43-36
AU88-43-43A□-□□	430	88	430	423	81	416	Aluminium feet	3.5	AUC43-43
AU88-43-43R□-□□	430	88	430	423	81	416	Rubber feet	3.5	AUC43-43
AU88-43-50A□-□□	430	88	500	423	81	486	Aluminium feet	4	AUC43-50
AU88-43-50R□-□□	430	88	500	423	81	486	Rubber feet	4	AUC43-50
AU88-50-30A□-□□	500	88	300	493	81	286	Aluminium feet	3	AUC50-30
AU88-50-30R□-□□	500	88	300	493	81	286	Rubber feet	3	AUC50-30
AU88-50-36A□-□□	500	88	360	493	81	346	Aluminium feet	3.4	AUC50-36
AU88-50-36R□-□□	500	88	360	493	81	346	Rubber feet	3.4	AUC50-36
AU88-50-43A□-□□	500	88	430	493	81	416	Aluminium feet	3.9	AUC50-43
AU88-50-43R□-□□	500	88	430	493	81	416	Rubber feet	3.9	AUC50-43
AU88-50-50A□-□□	500	88	500	493	81	486	Aluminium feet	4.4	AUC50-50
AU88-50-50R□-□□	500	88	500	493	81	486	Rubber feet	4.4	AUC50-50
AU99-16-16A□-□□	160	99	160	153	92	146	Aluminium feet	1	AUC16-16
AU99-16-16R□-□□	160	99	160	153	92	146	Rubber feet	1	AUC16-16
AU99-16-20A□-□□	160	99	200	153	92	186	Aluminium feet	1.1	AUC16-20
AU99-16-20R□-□□	160	99	200	153	92	186	Rubber feet	1.1	AUC16-20
AU99-16-25A□-□□	160	99	250	153	92	236	Aluminium feet	1.3	AUC16-25
AU99-16-25R□-□□	160	99	250	153	92	236	Rubber feet	1.3	AUC16-25
AU99-16-30A□-□□	160	99	300	153	92	286	Aluminium feet	1.4	AUC16-30
AU99-16-30R□-□□	160	99	300	153	92	286	Rubber feet	1.4	AUC16-30
AU99-16-36A□-□□	160	99	360	153	92	346	Aluminium feet	1.7	AUC16-36
AU99-16-36R□-□□	160	99	360	153	92	346	Rubber feet	1.7	AUC16-36
AU99-16-43A□-□□	160	99	430	153	92	416	Aluminium feet	1.9	AUC16-43
AU99-16-43R□-□□	160	99	430	153	92	416	Rubber feet	1.9	AUC16-43
AU99-20-16A□-□□	200	99	160	193	92	146	Aluminium feet	1.1	AUC20-16
AU99-20-16R□-□□	200	99	160	193	92	146	Rubber feet	1.1	AUC20-16
AU99-20-20A□-□□	200	99	200	193	92	186	Aluminium feet	1.2	AUC20-20
AU99-20-20R□-□□	200	99	200	193	92	186	Rubber feet	1.2	AUC20-20
AU99-20-25A□-□□	200	99	250	193	92	236	Aluminium feet	1.4	AUC20-25
AU99-20-25R□-□□	200	99	250	193	92	236	Rubber feet	1.4	AUC20-25
AU99-20-30A□-□□	200	99	300	193	92	286	Aluminium feet	1.6	AUC20-30
AU99-20-30R□-□□	200	99	300	193	92	286	Rubber feet	1.6	AUC20-30
AU99-20-36A□-□□	200	99	360	193	92	346	Aluminium feet	1.9	AUC20-36
AU99-20-36R□-□□	200	99	360	193	92	346	Rubber feet	1.9	AUC20-36
AU99-20-43A□-□□	200	99	430	193	92	416	Aluminium feet	2.2	AUC20-43
AU99-20-43R□-□□	200	99	430	193	92	416	Rubber feet	2.2	AUC20-43
AU99-25-16A□-□□	250	99	160	243	92	146	Aluminium feet	1.2	AUC25-16
AU99-25-16R□-□□	250	99	160	243	92	146	Rubber feet	1.2	AUC25-16
AU99-25-20A□-□□	250	99	200	243	92	186	Aluminium feet	1.4	AUC25-20
AU99-25-20R□-□□	250	99	200	243	92	186	Rubber feet	1.4	AUC25-20
AU99-25-25A□-□□	250	99	250	243	92	236	Aluminium feet	1.6	AUC25-25
AU99-25-25R□-□□	250	99	250	243	92	236	Rubber feet	1.6	AUC25-25
AU99-25-30A□-□□	250	99	300	243	92	286	Aluminium feet	1.9	AUC25-30
AU99-25-30R□-□□	250	99	300	243	92	286	Rubber feet	1.9	AUC25-30
AU99-25-36A□-□□	250	99	360	243	92	346	Aluminium feet	2.1	AUC25-36
AU99-25-36R□-□□	250	99	360	243	92	346	Rubber feet	2.1	AUC25-36
AU99-25-43A□-□□	250	99	430	243	92	416	Aluminium feet	2.5	AUC25-43
AU99-25-43R□-□□	250	99	430	243	92	416	Rubber feet	2.5	AUC25-43
AU99-30-16A□-□□	300	99	160	293	92	146	Aluminium feet	1.4	AUC30-16
AU99-30-16R□-□□	300	99	160	293	92	146	Rubber feet	1.4	AUC30-16
AU99-30-20A□-□□	300	99	200	293	92	186	Aluminium feet	1.6	AUC30-20
AU99-30-20R□-□□	300	99	200	293	92	186	Rubber feet	1.6	AUC30-20
AU99-30-25A□-□□	300	99	250	293	92	236	Aluminium feet	1.9	AUC30-25
AU99-30-25R□-□□	300	99	250	293	92	236	Rubber feet	1.9	AUC30-25
AU99-30-30A□-□□	300	99	300	293	92	286	Aluminium feet	2.1	AUC30-30
AU99-30-30R□-□□	300	99	300	293	92	286	Rubber feet	2.1	AUC30-30
AU99-30-36A□-□□	300	99	360	293	92	346	Aluminium feet	2.4	AUC30-36
AU99-30-36R□-□□	300	99	360	293	92	346	Rubber feet	2.4	AUC30-36
AU99-30-43A□-□□	300	99	430	293	92	416	Aluminium feet	2.8	AUC30-43
AU99-30-43R□-□□	300	99	430	293	92	416	Rubber feet	2.8	AUC30-43
AU99-30-50A□-□□	300	99	500	293	92	486	Aluminium feet	3.1	AUC30-50
AU99-30-50R□-□□	300	99	500	293	92	486	Rubber feet	3.1	AUC30-50
AU99-36-16A□-□□	360	99	160	353	92	146	Aluminium feet	1.6	AUC36-16
AU99-36-16R□-□□	360	99	160	353	92	146	Rubber feet	1.6	AUC36-16
AU99-36-20A□-□□	360	99	200	353	92	186	Aluminium feet	1.8	AUC36-20
AU99-36-20R□-□□	360	99	200	353	92	186	Rubber feet	1.8	AUC36-20
AU99-36-25A□-□□	360	99	250	353	92	236	Aluminium feet	2.1	AUC36-25
AU99-36-25R□-□□	360	99	250	353	92	236	Rubber feet	2.1	AUC36-25
AU99-36-30A□-□□	360	99	300	353	92	286	Aluminium feet	2.4	AUC36-30
AU99-36-30R□-□□	360	99	300	353	92	286	Rubber feet	2.4	AUC36-30
AU99-36-36A□-□□	360	99	360	353	92	346	Aluminium feet	2.7	AUC36-36
AU99-36-36R□-□□	360	99	360	353	92	346	Rubber feet	2.7	AUC36-36
AU99-36-43A□-□□	360	99	430	353	92	416	Aluminium feet	3.2	AUC36-43
AU99-36-43R□-□□	360	99	430	353	92	416	Rubber feet	3.2	AUC36-43
AU99-36-50A□-□□	360	99	500	353	92	486	Aluminium feet	3.6	AUC36-50
AU99-36-50R□-□□	360	99	500	353	92	486	Rubber feet	3.6	AUC36-50
AU99-43-16A□-□□	430	99	160	423	92	146	Aluminium feet	1.8	AUC43-16
AU99-43-16R□-□□	430	99	160	423	92	146	Rubber feet	1.8	AUC43-16
AU99-43-20A□-□□	430	99	200	423	92	186	Aluminium feet	2.1	AUC43-20
AU99-43-20R□-□□	430	99	200	423	92	186	Rubber feet	2.1	AUC43-20
AU99-43-25A□-□□	430	99	250	423	92	236	Aluminium feet	2.4	AUC43-25
AU99-43-25R□-□□	430	99	250	423	92	236	Rubber feet	2.4	AUC43-25
AU99-43-30A□-□□	430	99	300	423	92	286	Aluminium feet	2.7	AUC43-30
AU99-43-30R□-□□	430	99	300	423	92	286	Rubber feet	2.7	AUC43-30
AU99-43-36A□-□□	430	99	360	423	92	346	Aluminium feet	3.1	AUC43-36
AU99-43-36R□-□□	430	99	360	423	92	346	Rubber feet	3.1	AUC43-36
AU99-43-43A□-□□	430	99	430	423	92	416	Aluminium feet	3.6	AUC43-43
AU99-43-43R□-□□	430	99	430	423	92	416	Rubber feet	3.6	AUC43-43
AU99-43-50A□-□□	430	99	500	423	92	486	Aluminium feet	4	AUC43-50
AU99-43-50R□-□□	430	99	500	423	92	486	Rubber feet	4	AUC43-50
AU99-50-30A□-□□	500	99	300	493	92	286	Aluminium feet	3.1	AUC50-30
AU99-50-30R□-□□	500	99	300	493	92	286	Rubber feet	3.1	AUC50-30
AU99-50-36A□-□□	500	99	360	493	92	346	Aluminium feet	3.5	AUC50-36
AU99-50-36R□-□□	500	99	360	493	92	346	Rubber feet	3.5	AUC50-36
AU99-50-43A□-□□	500	99	430	493	92	416	Aluminium feet	4	AUC50-43
AU99-50-43R□-□□	500	99	430	493	92	416	Rubber feet	4	AUC50-43
AU99-50-50A□-□□	500	99	500	493	92	486	Aluminium feet	4.5	AUC50-50
AU99-50-50R□-□□	500	99	500	493	92	486	Rubber feet	4.5	AUC50-50
AU115-16-16A□-□□	160	115	160	153	108	146	Aluminium feet	1	AUC16-16
AU115-16-16R□-□□	160	115	160	153	108	146	Rubber feet	1	AUC16-16
AU115-16-20A□-□□	160	115	200	153	108	186	Aluminium feet	1.2	AUC16-20
AU115-16-20R□-□□	160	115	200	153	108	186	Rubber feet	1.2	AUC16-20
AU115-16-25A□-□□	160	115	250	153	108	236	Aluminium feet	1.4	AUC16-25
AU115-16-25R□-□□	160	115	250	153	108	236	Rubber feet	1.4	AUC16-25
AU115-16-30A□-□□	160	115	300	153	108	286	Aluminium feet	1.5	AUC16-30
AU115-16-30R□-□□	160	115	300	153	108	286	Rubber feet	1.5	AUC16-30
AU115-16-36A□-□□	160	115	360	153	108	346	Aluminium feet	1.8	AUC16-36
AU115-16-36R□-□□	160	115	360	153	108	346	Rubber feet	1.8	AUC16-36
AU115-16-43A□-□□	160	115	430	153	108	416	Aluminium feet	2.1	AUC16-43
AU115-16-43R□-□□	160	115	430	153	108	416	Rubber feet	2.1	AUC16-43
AU115-20-16A□-□□	200	115	160	193	108	146	Aluminium feet	1.2	AUC20-16
AU115-20-16R□-□□	200	115	160	193	108	146	Rubber feet	1.2	AUC20-16
AU115-20-20A□-□□	200	115	200	193	108	186	Aluminium feet	1.3	AUC20-20
AU115-20-20R□-□□	200	115	200	193	108	186	Rubber feet	1.3	AUC20-20
AU115-20-25A□-□□	200	115	250	193	108	236	Aluminium feet	1.5	AUC20-25
AU115-20-25R□-□□	200	115	250	193	108	236	Rubber feet	1.5	AUC20-25
AU115-20-30A□-□□	200	115	300	193	108	286	Aluminium feet	1.7	AUC20-30
AU115-20-30R□-□□	200	115	300	193	108	286	Rubber feet	1.7	AUC20-30
AU115-20-36A□-□□	200	115	360	193	108	346	Aluminium feet	2	AUC20-36
AU115-20-36R□-□□	200	115	360	193	108	346	Rubber feet	2	AUC20-36
AU115-20-43A□-□□	200	115	430	193	108	416	Aluminium feet	2.3	AUC20-43
AU115-20-43R□-□□	200	115	430	193	108	416	Rubber feet	2.3	AUC20-43
AU115-25-16A□-□□	250	115	160	243	108	146	Aluminium feet	1.3	AUC25-16
AU115-25-16R□-□□	250	115	160	243	108	146	Rubber feet	1.3	AUC25-16
AU115-25-20A□-□□	250	115	200	243	108	186	Aluminium feet	1.5	AUC25-20
AU115-25-20R□-□□	250	115	200	243	108	186	Rubber feet	1.5	AUC25-20
AU115-25-25A□-□□	250	115	250	243	108	236	Aluminium feet	1.7	AUC25-25
AU115-25-25R□-□□	250	115	250	243	108	236	Rubber feet	1.7	AUC25-25
AU115-25-30A□-□□	250	115	300	243	108	286	Aluminium feet	2	AUC25-30
AU115-25-30R□-□□	250	115	300	243	108	286	Rubber feet	2	AUC25-30
AU115-25-36A□-□□	250	115	360	243	108	346	Aluminium feet	2.3	AUC25-36
AU115-25-36R□-□□	250	115	360	243	108	346	Rubber feet	2.3	AUC25-36
AU115-25-43A□-□□	250	115	430	243	108	416	Aluminium feet	2.6	AUC25-43
AU115-25-43R□-□□	250	115	430	243	108	416	Rubber feet	2.6	AUC25-43
AU115-30-16A□-□□	300	115	160	293	108	146	Aluminium feet	1.5	AUC30-16
AU115-30-16R□-□□	300	115	160	293	108	146	Rubber feet	1.5	AUC30-16
AU115-30-20A□-□□	300	115	200	293	108	186	Aluminium feet	1.7	AUC30-20
AU115-30-20R□-□□	300	115	200	293	108	186	Rubber feet	1.7	AUC30-20
AU115-30-25A□-□□	300	115	250	293	108	236	Aluminium feet	2	AUC30-25
AU115-30-25R□-□□	300	115	250	293	108	236	Rubber feet	2	AUC30-25
AU115-30-30A□-□□	300	115	300	293	108	286	Aluminium feet	2.2	AUC30-30
AU115-30-30R□-□□	300	115	300	293	108	286	Rubber feet	2.2	AUC30-30
AU115-30-36A□-□□	300	115	360	293	108	346	Aluminium feet	2.5	AUC30-36
AU115-30-36R□-□□	300	115	360	293	108	346	Rubber feet	2.5	AUC30-36
AU115-30-43A□-□□	300	115	430	293	108	416	Aluminium feet	2.9	AUC30-43
AU115-30-43R□-□□	300	115	430	293	108	416	Rubber feet	2.9	AUC30-43
AU115-30-50A□-□□	300	115	500	293	108	486	Aluminium feet	3.3	AUC30-50
AU115-30-50R□-□□	300	115	500	293	108	486	Rubber feet	3.3	AUC30-50
AU115-36-16A□-□□	360	115	160	353	108	146	Aluminium feet	1.7	AUC36-16
AU115-36-16R□-□□	360	115	160	353	108	146	Rubber feet	1.7	AUC36-16
AU115-36-20A□-□□	360	115	200	353	108	186	Aluminium feet	1.9	AUC36-20
AU115-36-20R□-□□	360	115	200	353	108	186	Rubber feet	1.9	AUC36-20
AU115-36-25A□-□□	360	115	250	353	108	236	Aluminium feet	2.2	AUC36-25
AU115-36-25R□-□□	360	115	250	353	108	236	Rubber feet	2.2	AUC36-25
AU115-36-30A□-□□	360	115	300	353	108	286	Aluminium feet	2.5	AUC36-30
AU115-36-30R□-□□	360	115	300	353	108	286	Rubber feet	2.5	AUC36-30
AU115-36-36A□-□□	360	115	360	353	108	346	Aluminium feet	2.9	AUC36-36
AU115-36-36R□-□□	360	115	360	353	108	346	Rubber feet	2.9	AUC36-36
AU115-36-43A□-□□	360	115	430	353	108	416	Aluminium feet	3.3	AUC36-43
AU115-36-43R□-□□	360	115	430	353	108	416	Rubber feet	3.3	AUC36-43
AU115-36-50A□-□□	360	115	500	353	108	486	Aluminium feet	3.7	AUC36-50
AU115-36-50R□-□□	360	115	500	353	108	486	Rubber feet	3.7	AUC36-50
AU115-43-16A□-□□	430	115	160	423	108	146	Aluminium feet	2	AUC43-16
AU115-43-16R□-□□	430	115	160	423	108	146	Rubber feet	2	AUC43-16
AU115-43-20A□-□□	430	115	200	423	108	186	Aluminium feet	2.2	AUC43-20
AU115-43-20R□-□□	430	115	200	423	108	186	Rubber feet	2.2	AUC43-20
AU115-43-25A□-□□	430	115	250	423	108	236	Aluminium feet	2.6	AUC43-25
AU115-43-25R□-□□	430	115	250	423	108	236	Rubber feet	2.6	AUC43-25
AU115-43-30A□-□□	430	115	300	423	108	286	Aluminium feet	2.9	AUC43-30
AU115-43-30R□-□□	430	115	300	423	108	286	Rubber feet	2.9	AUC43-30
AU115-43-36A□-□□	430	115	360	423	108	346	Aluminium feet	3.3	AUC43-36
AU115-43-36R□-□□	430	115	360	423	108	346	Rubber feet	3.3	AUC43-36
AU115-43-43A□-□□	430	115	430	423	108	416	Aluminium feet	3.8	AUC43-43
AU115-43-43R□-□□	430	115	430	423	108	416	Rubber feet	3.8	AUC43-43
AU115-43-50A□-□□	430	115	500	423	108	486	Aluminium feet	4.2	AUC43-50
AU115-43-50R□-□□	430	115	500	423	108	486	Rubber feet	4.2	AUC43-50
AU115-50-30A□-□□	500	115	300	493	108	286	Aluminium feet	3.2	AUC50-30
AU115-50-30R□-□□	500	115	300	493	108	286	Rubber feet	3.2	AUC50-30
AU115-50-36A□-□□	500	115	360	493	108	346	Aluminium feet	3.7	AUC50-36
AU115-50-36R□-□□	500	115	360	493	108	346	Rubber feet	3.7	AUC50-36
AU115-50-43A□-□□	500	115	430	493	108	416	Aluminium feet	4.2	AUC50-43
AU115-50-43R□-□□	500	115	430	493	108	416	Rubber feet	4.2	AUC50-43
AU115-50-50A□-□□	500	115	500	493	108	486	Aluminium feet	4.7	AUC50-50
AU115-50-50R□-□□	500	115	500	493	108	486	Rubber feet	4.7	AUC50-50
AU133-16-16A□-□□	160	132.5	160	152	125.5	146	Aluminium feet	1.2	AUC16-16
AU133-16-16R□-□□	160	132.5	160	152	125.5	146	Rubber feet	1.2	AUC16-16
AU133-16-20A□-□□	160	132.5	200	152	125.5	186	Aluminium feet	1.4	AUC16-20
AU133-16-20R□-□□	160	132.5	200	152	125.5	186	Rubber feet	1.4	AUC16-20
AU133-16-25A□-□□	160	132.5	250	152	125.5	236	Aluminium feet	1.6	AUC16-25
AU133-16-25R□-□□	160	132.5	250	152	125.5	236	Rubber feet	1.6	AUC16-25
AU133-16-30A□-□□	160	132.5	300	152	125.5	286	Aluminium feet	1.8	AUC16-30
AU133-16-30R□-□□	160	132.5	300	152	125.5	286	Rubber feet	1.8	AUC16-30
AU133-16-36A□-□□	160	132.5	360	152	125.5	346	Aluminium feet	2.1	AUC16-36
AU133-16-36R□-□□	160	132.5	360	152	125.5	346	Rubber feet	2.1	AUC16-36
AU133-16-43A□-□□	160	132.5	430	152	125.5	416	Aluminium feet	2.4	AUC16-43
AU133-16-43R□-□□	160	132.5	430	152	125.5	416	Rubber feet	2.4	AUC16-43
AU133-20-16A□-□□	200	132.5	160	192	125.5	146	Aluminium feet	1.3	AUC20-16
AU133-20-16R□-□□	200	132.5	160	192	125.5	146	Rubber feet	1.3	AUC20-16
AU133-20-20A□-□□	200	132.5	200	192	125.5	186	Aluminium feet	1.5	AUC20-20
AU133-20-20R□-□□	200	132.5	200	192	125.5	186	Rubber feet	1.5	AUC20-20
AU133-20-25A□-□□	200	132.5	250	192	125.5	236	Aluminium feet	1.7	AUC20-25
AU133-20-25R□-□□	200	132.5	250	192	125.5	236	Rubber feet	1.7	AUC20-25
AU133-20-30A□-□□	200	132.5	300	192	125.5	286	Aluminium feet	2	AUC20-30
AU133-20-30R□-□□	200	132.5	300	192	125.5	286	Rubber feet	2	AUC20-30
AU133-20-36A□-□□	200	132.5	360	192	125.5	346	Aluminium feet	2.3	AUC20-36
AU133-20-36R□-□□	200	132.5	360	192	125.5	346	Rubber feet	2.3	AUC20-36
AU133-20-43A□-□□	200	132.5	430	192	125.5	416	Aluminium feet	2.6	AUC20-43
AU133-20-43R□-□□	200	132.5	430	192	125.5	416	Rubber feet	2.6	AUC20-43
AU133-25-16A□-□□	250	132.5	160	242	125.5	146	Aluminium feet	1.5	AUC25-16
AU133-25-16R□-□□	250	132.5	160	242	125.5	146	Rubber feet	1.5	AUC25-16
AU133-25-20A□-□□	250	132.5	200	242	125.5	186	Aluminium feet	1.7	AUC25-20
AU133-25-20R□-□□	250	132.5	200	242	125.5	186	Rubber feet	1.7	AUC25-20
AU133-25-25A□-□□	250	132.5	250	242	125.5	236	Aluminium feet	2	AUC25-25
AU133-25-25R□-□□	250	132.5	250	242	125.5	236	Rubber feet	2	AUC25-25
AU133-25-30A□-□□	250	132.5	300	242	125.5	286	Aluminium feet	2.2	AUC25-30
AU133-25-30R□-□□	250	132.5	300	242	125.5	286	Rubber feet	2.2	AUC25-30
AU133-25-36A□-□□	250	132.5	360	242	125.5	346	Aluminium feet	2.6	AUC25-36
AU133-25-36R□-□□	250	132.5	360	242	125.5	346	Rubber feet	2.6	AUC25-36
AU133-25-43A□-□□	250	132.5	430	242	125.5	416	Aluminium feet	3	AUC25-43
AU133-25-43R□-□□	250	132.5	430	242	125.5	416	Rubber feet	3	AUC25-43
AU133-30-16A□-□□	300	132.5	160	292	125.5	146	Aluminium feet	1.7	AUC30-16
AU133-30-16R□-□□	300	132.5	160	292	125.5	146	Rubber feet	1.7	AUC30-16
AU133-30-20A□-□□	300	132.5	200	292	125.5	186	Aluminium feet	1.9	AUC30-20
AU133-30-20R□-□□	300	132.5	200	292	125.5	186	Rubber feet	1.9	AUC30-20
AU133-30-25A□-□□	300	132.5	250	292	125.5	236	Aluminium feet	2.2	AUC30-25
AU133-30-25R□-□□	300	132.5	250	292	125.5	236	Rubber feet	2.2	AUC30-25
AU133-30-30A□-□□	300	132.5	300	292	125.5	286	Aluminium feet	2.5	AUC30-30
AU133-30-30R□-□□	300	132.5	300	292	125.5	286	Rubber feet	2.5	AUC30-30
AU133-30-36A□-□□	300	132.5	360	292	125.5	346	Aluminium feet	2.8	AUC30-36
AU133-30-36R□-□□	300	132.5	360	292	125.5	346	Rubber feet	2.8	AUC30-36
AU133-30-43A□-□□	300	132.5	430	292	125.5	416	Aluminium feet	3.3	AUC30-43
AU133-30-43R□-□□	300	132.5	430	292	125.5	416	Rubber feet	3.3	AUC30-43
AU133-30-50A□-□□	300	132.5	500	292	125.5	486	Aluminium feet	3.7	AUC30-50
AU133-30-50R□-□□	300	132.5	500	292	125.5	486	Rubber feet	3.7	AUC30-50
AU133-36-16A□-□□	360	132.5	160	352	125.5	146	Aluminium feet	1.9	AUC36-16
AU133-36-16R□-□□	360	132.5	160	352	125.5	146	Rubber feet	1.9	AUC36-16
AU133-36-20A□-□□	360	132.5	200	352	125.5	186	Aluminium feet	2.1	AUC36-20
AU133-36-20R□-□□	360	132.5	200	352	125.5	186	Rubber feet	2.1	AUC36-20
AU133-36-25A□-□□	360	132.5	250	352	125.5	236	Aluminium feet	2.5	AUC36-25
AU133-36-25R□-□□	360	132.5	250	352	125.5	236	Rubber feet	2.5	AUC36-25
AU133-36-30A□-□□	360	132.5	300	352	125.5	286	Aluminium feet	2.8	AUC36-30
AU133-36-30R□-□□	360	132.5	300	352	125.5	286	Rubber feet	2.8	AUC36-30
AU133-36-36A□-□□	360	132.5	360	352	125.5	346	Aluminium feet	3.2	AUC36-36
AU133-36-36R□-□□	360	132.5	360	352	125.5	346	Rubber feet	3.2	AUC36-36
AU133-36-43A□-□□	360	132.5	430	352	125.5	416	Aluminium feet	3.7	AUC36-43
AU133-36-43R□-□□	360	132.5	430	352	125.5	416	Rubber feet	3.7	AUC36-43
AU133-36-50A□-□□	360	132.5	500	352	125.5	486	Aluminium feet	4.1	AUC36-50
AU133-36-50R□-□□	360	132.5	500	352	125.5	486	Rubber feet	4.1	AUC36-50
AU133-43-16A□-□□	430	132.5	160	422	125.5	146	Aluminium feet	2.2	AUC43-16
AU133-43-16R□-□□	430	132.5	160	422	125.5	146	Rubber feet	2.2	AUC43-16
AU133-43-20A□-□□	430	132.5	200	422	125.5	186	Aluminium feet	2.4	AUC43-20
AU133-43-20R□-□□	430	132.5	200	422	125.5	186	Rubber feet	2.4	AUC43-20
AU133-43-25A□-□□	430	132.5	250	422	125.5	236	Aluminium feet	2.8	AUC43-25
AU133-43-25R□-□□	430	132.5	250	422	125.5	236	Rubber feet	2.8	AUC43-25
AU133-43-30A□-□□	430	132.5	300	422	125.5	286	Aluminium feet	3.2	AUC43-30
AU133-43-30R□-□□	430	132.5	300	422	125.5	286	Rubber feet	3.2	AUC43-30
AU133-43-36A□-□□	430	132.5	360	422	125.5	346	Aluminium feet	3.6	AUC43-36
AU133-43-36R□-□□	430	132.5	360	422	125.5	346	Rubber feet	3.6	AUC43-36
AU133-43-43A□-□□	430	132.5	430	422	125.5	416	Aluminium feet	4.1	AUC43-43
AU133-43-43R□-□□	430	132.5	430	422	125.5	416	Rubber feet	4.1	AUC43-43
AU133-43-50A□-□□	430	132.5	500	422	125.5	486	Aluminium feet	4.6	AUC43-50
AU133-43-50R□-□□	430	132.5	500	422	125.5	486	Rubber feet	4.6	AUC43-50
AU133-50-30A□-□□	500	132.5	300	492	125.5	286	Aluminium feet	3.5	AUC50-30
AU133-50-30R□-□□	500	132.5	300	492	125.5	286	Rubber feet	3.5	AUC50-30
AU133-50-36A□-□□	500	132.5	360	492	125.5	346	Aluminium feet	4	AUC50-36
AU133-50-36R□-□□	500	132.5	360	492	125.5	346	Rubber feet	4	AUC50-36
AU133-50-43A□-□□	500	132.5	430	492	125.5	416	Aluminium feet	4.6	AUC50-43
AU133-50-43R□-□□	500	132.5	430	492	125.5	416	Rubber feet	4.6	AUC50-43
AU133-50-50A□-□□	500	132.5	500	492	125.5	486	Aluminium feet	5.1	AUC50-50
AU133-50-50R□-□□	500	132.5	500	492	125.5	486	Rubber feet	5.1	AUC50-50
AU149-16-16A□-□□	160	149	160	152	142	146	Aluminium feet	1.2	AUC16-16
AU149-16-16R□-□□	160	149	160	152	142	146	Rubber feet	1.2	AUC16-16
AU149-16-20A□-□□	160	149	200	152	142	186	Aluminium feet	1.4	AUC16-20
AU149-16-20R□-□□	160	149	200	152	142	186	Rubber feet	1.4	AUC16-20
AU149-16-25A□-□□	160	149	250	152	142	236	Aluminium feet	1.6	AUC16-25
AU149-16-25R□-□□	160	149	250	152	142	236	Rubber feet	1.6	AUC16-25
AU149-16-30A□-□□	160	149	300	152	142	286	Aluminium feet	1.9	AUC16-30
AU149-16-30R□-□□	160	149	300	152	142	286	Rubber feet	1.9	AUC16-30
AU149-16-36A□-□□	160	149	360	152	142	346	Aluminium feet	2.1	AUC16-36
AU149-16-36R□-□□	160	149	360	152	142	346	Rubber feet	2.1	AUC16-36
AU149-16-43A□-□□	160	149	430	152	142	416	Aluminium feet	2.5	AUC16-43
AU149-16-43R□-□□	160	149	430	152	142	416	Rubber feet	2.5	AUC16-43
AU149-20-16A□-□□	200	149	160	192	142	146	Aluminium feet	1.4	AUC20-16
AU149-20-16R□-□□	200	149	160	192	142	146	Rubber feet	1.4	AUC20-16
AU149-20-20A□-□□	200	149	200	192	142	186	Aluminium feet	1.6	AUC20-20
AU149-20-20R□-□□	200	149	200	192	142	186	Rubber feet	1.6	AUC20-20
AU149-20-25A□-□□	200	149	250	192	142	236	Aluminium feet	1.8	AUC20-25
AU149-20-25R□-□□	200	149	250	192	142	236	Rubber feet	1.8	AUC20-25
AU149-20-30A□-□□	200	149	300	192	142	286	Aluminium feet	2.1	AUC20-30
AU149-20-30R□-□□	200	149	300	192	142	286	Rubber feet	2.1	AUC20-30
AU149-20-36A□-□□	200	149	360	192	142	346	Aluminium feet	2.4	AUC20-36
AU149-20-36R□-□□	200	149	360	192	142	346	Rubber feet	2.4	AUC20-36
AU149-20-43A□-□□	200	149	430	192	142	416	Aluminium feet	2.7	AUC20-43
AU149-20-43R□-□□	200	149	430	192	142	416	Rubber feet	2.7	AUC20-43
AU149-25-16A□-□□	250	149	160	242	142	146	Aluminium feet	1.5	AUC25-16
AU149-25-16R□-□□	250	149	160	242	142	146	Rubber feet	1.5	AUC25-16
AU149-25-20A□-□□	250	149	200	242	142	186	Aluminium feet	1.8	AUC25-20
AU149-25-20R□-□□	250	149	200	242	142	186	Rubber feet	1.8	AUC25-20
AU149-25-25A□-□□	250	149	250	242	142	236	Aluminium feet	2	AUC25-25
AU149-25-25R□-□□	250	149	250	242	142	236	Rubber feet	2	AUC25-25
AU149-25-30A□-□□	250	149	300	242	142	286	Aluminium feet	2.3	AUC25-30
AU149-25-30R□-□□	250	149	300	242	142	286	Rubber feet	2.3	AUC25-30
AU149-25-36A□-□□	250	149	360	242	142	346	Aluminium feet	2.7	AUC25-36
AU149-25-36R□-□□	250	149	360	242	142	346	Rubber feet	2.7	AUC25-36
AU149-25-43A□-□□	250	149	430	242	142	416	Aluminium feet	3.1	AUC25-43
AU149-25-43R□-□□	250	149	430	242	142	416	Rubber feet	3.1	AUC25-43
AU149-30-16A□-□□	300	149	160	292	142	146	Aluminium feet	1.7	AUC30-16
AU149-30-16R□-□□	300	149	160	292	142	146	Rubber feet	1.7	AUC30-16
AU149-30-20A□-□□	300	149	200	292	142	186	Aluminium feet	2	AUC30-20
AU149-30-20R□-□□	300	149	200	292	142	186	Rubber feet	2	AUC30-20
AU149-30-25A□-□□	300	149	250	292	142	236	Aluminium feet	2.3	AUC30-25
AU149-30-25R□-□□	300	149	250	292	142	236	Rubber feet	2.3	AUC30-25
AU149-30-30A□-□□	300	149	300	292	142	286	Aluminium feet	2.6	AUC30-30
AU149-30-30R□-□□	300	149	300	292	142	286	Rubber feet	2.6	AUC30-30
AU149-30-36A□-□□	300	149	360	292	142	346	Aluminium feet	2.9	AUC30-36
AU149-30-36R□-□□	300	149	360	292	142	346	Rubber feet	2.9	AUC30-36
AU149-30-43A□-□□	300	149	430	292	142	416	Aluminium feet	3.4	AUC30-43
AU149-30-43R□-□□	300	149	430	292	142	416	Rubber feet	3.4	AUC30-43
AU149-30-50A□-□□	300	149	500	292	142	486	Aluminium feet	3.8	AUC30-50
AU149-30-50R□-□□	300	149	500	292	142	486	Rubber feet	3.8	AUC30-50
AU149-36-16A□-□□	360	149	160	352	142	146	Aluminium feet	1.9	AUC36-16
AU149-36-16R□-□□	360	149	160	352	142	146	Rubber feet	1.9	AUC36-16
AU149-36-20A□-□□	360	149	200	352	142	186	Aluminium feet	2.2	AUC36-20
AU149-36-20R□-□□	360	149	200	352	142	186	Rubber feet	2.2	AUC36-20
AU149-36-25A□-□□	360	149	250	352	142	236	Aluminium feet	2.5	AUC36-25
AU149-36-25R□-□□	360	149	250	352	142	236	Rubber feet	2.5	AUC36-25
AU149-36-30A□-□□	360	149	300	352	142	286	Aluminium feet	2.9	AUC36-30
AU149-36-30R□-□□	360	149	300	352	142	286	Rubber feet	2.9	AUC36-30
AU149-36-36A□-□□	360	149	360	352	142	346	Aluminium feet	3.3	AUC36-36
AU149-36-36R□-□□	360	149	360	352	142	346	Rubber feet	3.3	AUC36-36
AU149-36-43A□-□□	360	149	430	352	142	416	Aluminium feet	3.8	AUC36-43
AU149-36-43R□-□□	360	149	430	352	142	416	Rubber feet	3.8	AUC36-43
AU149-36-50A□-□□	360	149	500	352	142	486	Aluminium feet	4.3	AUC36-50
AU149-36-50R□-□□	360	149	500	352	142	486	Rubber feet	4.3	AUC36-50
AU149-43-16A□-□□	430	149	160	422	142	146	Aluminium feet	2.2	AUC43-16
AU149-43-16R□-□□	430	149	160	422	142	146	Rubber feet	2.2	AUC43-16
AU149-43-20A□-□□	430	149	200	422	142	186	Aluminium feet	2.5	AUC43-20
AU149-43-20R□-□□	430	149	200	422	142	186	Rubber feet	2.5	AUC43-20
AU149-43-25A□-□□	430	149	250	422	142	236	Aluminium feet	2.9	AUC43-25
AU149-43-25R□-□□	430	149	250	422	142	236	Rubber feet	2.9	AUC43-25
AU149-43-30A□-□□	430	149	300	422	142	286	Aluminium feet	3.3	AUC43-30
AU149-43-30R□-□□	430	149	300	422	142	286	Rubber feet	3.3	AUC43-30
AU149-43-36A□-□□	430	149	360	422	142	346	Aluminium feet	3.7	AUC43-36
AU149-43-36R□-□□	430	149	360	422	142	346	Rubber feet	3.7	AUC43-36
AU149-43-43A□-□□	430	149	430	422	142	416	Aluminium feet	4.2	AUC43-43
AU149-43-43R□-□□	430	149	430	422	142	416	Rubber feet	4.2	AUC43-43
AU149-43-50A□-□□	430	149	500	422	142	486	Aluminium feet	4.8	AUC43-50
AU149-43-50R□-□□	430	149	500	422	142	486	Rubber feet	4.8	AUC43-50
AU149-50-30A□-□□	500	149	300	492	142	286	Aluminium feet	3.6	AUC50-30
AU149-50-30R□-□□	500	149	300	492	142	286	Rubber feet	3.6	AUC50-30
AU149-50-36A□-□□	500	149	360	492	142	346	Aluminium feet	4.1	AUC50-36
AU149-50-36R□-□□	500	149	360	492	142	346	Rubber feet	4.1	AUC50-36
AU149-50-43A□-□□	500	149	430	492	142	416	Aluminium feet	4.7	AUC50-43
AU149-50-43R□-□□	500	149	430	492	142	416	Rubber feet	4.7	AUC50-43
AU149-50-50A□-□□	500	149	500	492	142	486	Aluminium feet	5.3	AUC50-50
AU149-50-50R□-□□	500	149	500	492	142	486	Rubber feet	5.3	AUC50-50
AU177-16-16A□-□□	160	177	160	152	170	146	Aluminium feet	1.4	AUC16-16
AU177-16-16R□-□□	160	177	160	152	170	146	Rubber feet	1.4	AUC16-16
AU177-16-20A□-□□	160	177	200	152	170	186	Aluminium feet	1.6	AUC16-20
AU177-16-20R□-□□	160	177	200	152	170	186	Rubber feet	1.6	AUC16-20
AU177-16-25A□-□□	160	177	250	152	170	236	Aluminium feet	1.8	AUC16-25
AU177-16-25R□-□□	160	177	250	152	170	236	Rubber feet	1.8	AUC16-25
AU177-16-30A□-□□	160	177	300	152	170	286	Aluminium feet	2.1	AUC16-30
AU177-16-30R□-□□	160	177	300	152	170	286	Rubber feet	2.1	AUC16-30
AU177-16-36A□-□□	160	177	360	152	170	346	Aluminium feet	2.4	AUC16-36
AU177-16-36R□-□□	160	177	360	152	170	346	Rubber feet	2.4	AUC16-36
AU177-16-43A□-□□	160	177	430	152	170	416	Aluminium feet	2.7	AUC16-43
AU177-16-43R□-□□	160	177	430	152	170	416	Rubber feet	2.7	AUC16-43
AU177-20-16A□-□□	200	177	160	192	170	146	Aluminium feet	1.5	AUC20-16
AU177-20-16R□-□□	200	177	160	192	170	146	Rubber feet	1.5	AUC20-16
AU177-20-20A□-□□	200	177	200	192	170	186	Aluminium feet	1.7	AUC20-20
AU177-20-20R□-□□	200	177	200	192	170	186	Rubber feet	1.7	AUC20-20
AU177-20-25A□-□□	200	177	250	192	170	236	Aluminium feet	2	AUC20-25
AU177-20-25R□-□□	200	177	250	192	170	236	Rubber feet	2	AUC20-25
AU177-20-30A□-□□	200	177	300	192	170	286	Aluminium feet	2.3	AUC20-30
AU177-20-30R□-□□	200	177	300	192	170	286	Rubber feet	2.3	AUC20-30
AU177-20-36A□-□□	200	177	360	192	170	346	Aluminium feet	2.6	AUC20-36
AU177-20-36R□-□□	200	177	360	192	170	346	Rubber feet	2.6	AUC20-36
AU177-20-43A□-□□	200	177	430	192	170	416	Aluminium feet	3	AUC20-43
AU177-20-43R□-□□	200	177	430	192	170	416	Rubber feet	3	AUC20-43
AU177-25-16A□-□□	250	177	160	242	170	146	Aluminium feet	1.7	AUC25-16
AU177-25-16R□-□□	250	177	160	242	170	146	Rubber feet	1.7	AUC25-16
AU177-25-20A□-□□	250	177	200	242	170	186	Aluminium feet	1.9	AUC25-20
AU177-25-20R□-□□	250	177	200	242	170	186	Rubber feet	1.9	AUC25-20
AU177-25-25A□-□□	250	177	250	242	170	236	Aluminium feet	2.2	AUC25-25
AU177-25-25R□-□□	250	177	250	242	170	236	Rubber feet	2.2	AUC25-25
AU177-25-30A□-□□	250	177	300	242	170	286	Aluminium feet	2.5	AUC25-30
AU177-25-30R□-□□	250	177	300	242	170	286	Rubber feet	2.5	AUC25-30
AU177-25-36A□-□□	250	177	360	242	170	346	Aluminium feet	2.9	AUC25-36
AU177-25-36R□-□□	250	177	360	242	170	346	Rubber feet	2.9	AUC25-36
AU177-25-43A□-□□	250	177	430	242	170	416	Aluminium feet	3.3	AUC25-43
AU177-25-43R□-□□	250	177	430	242	170	416	Rubber feet	3.3	AUC25-43
AU177-30-16A□-□□	300	177	160	292	170	146	Aluminium feet	1.9	AUC30-16
AU177-30-16R□-□□	300	177	160	292	170	146	Rubber feet	1.9	AUC30-16
AU177-30-20A□-□□	300	177	200	292	170	186	Aluminium feet	2.2	AUC30-20
AU177-30-20R□-□□	300	177	200	292	170	186	Rubber feet	2.2	AUC30-20
AU177-30-25A□-□□	300	177	250	292	170	236	Aluminium feet	2.5	AUC30-25
AU177-30-25R□-□□	300	177	250	292	170	236	Rubber feet	2.5	AUC30-25
AU177-30-30A□-□□	300	177	300	292	170	286	Aluminium feet	2.8	AUC30-30
AU177-30-30R□-□□	300	177	300	292	170	286	Rubber feet	2.8	AUC30-30
AU177-30-36A□-□□	300	177	360	292	170	346	Aluminium feet	3.2	AUC30-36
AU177-30-36R□-□□	300	177	360	292	170	346	Rubber feet	3.2	AUC30-36
AU177-30-43A□-□□	300	177	430	292	170	416	Aluminium feet	3.7	AUC30-43
AU177-30-43R□-□□	300	177	430	292	170	416	Rubber feet	3.7	AUC30-43
AU177-30-50A□-□□	300	177	500	292	170	486	Aluminium feet	4.1	AUC30-50
AU177-30-50R□-□□	300	177	500	292	170	486	Rubber feet	4.1	AUC30-50
AU177-36-16A□-□□	360	177	160	352	170	146	Aluminium feet	2.1	AUC36-16
AU177-36-16R□-□□	360	177	160	352	170	146	Rubber feet	2.1	AUC36-16
AU177-36-20A□-□□	360	177	200	352	170	186	Aluminium feet	2.4	AUC36-20
AU177-36-20R□-□□	360	177	200	352	170	186	Rubber feet	2.4	AUC36-20
AU177-36-25A□-□□	360	177	250	352	170	236	Aluminium feet	2.8	AUC36-25
AU177-36-25R□-□□	360	177	250	352	170	236	Rubber feet	2.8	AUC36-25
AU177-36-30A□-□□	360	177	300	352	170	286	Aluminium feet	3.1	AUC36-30
AU177-36-30R□-□□	360	177	300	352	170	286	Rubber feet	3.1	AUC36-30
AU177-36-36A□-□□	360	177	360	352	170	346	Aluminium feet	3.6	AUC36-36
AU177-36-36R□-□□	360	177	360	352	170	346	Rubber feet	3.6	AUC36-36
AU177-36-43A□-□□	360	177	430	352	170	416	Aluminium feet	4.1	AUC36-43
AU177-36-43R□-□□	360	177	430	352	170	416	Rubber feet	4.1	AUC36-43
AU177-36-50A□-□□	360	177	500	352	170	486	Aluminium feet	4.6	AUC36-50
AU177-36-50R□-□□	360	177	500	352	170	486	Rubber feet	4.6	AUC36-50
AU177-43-16A□-□□	430	177	160	422	170	146	Aluminium feet	2.4	AUC43-16
AU177-43-16R□-□□	430	177	160	422	170	146	Rubber feet	2.4	AUC43-16
AU177-43-20A□-□□	430	177	200	422	170	186	Aluminium feet	2.7	AUC43-20
AU177-43-20R□-□□	430	177	200	422	170	186	Rubber feet	2.7	AUC43-20
AU177-43-25A□-□□	430	177	250	422	170	236	Aluminium feet	3.1	AUC43-25
AU177-43-25R□-□□	430	177	250	422	170	236	Rubber feet	3.1	AUC43-25
AU177-43-30A□-□□	430	177	300	422	170	286	Aluminium feet	3.5	AUC43-30
AU177-43-30R□-□□	430	177	300	422	170	286	Rubber feet	3.5	AUC43-30
AU177-43-36A□-□□	430	177	360	422	170	346	Aluminium feet	4	AUC43-36
AU177-43-36R□-□□	430	177	360	422	170	346	Rubber feet	4	AUC43-36
AU177-43-43A□-□□	430	177	430	422	170	416	Aluminium feet	4.6	AUC43-43
AU177-43-43R□-□□	430	177	430	422	170	416	Rubber feet	4.6	AUC43-43
AU177-43-50A□-□□	430	177	500	422	170	486	Aluminium feet	5.1	AUC43-50
AU177-43-50R□-□□	430	177	500	422	170	486	Rubber feet	5.1	AUC43-50
AU177-50-30A□-□□	500	177	300	492	170	286	Aluminium feet	3.9	AUC50-30
AU177-50-30R□-□□	500	177	300	492	170	286	Rubber feet	3.9	AUC50-30
AU177-50-36A□-□□	500	177	360	492	170	346	Aluminium feet	4.4	AUC50-36
AU177-50-36R□-□□	500	177	360	492	170	346	Rubber feet	4.4	AUC50-36
AU177-50-43A□-□□	500	177	430	492	170	416	Aluminium feet	5	AUC50-43
AU177-50-43R□-□□	500	177	430	492	170	416	Rubber feet	5	AUC50-43
AU177-50-50A□-□□	500	177	500	492	170	486	Aluminium feet	5.6	AUC50-50
AU177-50-50R□-□□	500	177	500	492	170	486	Rubber feet	5.6	AUC50-50
AU222-16-16A□-□□	161	221.5	161	151	213.5	145	Aluminium feet	1.6	AUC16-16
AU222-16-16R□-□□	161	221.5	161	151	213.5	145	Rubber feet	1.6	AUC16-16
AU222-16-20A□-□□	161	221.5	201	151	213.5	185	Aluminium feet	1.8	AUC16-20
AU222-16-20R□-□□	161	221.5	201	151	213.5	185	Rubber feet	1.8	AUC16-20
AU222-16-25A□-□□	161	221.5	251	151	213.5	235	Aluminium feet	2.1	AUC16-25
AU222-16-25R□-□□	161	221.5	251	151	213.5	235	Rubber feet	2.1	AUC16-25
AU222-16-30A□-□□	161	221.5	301	151	213.5	285	Aluminium feet	2.4	AUC16-30
AU222-16-30R□-□□	161	221.5	301	151	213.5	285	Rubber feet	2.4	AUC16-30
AU222-16-36A□-□□	161	221.5	361	151	213.5	345	Aluminium feet	2.7	AUC16-36
AU222-16-36R□-□□	161	221.5	361	151	213.5	345	Rubber feet	2.7	AUC16-36
AU222-16-43A□-□□	161	221.5	431	151	213.5	415	Aluminium feet	3.2	AUC16-43
AU222-16-43R□-□□	161	221.5	431	151	213.5	415	Rubber feet	3.2	AUC16-43
AU222-20-16A□-□□	201	221.5	161	191	213.5	145	Aluminium feet	1.8	AUC20-16
AU222-20-16R□-□□	201	221.5	161	191	213.5	145	Rubber feet	1.8	AUC20-16
AU222-20-20A□-□□	201	221.5	201	191	213.5	185	Aluminium feet	2	AUC20-20
AU222-20-20R□-□□	201	221.5	201	191	213.5	185	Rubber feet	2	AUC20-20
AU222-20-25A□-□□	201	221.5	251	191	213.5	235	Aluminium feet	2.3	AUC20-25
AU222-20-25R□-□□	201	221.5	251	191	213.5	235	Rubber feet	2.3	AUC20-25
AU222-20-30A□-□□	201	221.5	301	191	213.5	285	Aluminium feet	2.6	AUC20-30
AU222-20-30R□-□□	201	221.5	301	191	213.5	285	Rubber feet	2.6	AUC20-30
AU222-20-36A□-□□	201	221.5	361	191	213.5	345	Aluminium feet	3	AUC20-36
AU222-20-36R□-□□	201	221.5	361	191	213.5	345	Rubber feet	3	AUC20-36
AU222-20-43A□-□□	201	221.5	431	191	213.5	415	Aluminium feet	3.4	AUC20-43
AU222-20-43R□-□□	201	221.5	431	191	213.5	415	Rubber feet	3.4	AUC20-43
AU222-25-16A□-□□	251	221.5	161	241	213.5	145	Aluminium feet	2	AUC25-16
AU222-25-16R□-□□	251	221.5	161	241	213.5	145	Rubber feet	2	AUC25-16
AU222-25-20A□-□□	251	221.5	201	241	213.5	185	Aluminium feet	2.2	AUC25-20
AU222-25-20R□-□□	251	221.5	201	241	213.5	185	Rubber feet	2.2	AUC25-20
AU222-25-25A□-□□	251	221.5	251	241	213.5	235	Aluminium feet	2.6	AUC25-25
AU222-25-25R□-□□	251	221.5	251	241	213.5	235	Rubber feet	2.6	AUC25-25
AU222-25-30A□-□□	251	221.5	301	241	213.5	285	Aluminium feet	2.9	AUC25-30
AU222-25-30R□-□□	251	221.5	301	241	213.5	285	Rubber feet	2.9	AUC25-30
AU222-25-36A□-□□	251	221.5	361	241	213.5	345	Aluminium feet	3.3	AUC25-36
AU222-25-36R□-□□	251	221.5	361	241	213.5	345	Rubber feet	3.3	AUC25-36
AU222-25-43A□-□□	251	221.5	431	241	213.5	415	Aluminium feet	3.8	AUC25-43
AU222-25-43R□-□□	251	221.5	431	241	213.5	415	Rubber feet	3.8	AUC25-43
AU222-30-16A□-□□	301	221.5	161	291	213.5	145	Aluminium feet	2.2	AUC30-16
AU222-30-16R□-□□	301	221.5	161	291	213.5	145	Rubber feet	2.2	AUC30-16
AU222-30-20A□-□□	301	221.5	201	291	213.5	185	Aluminium feet	2.5	AUC30-20
AU222-30-20R□-□□	301	221.5	201	291	213.5	185	Rubber feet	2.5	AUC30-20
AU222-30-25A□-□□	301	221.5	251	291	213.5	235	Aluminium feet	2.8	AUC30-25
AU222-30-25R□-□□	301	221.5	251	291	213.5	235	Rubber feet	2.8	AUC30-25
AU222-30-30A□-□□	301	221.5	301	291	213.5	285	Aluminium feet	3.2	AUC30-30
AU222-30-30R□-□□	301	221.5	301	291	213.5	285	Rubber feet	3.2	AUC30-30
AU222-30-36A□-□□	301	221.5	361	291	213.5	345	Aluminium feet	3.6	AUC30-36
AU222-30-36R□-□□	301	221.5	361	291	213.5	345	Rubber feet	3.6	AUC30-36
AU222-30-43A□-□□	301	221.5	431	291	213.5	415	Aluminium feet	4.2	AUC30-43
AU222-30-43R□-□□	301	221.5	431	291	213.5	415	Rubber feet	4.2	AUC30-43
AU222-30-50A□-□□	301	221.5	501	291	213.5	485	Aluminium feet	4.7	AUC30-50
AU222-30-50R□-□□	301	221.5	501	291	213.5	485	Rubber feet	4.7	AUC30-50
AU222-36-16A□-□□	361	221.5	161	351	213.5	145	Aluminium feet	2.4	AUC36-16
AU222-36-16R□-□□	361	221.5	161	351	213.5	145	Rubber feet	2.4	AUC36-16
AU222-36-20A□-□□	361	221.5	201	351	213.5	185	Aluminium feet	2.7	AUC36-20
AU222-36-20R□-□□	361	221.5	201	351	213.5	185	Rubber feet	2.7	AUC36-20
AU222-36-25A□-□□	361	221.5	251	351	213.5	235	Aluminium feet	3.1	AUC36-25
AU222-36-25R□-□□	361	221.5	251	351	213.5	235	Rubber feet	3.1	AUC36-25
AU222-36-30A□-□□	361	221.5	301	351	213.5	285	Aluminium feet	3.5	AUC36-30
AU222-36-30R□-□□	361	221.5	301	351	213.5	285	Rubber feet	3.5	AUC36-30
AU222-36-36A□-□□	361	221.5	361	351	213.5	345	Aluminium feet	4	AUC36-36
AU222-36-36R□-□□	361	221.5	361	351	213.5	345	Rubber feet	4	AUC36-36
AU222-36-43A□-□□	361	221.5	431	351	213.5	415	Aluminium feet	4.6	AUC36-43
AU222-36-43R□-□□	361	221.5	431	351	213.5	415	Rubber feet	4.6	AUC36-43
AU222-36-50A□-□□	361	221.5	501	351	213.5	485	Aluminium feet	5.1	AUC36-50
AU222-36-50R□-□□	361	221.5	501	351	213.5	485	Rubber feet	5.1	AUC36-50
AU222-43-16A□-□□	431	221.5	161	421	213.5	145	Aluminium feet	2.7	AUC43-16
AU222-43-16R□-□□	431	221.5	161	421	213.5	145	Rubber feet	2.7	AUC43-16
AU222-43-20A□-□□	431	221.5	201	421	213.5	185	Aluminium feet	3.1	AUC43-20
AU222-43-20R□-□□	431	221.5	201	421	213.5	185	Rubber feet	3.1	AUC43-20
AU222-43-25A□-□□	431	221.5	251	421	213.5	235	Aluminium feet	3.5	AUC43-25
AU222-43-25R□-□□	431	221.5	251	421	213.5	235	Rubber feet	3.5	AUC43-25
AU222-43-30A□-□□	431	221.5	301	421	213.5	285	Aluminium feet	4	AUC43-30
AU222-43-30R□-□□	431	221.5	301	421	213.5	285	Rubber feet	4	AUC43-30
AU222-43-36A□-□□	431	221.5	361	421	213.5	345	Aluminium feet	4.5	AUC43-36
AU222-43-36R□-□□	431	221.5	361	421	213.5	345	Rubber feet	4.5	AUC43-36
AU222-43-43A□-□□	431	221.5	431	421	213.5	415	Aluminium feet	5.1	AUC43-43
AU222-43-43R□-□□	431	221.5	431	421	213.5	415	Rubber feet	5.1	AUC43-43
AU222-43-50A□-□□	431	221.5	501	421	213.5	485	Aluminium feet	5.7	AUC43-50
AU222-43-50R□-□□	431	221.5	501	421	213.5	485	Rubber feet	5.7	AUC43-50
AU222-50-30A□-□□	501	221.5	301	491	213.5	285	Aluminium feet	4.4	AUC50-30
AU222-50-30R□-□□	501	221.5	301	491	213.5	285	Rubber feet	4.4	AUC50-30
AU222-50-36A□-□□	501	221.5	361	491	213.5	345	Aluminium feet	4.9	AUC50-36
AU222-50-36R□-□□	501	221.5	361	491	213.5	345	Rubber feet	4.9	AUC50-36
AU222-50-43A□-□□	501	221.5	431	491	213.5	415	Aluminium feet	5.6	AUC50-43
AU222-50-43R□-□□	501	221.5	431	491	213.5	415	Rubber feet	5.6	AUC50-43
AU222-50-50A□-□□	501	221.5	501	491	213.5	485	Aluminium feet	6.2	AUC50-50
AU222-50-50R□-□□	501	221.5	501	491	213.5	485	Rubber feet	6.2	AUC50-50
AU266-16-16A□-□□	161	265.9	161	150	257.9	145	Aluminium feet	1.9	AUC16-16
AU266-16-16R□-□□	161	265.9	161	150	257.9	145	Rubber feet	1.9	AUC16-16
AU266-16-20A□-□□	161	265.9	201	150	257.9	185	Aluminium feet	2.2	AUC16-20
AU266-16-20R□-□□	161	265.9	201	150	257.9	185	Rubber feet	2.2	AUC16-20
AU266-16-25A□-□□	161	265.9	251	150	257.9	235	Aluminium feet	2.5	AUC16-25
AU266-16-25R□-□□	161	265.9	251	150	257.9	235	Rubber feet	2.5	AUC16-25
AU266-16-30A□-□□	161	265.9	301	150	257.9	285	Aluminium feet	2.9	AUC16-30
AU266-16-30R□-□□	161	265.9	301	150	257.9	285	Rubber feet	2.9	AUC16-30
AU266-16-36A□-□□	161	265.9	361	150	257.9	345	Aluminium feet	3.3	AUC16-36
AU266-16-36R□-□□	161	265.9	361	150	257.9	345	Rubber feet	3.3	AUC16-36
AU266-16-43A□-□□	161	265.9	431	150	257.9	415	Aluminium feet	3.8	AUC16-43
AU266-16-43R□-□□	161	265.9	431	150	257.9	415	Rubber feet	3.8	AUC16-43
AU266-20-16A□-□□	201	265.9	161	190	257.9	145	Aluminium feet	2.1	AUC20-16
AU266-20-16R□-□□	201	265.9	161	190	257.9	145	Rubber feet	2.1	AUC20-16
AU266-20-20A□-□□	201	265.9	201	190	257.9	185	Aluminium feet	2.4	AUC20-20
AU266-20-20R□-□□	201	265.9	201	190	257.9	185	Rubber feet	2.4	AUC20-20
AU266-20-25A□-□□	201	265.9	251	190	257.9	235	Aluminium feet	2.7	AUC20-25
AU266-20-25R□-□□	201	265.9	251	190	257.9	235	Rubber feet	2.7	AUC20-25
AU266-20-30A□-□□	201	265.9	301	190	257.9	285	Aluminium feet	3.1	AUC20-30
AU266-20-30R□-□□	201	265.9	301	190	257.9	285	Rubber feet	3.1	AUC20-30
AU266-20-36A□-□□	201	265.9	361	190	257.9	345	Aluminium feet	3.6	AUC20-36
AU266-20-36R□-□□	201	265.9	361	190	257.9	345	Rubber feet	3.6	AUC20-36
AU266-20-43A□-□□	201	265.9	431	190	257.9	415	Aluminium feet	4.1	AUC20-43
AU266-20-43R□-□□	201	265.9	431	190	257.9	415	Rubber feet	4.1	AUC20-43
AU266-25-16A□-□□	251	265.9	161	240	257.9	145	Aluminium feet	2.3	AUC25-16
AU266-25-16R□-□□	251	265.9	161	240	257.9	145	Rubber feet	2.3	AUC25-16
AU266-25-20A□-□□	251	265.9	201	240	257.9	185	Aluminium feet	2.6	AUC25-20
AU266-25-20R□-□□	251	265.9	201	240	257.9	185	Rubber feet	2.6	AUC25-20
AU266-25-25A□-□□	251	265.9	251	240	257.9	235	Aluminium feet	3	AUC25-25
AU266-25-25R□-□□	251	265.9	251	240	257.9	235	Rubber feet	3	AUC25-25
AU266-25-30A□-□□	251	265.9	301	240	257.9	285	Aluminium feet	3.4	AUC25-30
AU266-25-30R□-□□	251	265.9	301	240	257.9	285	Rubber feet	3.4	AUC25-30
AU266-25-36A□-□□	251	265.9	361	240	257.9	345	Aluminium feet	3.9	AUC25-36
AU266-25-36R□-□□	251	265.9	361	240	257.9	345	Rubber feet	3.9	AUC25-36
AU266-25-43A□-□□	251	265.9	431	240	257.9	415	Aluminium feet	4.5	AUC25-43
AU266-25-43R□-□□	251	265.9	431	240	257.9	415	Rubber feet	4.5	AUC25-43
AU266-30-16A□-□□	301	265.9	161	290	257.9	145	Aluminium feet	2.5	AUC30-16
AU266-30-16R□-□□	301	265.9	161	290	257.9	145	Rubber feet	2.5	AUC30-16
AU266-30-20A□-□□	301	265.9	201	290	257.9	185	Aluminium feet	2.9	AUC30-20
AU266-30-20R□-□□	301	265.9	201	290	257.9	185	Rubber feet	2.9	AUC30-20
AU266-30-25A□-□□	301	265.9	251	290	257.9	235	Aluminium feet	3.3	AUC30-25
AU266-30-25R□-□□	301	265.9	251	290	257.9	235	Rubber feet	3.3	AUC30-25
AU266-30-30A□-□□	301	265.9	301	290	257.9	285	Aluminium feet	3.7	AUC30-30
AU266-30-30R□-□□	301	265.9	301	290	257.9	285	Rubber feet	3.7	AUC30-30
AU266-30-36A□-□□	301	265.9	361	290	257.9	345	Aluminium feet	4.2	AUC30-36
AU266-30-36R□-□□	301	265.9	361	290	257.9	345	Rubber feet	4.2	AUC30-36
AU266-30-43A□-□□	301	265.9	431	290	257.9	415	Aluminium feet	4.9	AUC30-43
AU266-30-43R□-□□	301	265.9	431	290	257.9	415	Rubber feet	4.9	AUC30-43
AU266-30-50A□-□□	301	265.9	501	290	257.9	485	Aluminium feet	5.5	AUC30-50
AU266-30-50R□-□□	301	265.9	501	290	257.9	485	Rubber feet	5.5	AUC30-50
AU266-36-16A□-□□	361	265.9	161	350	257.9	145	Aluminium feet	2.8	AUC36-16
AU266-36-16R□-□□	361	265.9	161	350	257.9	145	Rubber feet	2.8	AUC36-16
AU266-36-20A□-□□	361	265.9	201	350	257.9	185	Aluminium feet	3.2	AUC36-20
AU266-36-20R□-□□	361	265.9	201	350	257.9	185	Rubber feet	3.2	AUC36-20
AU266-36-25A□-□□	361	265.9	251	350	257.9	235	Aluminium feet	3.6	AUC36-25
AU266-36-25R□-□□	361	265.9	251	350	257.9	235	Rubber feet	3.6	AUC36-25
AU266-36-30A□-□□	361	265.9	301	350	257.9	285	Aluminium feet	4.1	AUC36-30
AU266-36-30R□-□□	361	265.9	301	350	257.9	285	Rubber feet	4.1	AUC36-30
AU266-36-36A□-□□	361	265.9	361	350	257.9	345	Aluminium feet	4.6	AUC36-36
AU266-36-36R□-□□	361	265.9	361	350	257.9	345	Rubber feet	4.6	AUC36-36
AU266-36-43A□-□□	361	265.9	431	350	257.9	415	Aluminium feet	5.3	AUC36-43
AU266-36-43R□-□□	361	265.9	431	350	257.9	415	Rubber feet	5.3	AUC36-43
AU266-36-50A□-□□	361	265.9	501	350	257.9	485	Aluminium feet	6	AUC36-50
AU266-36-50R□-□□	361	265.9	501	350	257.9	485	Rubber feet	6	AUC36-50
AU266-43-16A□-□□	431	265.9	161	420	257.9	145	Aluminium feet	3.1	AUC43-16
AU266-43-16R□-□□	431	265.9	161	420	257.9	145	Rubber feet	3.1	AUC43-16
AU266-43-20A□-□□	431	265.9	201	420	257.9	185	Aluminium feet	3.5	AUC43-20
AU266-43-20R□-□□	431	265.9	201	420	257.9	185	Rubber feet	3.5	AUC43-20
AU266-43-25A□-□□	431	265.9	251	420	257.9	235	Aluminium feet	4	AUC43-25
AU266-43-25R□-□□	431	265.9	251	420	257.9	235	Rubber feet	4	AUC43-25
AU266-43-30A□-□□	431	265.9	301	420	257.9	285	Aluminium feet	4.5	AUC43-30
AU266-43-30R□-□□	431	265.9	301	420	257.9	285	Rubber feet	4.5	AUC43-30
AU266-43-36A□-□□	431	265.9	361	420	257.9	345	Aluminium feet	5.1	AUC43-36
AU266-43-36R□-□□	431	265.9	361	420	257.9	345	Rubber feet	5.1	AUC43-36
AU266-43-43A□-□□	431	265.9	431	420	257.9	415	Aluminium feet	5.8	AUC43-43
AU266-43-43R□-□□	431	265.9	431	420	257.9	415	Rubber feet	5.8	AUC43-43
AU266-43-50A□-□□	431	265.9	501	420	257.9	485	Aluminium feet	6.6	AUC43-50
AU266-43-50R□-□□	431	265.9	501	420	257.9	485	Rubber feet	6.6	AUC43-50
AU266-50-30A□-□□	501	265.9	301	490	257.9	285	Aluminium feet	5	AUC50-30
AU266-50-30R□-□□	501	265.9	301	490	257.9	285	Rubber feet	5	AUC50-30
AU266-50-36A□-□□	501	265.9	361	490	257.9	345	Aluminium feet	5.6	AUC50-36
AU266-50-36R□-□□	501	265.9	361	490	257.9	345	Rubber feet	5.6	AUC50-36
AU266-50-43A□-□□	501	265.9	431	490	257.9	415	Aluminium feet	6.4	AUC50-43
AU266-50-43R□-□□	501	265.9	431	490	257.9	415	Rubber feet	6.4	AUC50-43
AU266-50-50A□-□□	501	265.9	501	490	257.9	485	Aluminium feet	7.1	AUC50-50

Optional parts

for series LCT

Similar products

for series LCT

Discover our entire product portfolio online!

In the Daub CNC catalog, you’ll find precision CNC components, current offers, and all technical details at a glance – always up to date and available anytime.

Präzision

Catalog

Video

Aluminium

Plastic

Processing

Cooling

Front

Handles

Series AU

ALUMINIUM ENCLOSURE

Series AU

Color

Feet / Screw

Dimensions

Components

Dimensions

Product no. / Dimensions

Optional parts

Series EM

Series EM

Series EM

Similar products

Series CSS

Series CSS

Series CSS

We don’t just build components – we build confidence.

Links

Legals

Contact
